1981 Yamaha SR185H (SR185H) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha SR185H (SR185H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

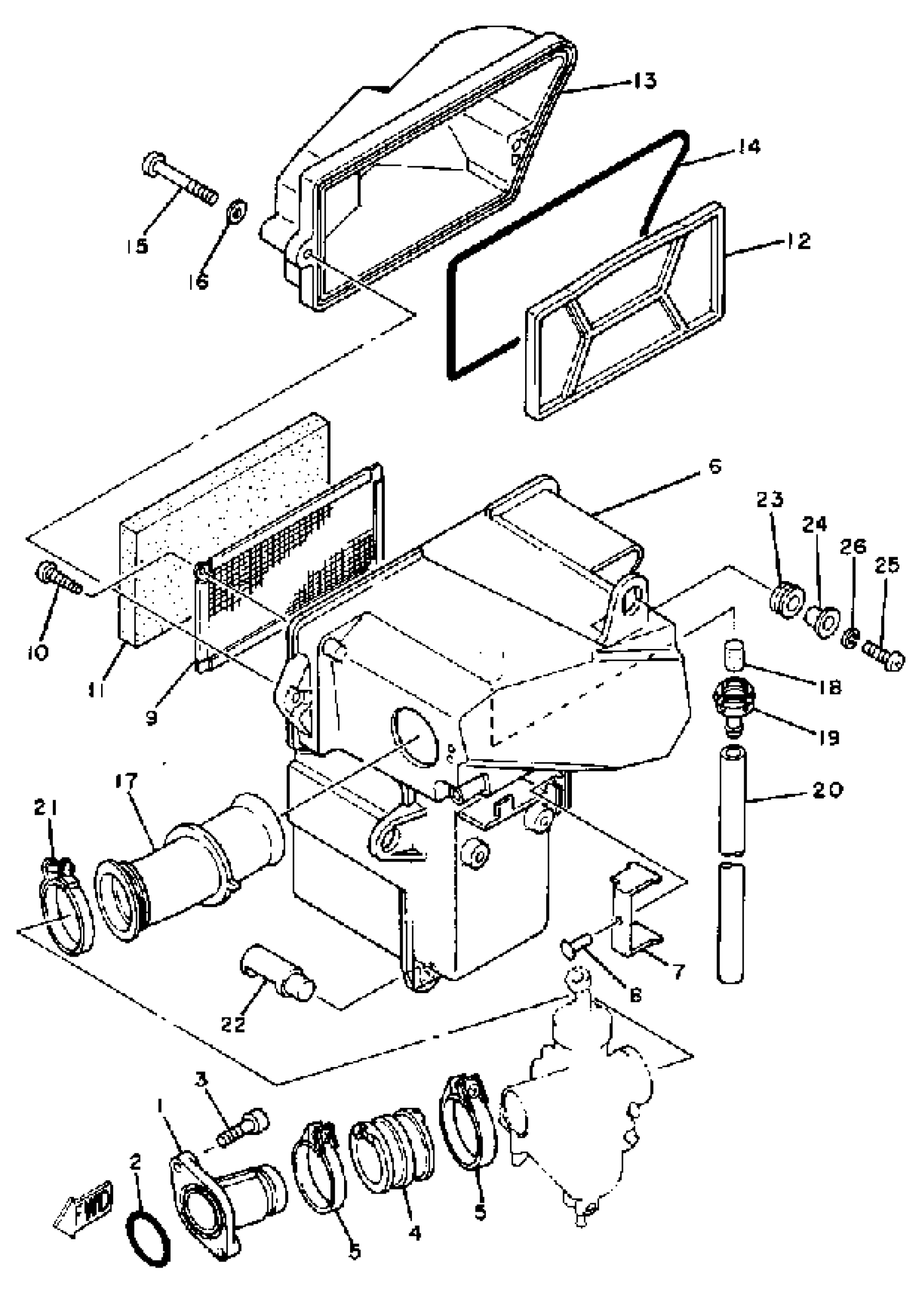

1981 Yamaha SR185H (SR185H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

5H0-13586-00-00

1
Out of stock

2

O-RING (5H0)

93210-34474-00

1

$5.02

In stock

3

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

4

JOINT, CARBURETOR 2

5H0-13596-00-00

—
Out of stock

5

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

6

CASE, AIR CLEANER 1

(5H0-14411-00-00)

1
Out of stock

7

BRACKET 1

(5H0-2172K-00-00)

1
Out of stock

8

RIVET,BLIND

90267-40080-00

1
Out of stock

9

PLATE, ELEMENT

5H0-14472-00-00

1
Out of stock

10

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

11

ELEMENT, AIR CLEANER

5H0-14451-00-00

1

$11.60

In stock

12

PLATE, ELEMENT FTNG

5H0-14468-00-00

1
Out of stock

13

CAP, CLEANER CASE 1

5H0-14412-00-00

1
Out of stock

14

SEAL

1VJ-14462-00-00

1

$16.08

In stock

15

SCREW, PAN HEAD

98580-05545-00

1

$5.86

In stock

16

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

17

JOINT, AIR CLNR 1

5H0-14453-00-00

1
Out of stock

18

SEAL

5H0-14462-00-00

1
Out of stock

19

PIPE

(5H0-14419-00-00)

1
Out of stock

20

HOSE

(90446-11176-00)

1
Out of stock

21

HOSE CLAMP ASSY(10F)

90450-45075-00

—

$4.15

In stock

22

DAMPER

(5H0-21746-00-00)

1
Out of stock

23

GROMMET (5H0)

90480-10297-00

—

$5.74

In stock

24

COLLAR (838-84757-00)

90387-06024-00

—
Out of stock

25

SCREW, PAN

98507-06014-00

—

$6.18

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
