1981 Yamaha SR185H (SR185H) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1981 Yamaha SR185H (SR185H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

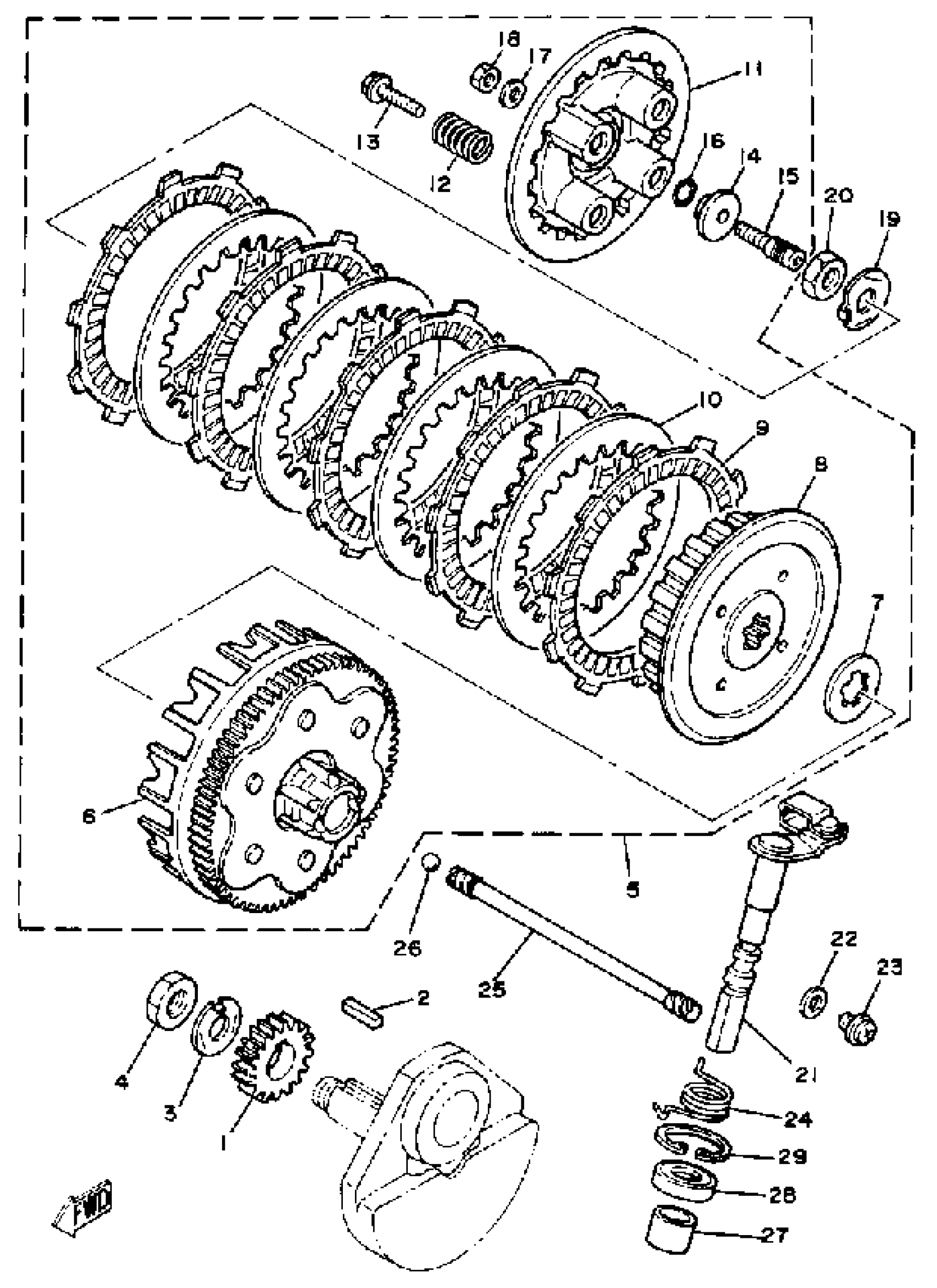

1981 Yamaha SR185H (SR185H) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

5H0-16111-00-00

—

$38.65

In stock

2

KEY, STRAIGHT (5H0)

90282-05043-00

1

$8.26

In stock

3

WASHER, LOCK (15Y)

90215-14205-00

1

$4.70

In stock

4

NUT (5H0)

90170-14284-00

1

$7.92

In stock

5

CLUTCH ASSEMBLY

(5H0-16300-01-00)

1
Out of stock

6

PRI DRVN GEAR

(5H0-16150-01-00)

1
Out of stock

7

PLATE, THRUST 1

5H0-16154-00-00

—
Out of stock

8

BOSS, CLUTCH

36X-16371-00-00

—
Out of stock

9

PLATE, FRICTION

537-16321-00-00

1

$15.04

In stock

10

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

11

PLATE, PRESSURE 1

5H0-16351-00-00

1

$37.03

In stock

12

SPRING, COMPRESSION (5H0)

90501-23630-00

1

$4.29

In stock

13

SCREW, WITH WASHER (537)

90159-05011-00

1

$2.45

In stock

14

PLATE, PUSH

1W1-16358-01-00

1

$20.06

In stock

15

ROD, PUSH 1

2JX-16356-00-00

—

$33.31

In stock

16

O-RING (2H7)

93210-48364-00

—

$6.17

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

WASHER, LOCK (25G)

90215-14186-00

—

$7.83

In stock

20

NUT (5H0)

90170-14284-00

1

$7.92

In stock

21

PUSH LEVER ASSEMBLY

(5H0-16380-01-00)

1
Out of stock

22

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

23

SCREW 425163430000

90149-08067-00

—

$4.54

In stock

24

SPRING, TORSION

90508-18495-00

—

$5.62

In stock

25

ROD, PUSH 2

5H0-16357-00-00

—

$31.57

In stock

26

BALL

93505-16006-00

—

$2.22

In stock

27

BUSH (5H0)

90386-14103-00

—

$9.29

In stock

28

OIL SEAL (3Y1)

93102-14209-00

—

$9.77

In stock

29

CIRCLIP (3Y1)

93420-28055-00

—

$6.89

In stock
