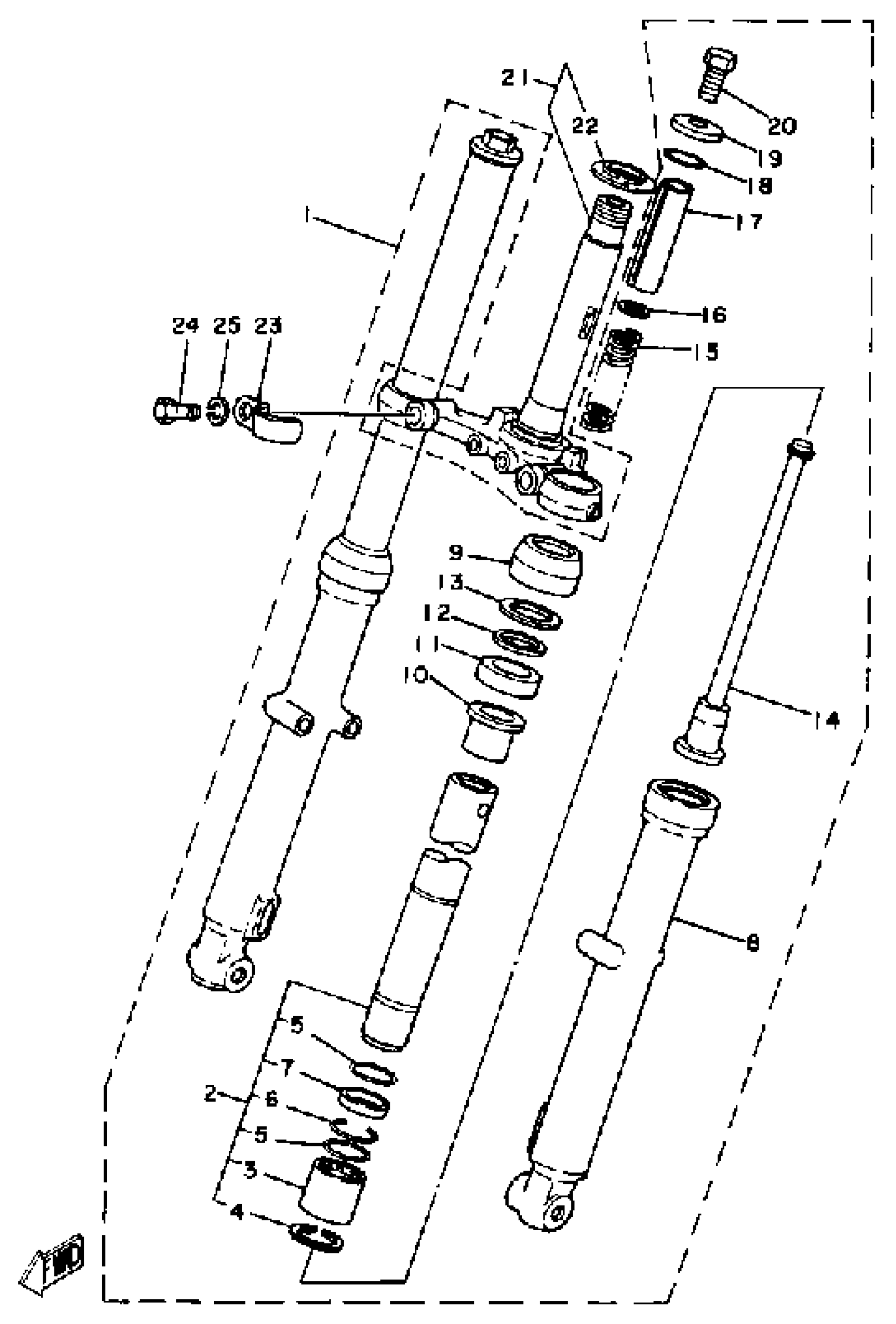

Yamaha SR185H (SR185H) 1981 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

5H0-23102-00-00

Unavailable

2

INNER TUBE 1

99999-02298-00

Unavailable

3

. FREE-PSTN, FRT FORKFRONT FORK

5H0-23189-00-00

Unavailable

4

. CIRCLIP, OUTER

93440-27091-00

Unavailable

5

. CIRCLIP, OUTER

93440-28092-00

Unavailable

6

CIRCLIP, OUTER

(93440-29094-00)

Unavailable

7

. COLLAR

5H0-23113-00-00

Unavailable

8

TUBE, OUTER 1

(5H0-23126-00-38)

Unavailable

9

SEAL, DUST

5H0-23144-00-00

Unavailable

10

. METAL, SLIDE 1

5H0-23125-00-00

Unavailable

11

OIL SEAL (10W)

93110-30013-00

Unavailable

12

. WASHER, OIL SEAL

5H0-23146-00-00

Unavailable

13

CIRCLIP(5U8)

99009-42500-00

$8.49

14

CYLINDER, FRTFRK

(5H0-23170-00-00)

Unavailable

15

SPRING, FRONT FORK

(5H0-23141-00-00)

Unavailable

16

WASHER, PLATE

(90201-133E5-00)

Unavailable

17

SPACER

(5H0-23118-00-00)

Unavailable

18

. O-RING

93210-10486-00

Unavailable

19

. WASHER, PLATE

90201-103E6-00

Unavailable

20

BOLT

90101-10513-00

Unavailable

21

UNDER BRACKET

(5H0-23340-00-R4)

Unavailable

22

RACE, BALL 1

B6E-23411-00-00

Unavailable

23

HOLDER, CABLE 1

(5H0-23318-00-00)

Unavailable

24

BOLT(N02)

97070-10035-00

Unavailable

25

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
