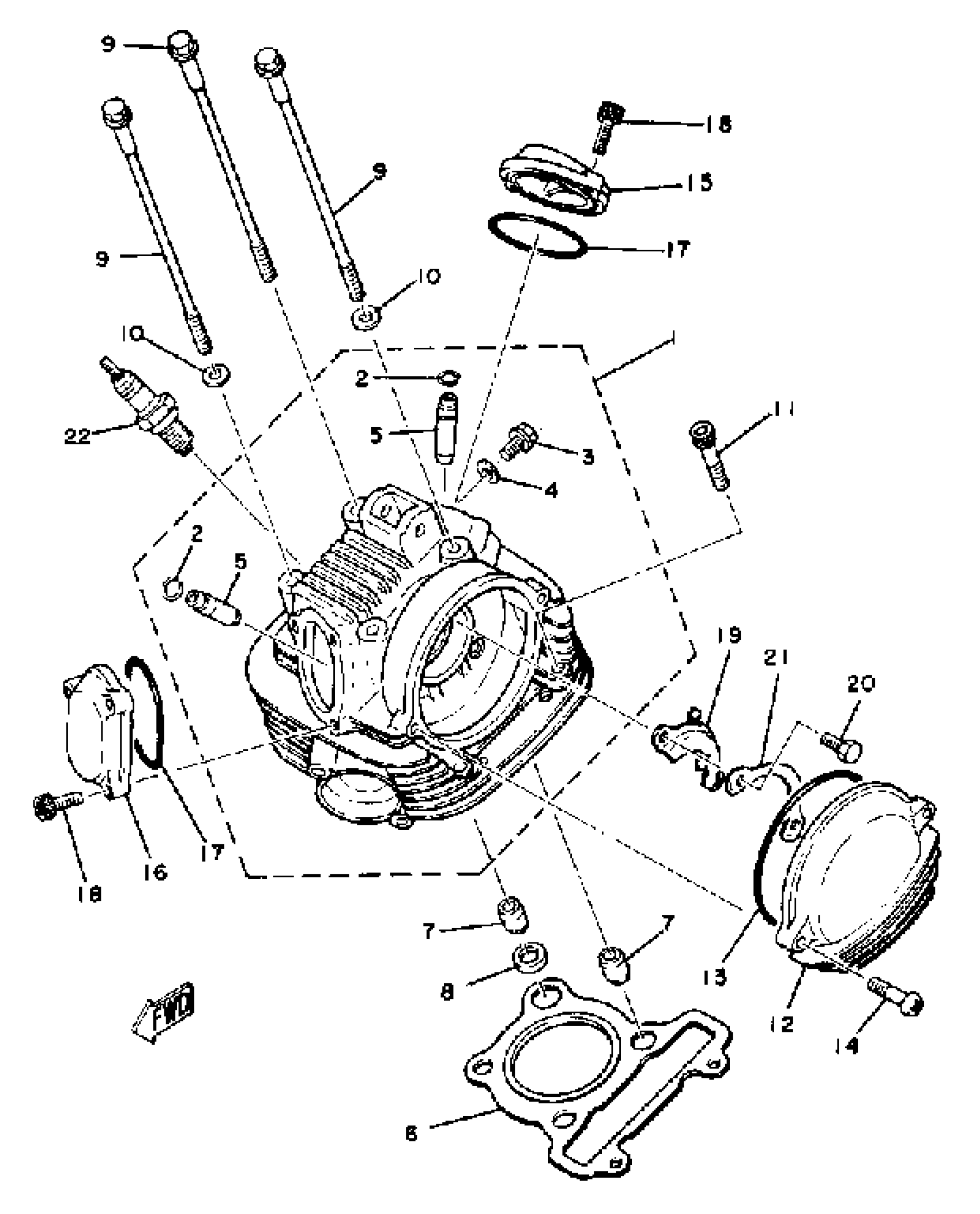

Yamaha SR185H (SR185H) 1981 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(5H0-11110-00-00)

Unavailable

2

CIRCLIP (4G0)

93440-10085-00

$8.49

3

SCREW

90153-06029-00

$10.49

4

GASKET 256113960000

90430-06014-00

Unavailable

5

GUIDE, INTAKE VALVE

5H0-11133-11-00

$63.99

6

GASKET, CYLINDER HEAD 1

1NU-11181-00-00

$46.99

7

PIN, DOWEL

99530-14016-00

$3.80

8

GASKET (1L9)

90430-14131-00

$8.49

9

BOLT, FLANGE

90105-08160-00

$7.49

10

WASHER, PLATE

90201-080L7-00

$4.82

11

BOLT, SOCKET

91317-08045-00

Unavailable

12

CVR, CYLINDER HD SIDE 1

5H0-11185-00-00

Unavailable

13

O-RING (5H0)

93211-05471-00

$14.99

14

SCREW PAN HEAD

98580-06020-00

$8.49

15

COVER, CYLINDER.HEAD 2

(5H0-11186-00-00)

Unavailable

16

COVER, CYLINDER.HEAD 3

(5H0-11187-00-00)

Unavailable

17

O-RING

93210-57634-00

Unavailable

18

BOLT,SOCKET

91317-06020-00

Unavailable

19

PLATE

5H0-1111F-00-00

Unavailable

20

BOLT (661)

97013-06012-00

Unavailable

21

WASHER, LOCK (5H0)

90215-06184-00

Unavailable

22

D7EA NGK SPLUG 10PK

D7E-A0000-00-00

Unavailable
