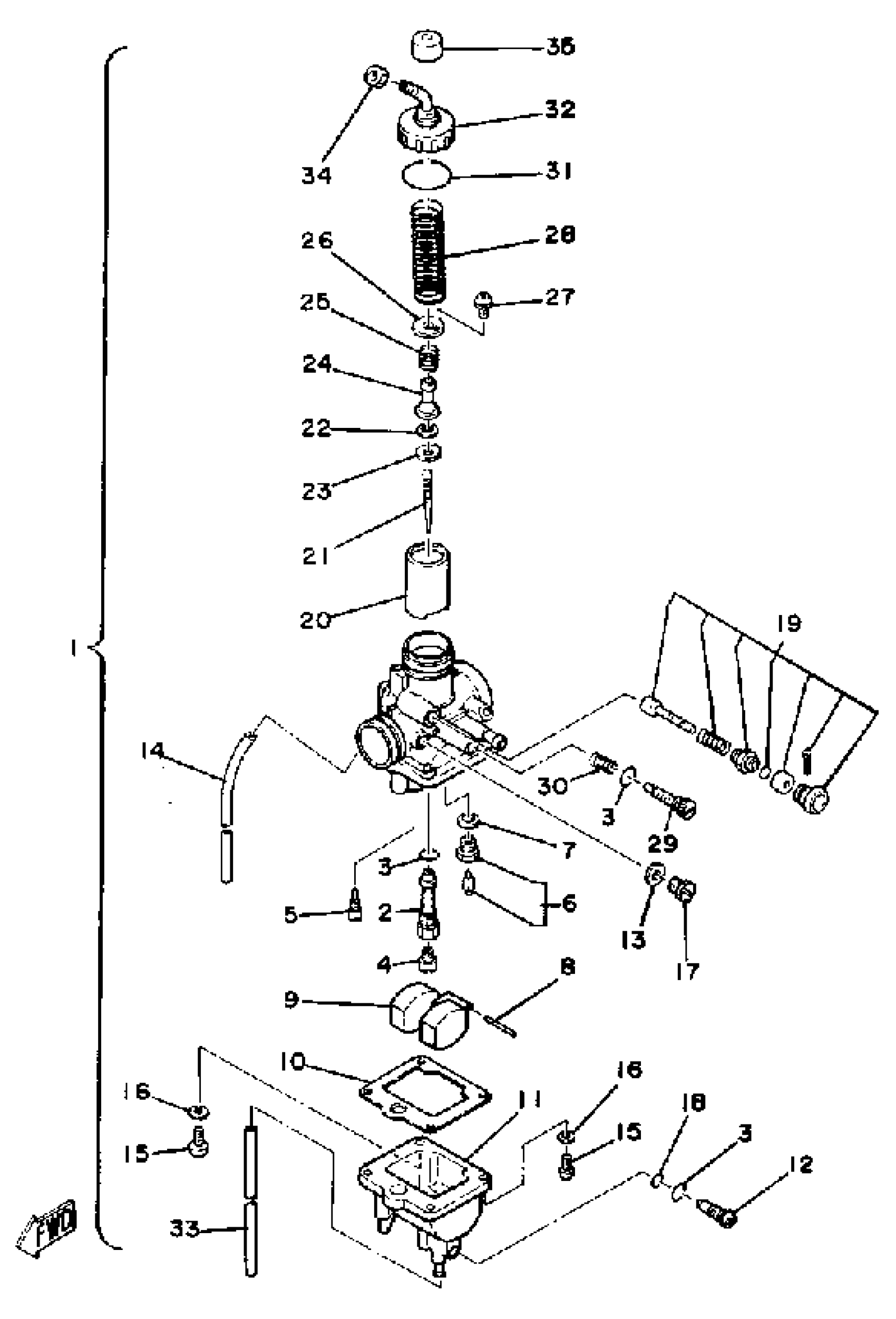

Yamaha SR185H (SR185H) 1981 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

5H0-14301-00-00

Unavailable

2

. NOZZLE, MAIN

5H0-14341-00-00

Unavailable

3

GASKET

360-24512-00-00

$9.99

4

JET, MAIN (# 116)

288-14343-58-00

Unavailable

5

. JET, PILOT #38

367-14342-19-00

Unavailable

6

. NEEDLE VALVE ASSEMBLY (396-14390-25-00)

1J2-14390-25-00

Unavailable

7

WASHER, VALVE SEAT

367-14195-00-00

$6.99

8

. PIN, FLOAT

647-14386-10-00

Unavailable

9

FLOAT

367-14385-00-00

Unavailable

10

GASKET, FLOAT CHAMBER

5H0-14384-00-00

Unavailable

11

BODY, FLOAT CHAMBER

(5H0-14381-30-00)

Unavailable

12

. PLUG, SCREW

5H0-14115-00-00

Unavailable

13

GASKET

5H0-14126-00-00

$4.73

14

. PIPE 1

5H0-14348-00-00

Unavailable

15

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

SCREW

5H0-14991-00-00

Unavailable

18

O-RING

5H0-14397-00-00

Unavailable

19

STARTER SET

5H0-1410A-01-00

Unavailable

20

VALVE, THROTTLE 1

(5H0-14312-25-00)

Unavailable

21

NEEDLE

(5H0-14336-00-00)

Unavailable

22

. CLIP

389-14137-00-00

Unavailable

23

RING

(5H0-14918-00-00)

Unavailable

24

WASHER

(5H0-14227-00-00)

Unavailable

25

SPRING

(5H0-14589-00-00)

Unavailable

26

SEAT, SPRING

(5H0-14936-00-00)

Unavailable

27

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

28

SPRING,THRTL VALVE

15E-14331-00-00

Unavailable

29

THROTTLE SCREW SET

4WP-14103-00-00

Unavailable

30

. SPRING, PILOT ADJUSTING

5H0-14212-00-00

Unavailable

31

. O-RING

1J2-14147-00-00

Unavailable

32

CAP, MIXING CHAMBER

(5H0-14168-00-00)

Unavailable

33

. PIPE

36F-14396-00-00

Unavailable

34

NUT, CABLE ADJUSTING

85L-14161-00-00

Unavailable

35

CAP

(789-14118-00-00)

Unavailable
