- SR10XSGR (SRVIPER X TX SE) 8JR60 2016
PRIMARY SHEAVE

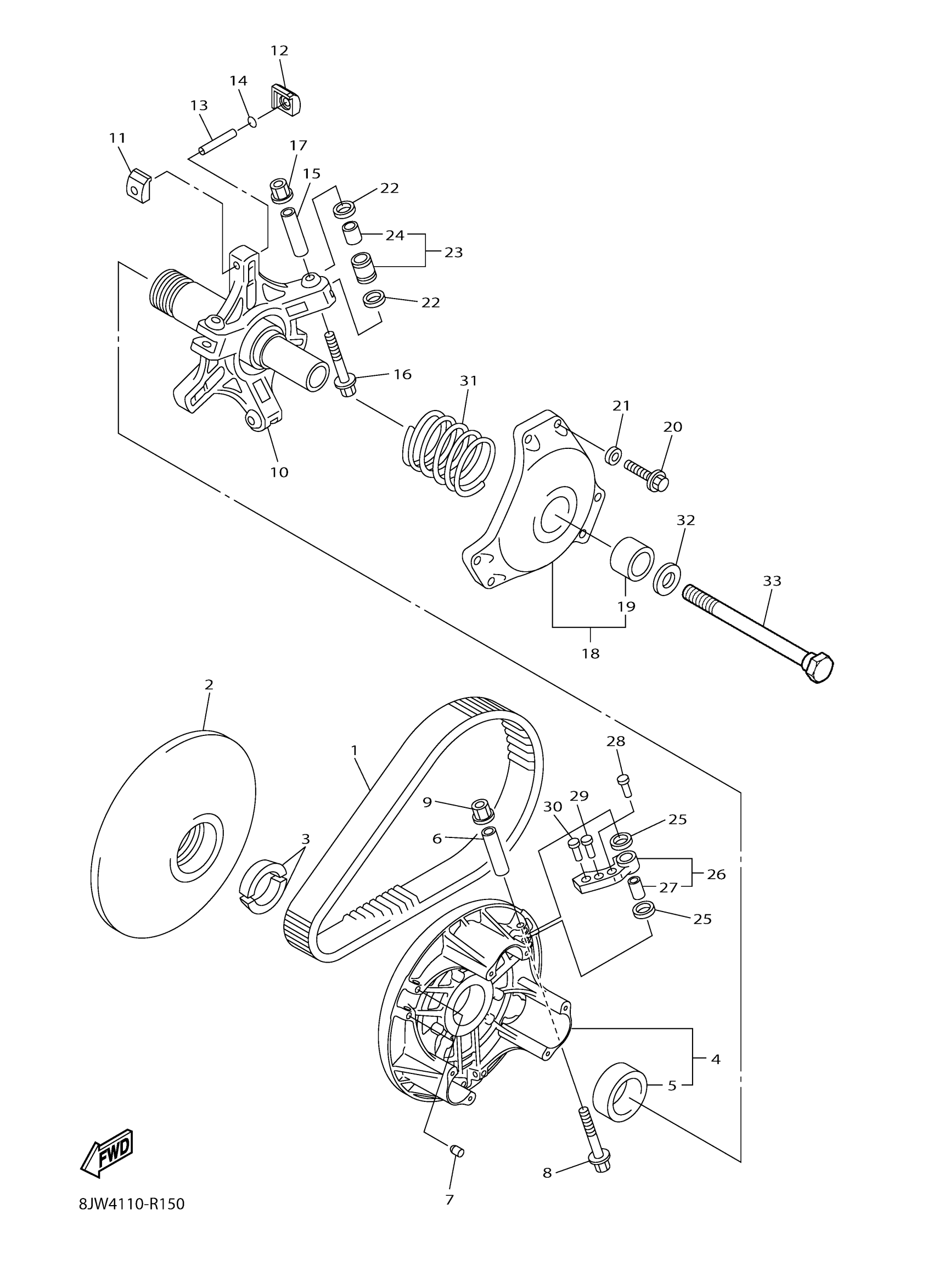

Yamaha SR10XSGR (SRVIPER X TX SE) 8JR60 2016 PRIMARY SHEAVE Diagram
#
1
V-BELT
8JP-17641-00-00
Unavailable
2
SHEAVE, PRIMARY FIXED
8FA-17611-01-00
$206.99
3
STOPPER
8V0-17639-00-00
$14.99
4
PRIMARY SLIDING SHEAVE COMP.
8FP-17620-00-00
$437.99
5
BUSH, BIMETAL FORMED(8AS)
90384-41242-00
$60.99
6
COLLAR
90387-0514T-00
$16.99
7
BOLT, SET
90113-05041-00
$8.49
8
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
9
NUT, S/L FLANGE
95607-05200-00
$9.49
10
SPIDER COMPLETE
8ES-17640-02-00
Unavailable
11
SLIDER
8BW-17653-00-00
$16.49
12
SLIDER
8ES-17653-00-00
$25.99
13
PIN, SPRING (7F7)
91609-50032-00
$4.14
14
DAMPER, SLIDER
8ES-17655-00-00
$2.39
15
COLLAR
90387-0514U-00
$20.99
16
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
17
NUT, S/L FLANGE
95607-05200-00
$9.49
18
PRIMARY SHEAVE CAP COMP.
8DF-17630-00-00
Unavailable
19
BUSH, SOLID(8CP)
90380-28237-00
Unavailable
20
BOLT, HEXAGON
97017-06030-00
Unavailable
21
WASHER(6TA)
92907-06600-00
Unavailable
22
WASHER, PLATE(8BV)
90202-09227-00
Unavailable
23
ROLLER, COMP
8FG-17624-20-00
Unavailable
24
BUSH
90386-09001-00
Unavailable
25
WASHER, PLATE(88R)
90202-08204-00
Unavailable
26
WEIGHT COMP
8GL-17605-00-00
Unavailable
27
BUSH
90386-08002-00
Unavailable
28
RIVET, COUNTERSUNK HEAD(8AB)
90261-06034-00
Unavailable
29
RIVET, COUNTERSUNK HEAD(8AB)
90261-06034-00
Unavailable
30
RIVET, COUNTERSUNK HEAD (8K8)
90261-06019-00
Unavailable
31
SPRING, COMPRESSIO
90501-570A0-00
Unavailable
32
WASHER(JN5)
92907-16100-00
Unavailable
33
BOLT (L=156.5MM)
8V0-17647-10-00
Unavailable
