- SR10XSER (SRVIPER XTX SE) 8JR10 2014
TRACK SUSPENSION 2

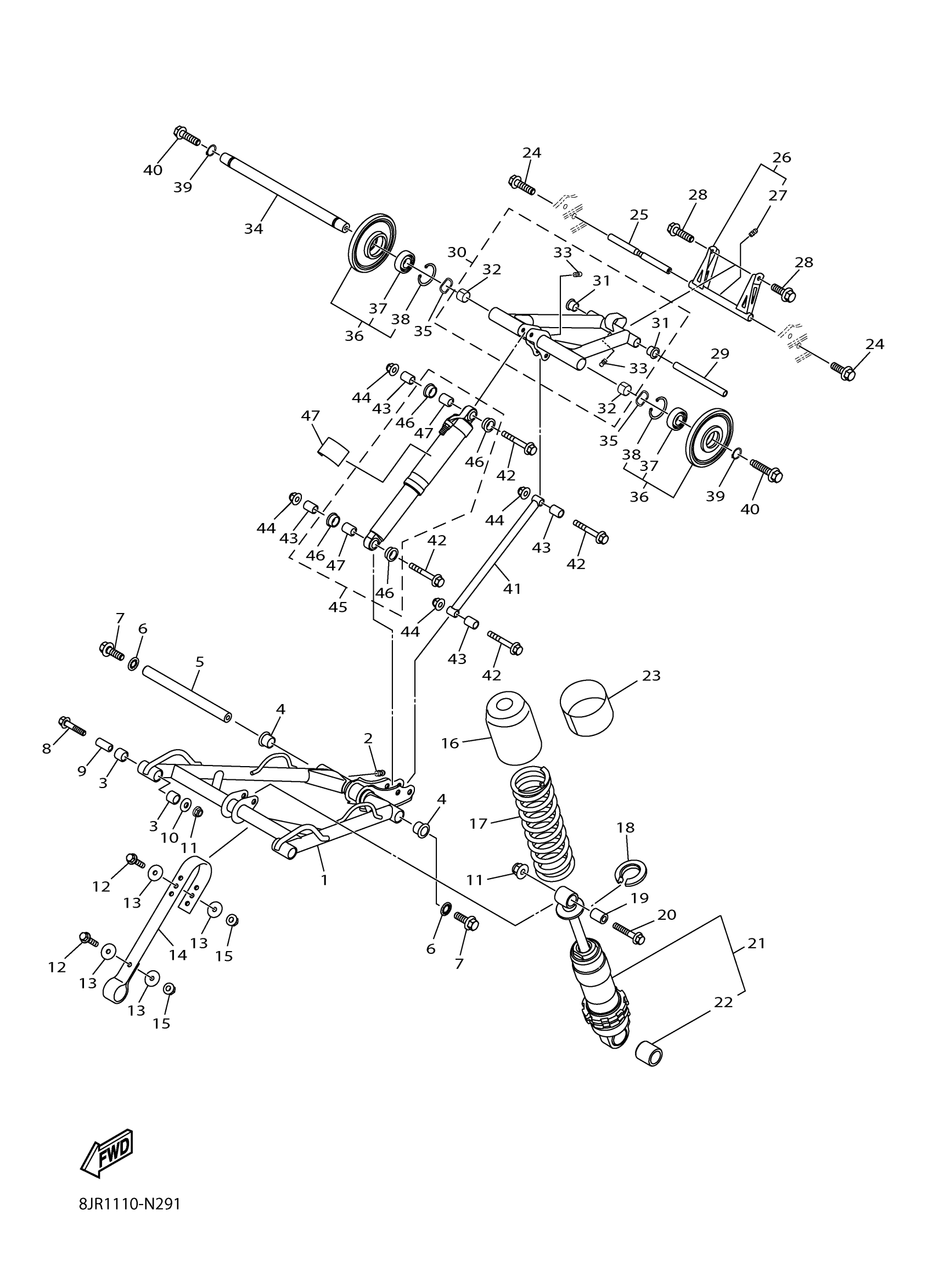

Yamaha SR10XSER (SRVIPER XTX SE) 8JR10 2014 TRACK SUSPENSION 2 Diagram
#
1
ARM,PIVOT 1
8JR-G7331-00-00
Unavailable
2
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
3
BUSH, 0.751
8JP-RA812-00-00
$4.35
4
BUSH, 5
8JP-RA814-00-00
$4.46
5
SHAFT 4
8JP-G7486-00-00
Unavailable
6
WASHER, TOOTH M10
8JP-RA457-00-00
$0.43
7
BOLT, FLG. M10X1.2
8JP-RA199-00-00
$3.18
8
SCREW, 7
8JP-RA296-00-00
$3.88
9
COLLAR, 16
8JP-RA733-00-00
Unavailable
10
WASHER, PLAIN
8JP-RA462-00-00
$0.74
11
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
12
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
$1.16
13
WASHER, 6.87X25.4X
8JP-RA450-00-00
$0.85
14
STOPPER 1
8JR-G7495-10-00
$13.49
15
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
16
COVER
8JP-F2211-00-00
Unavailable
17
SPRING, 2
8JR-G7336-00-00
Unavailable
18
GUIDE, SPRING 1
8JP-F2214-00-00
Unavailable
19
COLLAR, 14
8JP-RA726-00-00
Unavailable
20
BOLT, FLG. M10X1.2
8JP-RA1A2-10-00
Unavailable
21
DAMPER SUB ASY
8JR-F2201-10-00
Unavailable
22
COLLAR, 22.4
8JP-RA730-00-00
Unavailable
23
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
24
BOLT, FLG. M8X1.25
8JP-RA186-00-00
Unavailable
25
SHAFT 6
8JP-G7488-00-00
Unavailable
26
BRACKET 3
8JR-G7417-00-00
Unavailable
27
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
28
BOLT, FLG. M10X1.2
8JP-RA198-00-00
Unavailable
29
SHAFT 5
8JR-G7487-00-00
Unavailable
30
ARM, PIVOT 2
8JR-G7332-00-00
Unavailable
31
BUSH, 0.751
8JP-RA812-00-00
$4.35
32
BUSH, 6
8JP-RA815-00-00
Unavailable
33
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
34
SHAFT 2
8JR-G7475-00-00
Unavailable
35
WASHER, WAVE
8JP-RA463-00-00
Unavailable
36
WHEEL,SUSPENSION 2
8JR-G7312-00-00
Unavailable
37
BEARING, 3
8JP-RAG08-00-00
Unavailable
38
CIRCLIP, 4
8JP-RAH10-00-00
Unavailable
39
CIRCLIP, 5
8JP-RAH11-00-00
Unavailable
40
SCREW, 8
8JP-RA297-00-00
Unavailable
41
ROD, RELAY
8JR-G7494-00-00
Unavailable
42
BOLT, FLG. M10X1.2
8JP-RA1A2-10-00
Unavailable
43
COLLAR, 12
8JP-RA724-00-00
Unavailable
44
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
45
SHOCK ABSORBER
8JR-G7480-20-00
Unavailable
46
BUSH, 5
8JP-RA814-00-00
$4.46
47
COLLAR, 15
8JP-RA732-00-00
Unavailable
48
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
