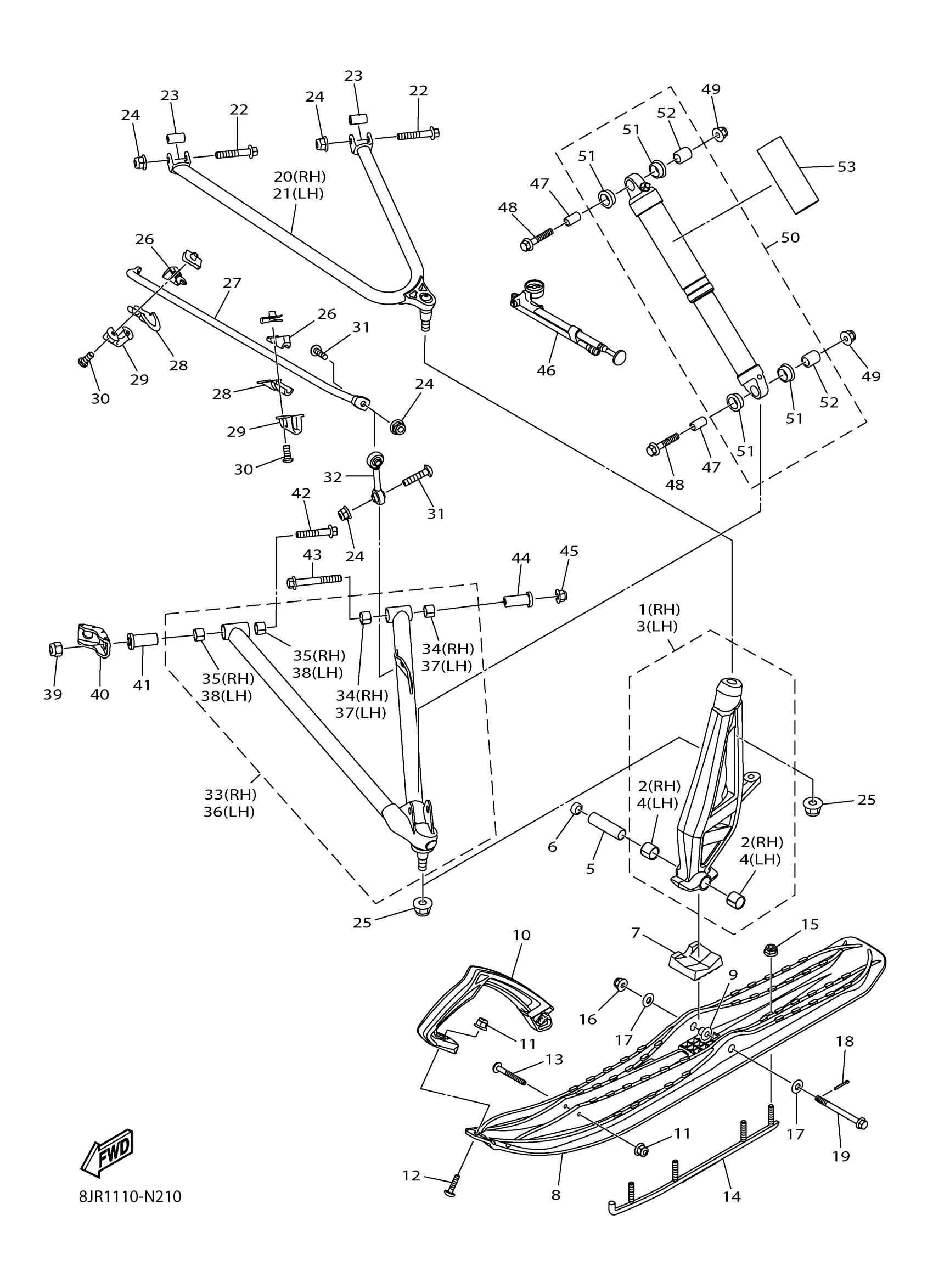

Yamaha SR10XSER (SRVIPER XTX SE) 8JR10 2014 SKI Diagram
#
1
KNUCKLE, STEERING 2
8JR-F3521-00-00
Unavailable
2
BUSH, 12DU12
8JP-RA806-00-00
$10.49
3
KNUCKLE,STEERING LH
8JR-F3511-00-00
$210.99
4
BUSH, 12DU12
8JP-RA806-00-00
$10.49
5
COLLAR, 75
8JP-RA731-00-00
$31.99
6
COLLAR, 6
8JP-RA718-00-00
$3.40
7
STOPPER 1
8JP-F3743-00-00
$24.99
8
SKI 1
8JR-F3711-00-00
$176.99
9
COLLAR, 10
8JP-RA722-00-00
$4.99
10
REINFORCEMENT, HEAD (DEEP PURPLISH BLUE SOLID E)
8JP-F3712-20-00
Unavailable
11
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
12
SCREW, M6X1.0X25
8JP-RA263-00-00
Unavailable
13
SCREW, M6X1.0X50
8JP-RA267-00-00
$2.65
14
RUNNER 1
8JP-F3731-00-00
Unavailable
15
NUT, FLG. LOCKING
8JP-RA358-00-00
$0.80
16
NUT, FLG. LOCKING
8JP-RA359-00-00
Unavailable
17
WASHER, 10.98X28.0
8JP-RA443-00-00
Unavailable
18
PIN, 1
8JP-RAK01-00-00
Unavailable
19
BOLT, FLG. M10-1.2
8JP-RA193-00-00
Unavailable
20
ARM, FRONT UPPER
8JP-F355A-00-00
Unavailable
21
ARM, FRONT UPPER
8JP-F354A-00-00
Unavailable
22
BOLT, FLG. M8X1.25
8JP-RA190-00-00
Unavailable
23
COLLAR, 8
8JP-RA720-00-00
Unavailable
24
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
25
NUT, FLG. LOCKING
8JP-RA362-00-00
Unavailable
26
HOLDER 2
8JP-F3867-00-00
Unavailable
27
BAR, STABILIZER FR
8JP-F386E-00-00
Unavailable
28
BUSH, STABILIZER F
8JP-F386G-00-00
Unavailable
29
HOLDER, STABILIZER
8JP-F386C-00-00
Unavailable
30
SCREW, 1
8JP-RA235-00-00
Unavailable
31
SCREW, M8X1.25X35
8JP-RA273-00-00
Unavailable
32
LINK, STABILIZER F
8JP-F386F-00-00
Unavailable
33
ARM,FR. LWR. RH.
8JP-F358A-00-00
Unavailable
34
BUSH, 10DU10
8JP-RA807-00-00
Unavailable
35
BUSH, 1815DU
8JP-RA811-00-00
Unavailable
36
ARM,FR. LWR. LH.
8JP-F357A-00-00
Unavailable
37
BUSH, 10DU10
8JP-RA807-00-00
Unavailable
38
BUSH, 1815DU
8JP-RA811-00-00
Unavailable
39
NUT, FLG. LOCKING
8JP-RA361-00-00
Unavailable
40
ARM, 1
8JP-F3543-00-00
Unavailable
41
COLLAR, 9
8JP-RA721-00-00
Unavailable
42
BOLT, FLG. M12X1.2
8JP-RA1A7-00-00
Unavailable
43
BOLT, FLG. M10X1.2
8JP-RA1A4-00-00
Unavailable
44
COLLAR, 7
8JP-RA719-00-00
Unavailable
45
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
46
ADJUSTER
8JW-F3703-00-00
Unavailable
47
COLLAR, 12
8JP-RA724-00-00
Unavailable
48
BOLT, FLG. M10X1.2
8JP-RA1A3-00-00
Unavailable
49
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
50
DAMPER ASSY
8JR-F330E-00-00
Unavailable
51
BUSH, 5
8JP-RA814-00-00
Unavailable
52
COLLAR, 15
8JP-RA732-00-00
Unavailable
53
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
