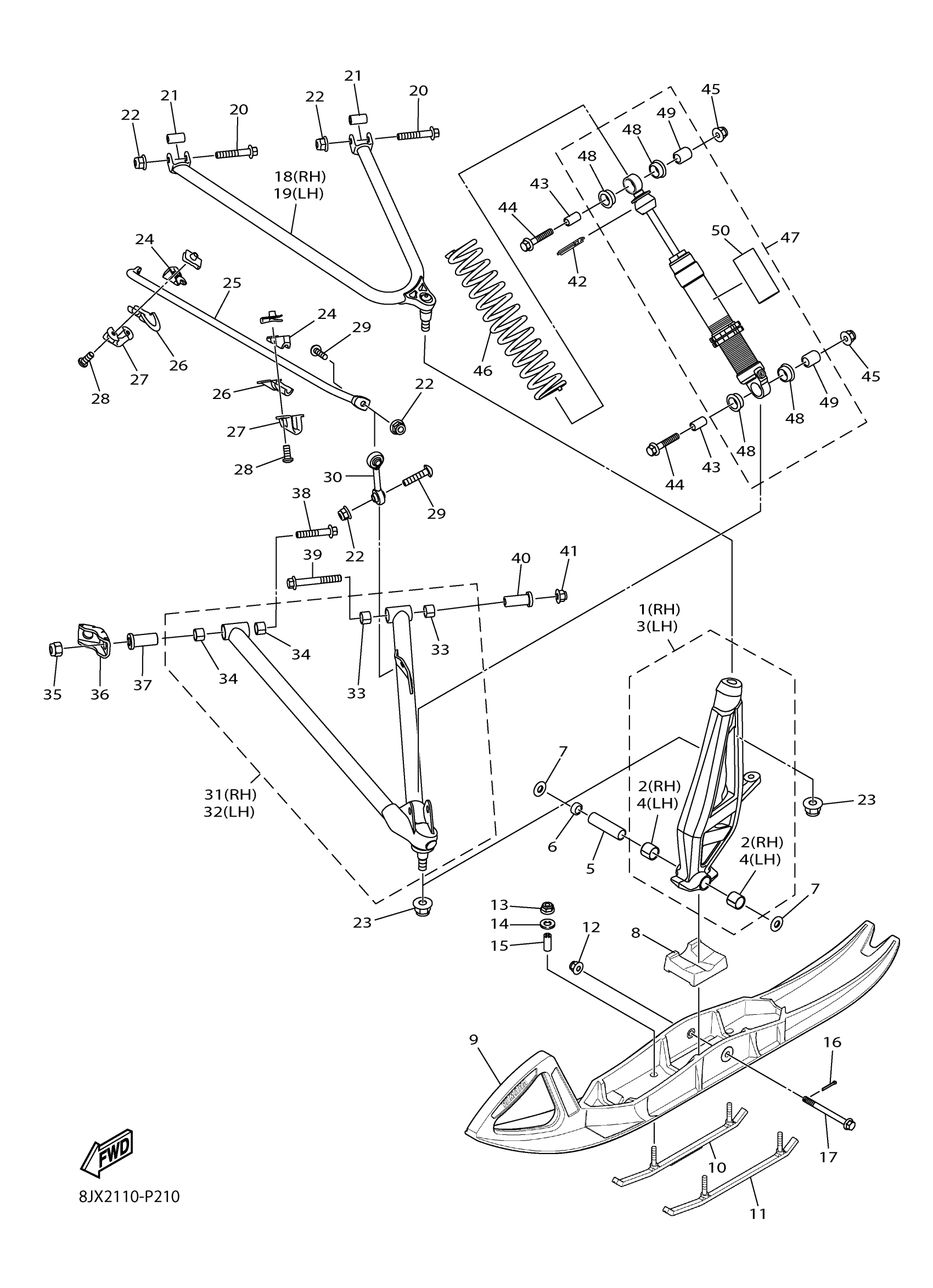

Yamaha SR10SDFR (SRVIPER S TX DX) 8KV10 2015 SKI Diagram
#
1
KNUCKLE, STEERING 2
8JR-F3521-00-00
Unavailable
2
BUSH, 12DU12
8JP-RA806-00-00
$10.49
3
KNUCKLE,STEERING LH
8JR-F3511-00-00
$210.99
4
BUSH, 12DU12
8JP-RA806-00-00
$10.49
5
COLLAR, 21
8KN-RA736-00-00
Unavailable
6
COLLAR, 23
8KN-RA737-00-00
Unavailable
7
WASHER, PLATE
90201-10043-00
$2.22
8
STOPPER 1
8NS-F3743-00-00
$22.99
9
SKI 1
8KN-F3711-00-00
Unavailable
10
7/16" NO CARB TUNER RUNNER PR.
SMA-8JH31-01-IE
Unavailable
11
7/16"X2" TUNER CARBIDE PR.
SMA-8JH31-02-IE
Unavailable
12
NUT, S/L FLANGE
95602-10200-00
$4.82
13
NUT, NYLON
95717-08300-00
$2.70
14
WASHER, PLATE
90201-08053-00
$5.60
15
BUSH, SKI 1
8KN-F3751-00-00
Unavailable
16
PIN, COTTER
91490-20025-00
Unavailable
17
BOLT, FLANGE
90105-10070-00
Unavailable
18
ARM, FRONT UPPER
8JP-F355A-00-00
Unavailable
19
ARM, FRONT UPPER
8JP-F354A-00-00
Unavailable
20
BOLT, FLG. M8X1.25
8JP-RA190-00-00
Unavailable
21
COLLAR, 8
8JP-RA720-00-00
Unavailable
22
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
23
NUT, FLG. LOCKING
8JP-RA362-00-00
Unavailable
24
HOLDER 2
8JP-F3867-00-00
Unavailable
25
BAR, STABILIZER FR
8JP-F386E-00-00
Unavailable
26
BUSH, STABILIZER F
8JP-F386G-00-00
Unavailable
27
HOLDER, STABILIZER
8JP-F386C-00-00
Unavailable
28
SCREW, 1
8JP-RA235-00-00
Unavailable
29
SCREW, M8X1.25X35
8JP-RA273-00-00
Unavailable
30
LINK, STABILIZER F
8JP-F386F-00-00
Unavailable
31
ARM,FR. LWR. RH.
8JP-F358A-00-00
Unavailable
32
ARM,FR. LWR. LH.
8JP-F357A-00-00
Unavailable
33
BUSH, 10DU10
8JP-RA807-00-00
Unavailable
34
BUSH, 1815DU
8JP-RA811-00-00
Unavailable
35
NUT, FLG. LOCKING
8JP-RA361-00-00
Unavailable
36
ARM, 1
8JP-F3543-00-00
Unavailable
37
COLLAR, 9
8JP-RA721-00-00
Unavailable
38
BOLT, FLG. M12X1.2
8JP-RA1A7-00-00
Unavailable
39
BOLT, FLG. M10X1.2
8JP-RA1A4-00-00
Unavailable
40
COLLAR, 7
8JP-RA719-00-00
Unavailable
41
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
42
GUIDE, SPRING 1
8JP-F2214-00-00
Unavailable
43
COLLAR, 12
8JP-RA724-00-00
Unavailable
44
BOLT, FLG. M10X1.2
8JP-RA1A3-00-00
Unavailable
45
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
46
SPRING (YAMAHA BLACK)
8JP-F3351-10-00
Unavailable
47
DAMPER ASSY
8JP-F330E-10-00
Unavailable
48
BUSH, 3
8JP-RA804-00-00
Unavailable
49
COLLAR, 14.5
8JP-RA728-00-00
Unavailable
50
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
