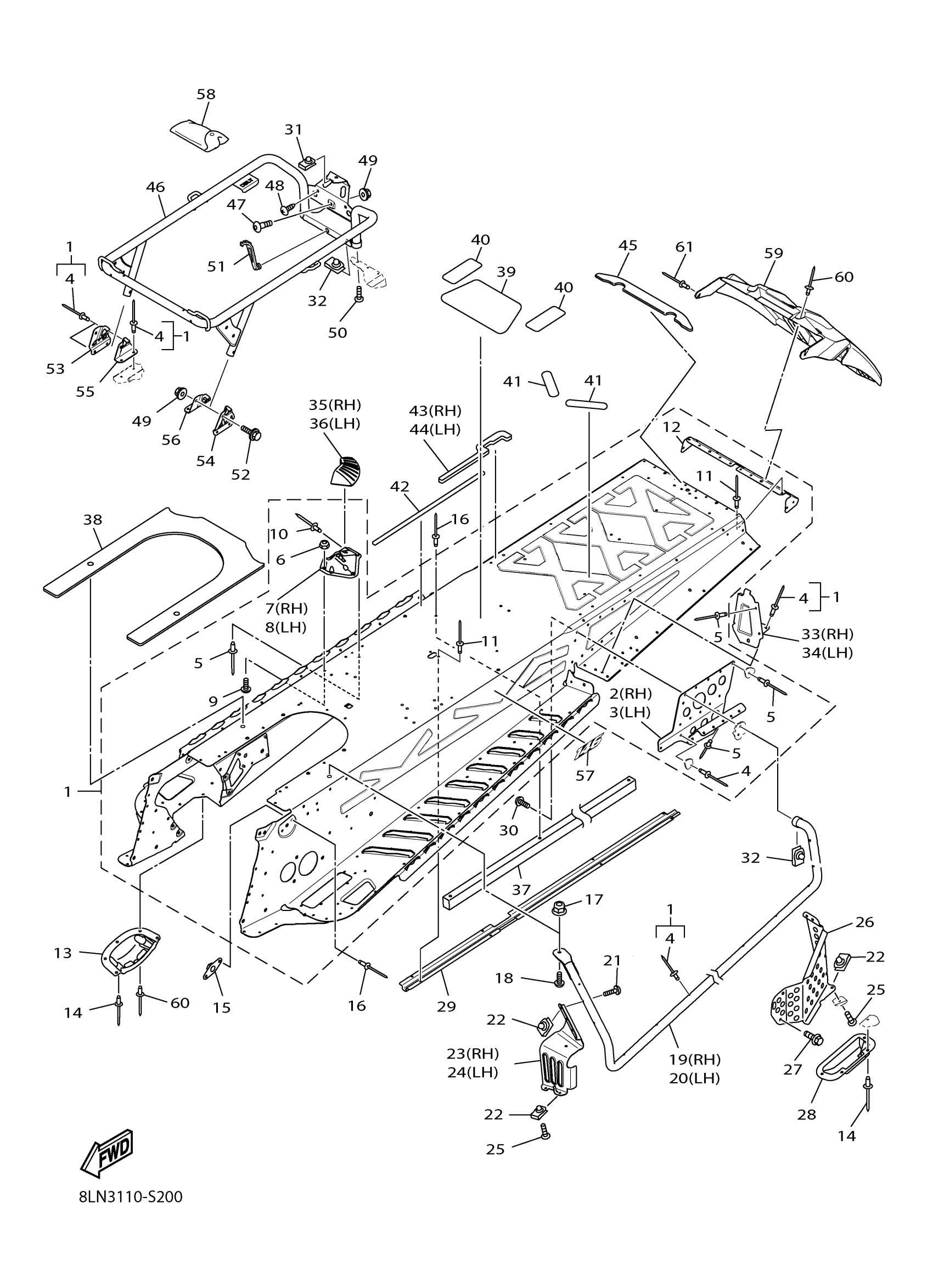

Yamaha SR10SD46HB (SRVIPER S TX DX 146) 8LN3 2017 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8LN-F1950-00-00
Unavailable
2
.. BRACKET, REAR TRACK SUSPENTSON 2
8LN-F1954-00-00
Unavailable
3
.. BRACKET, REAR TRACK SUSPENSION 1
8LN-F1944-00-00
Unavailable
4
RIVET, 11
8JP-RA520-00-00
$0.70
5
RIVET, 3/16
8JP-RA527-00-00
$2.22
6
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
7
BRKT., MEMBER 2
8JW-F115M-00-00
Unavailable
8
. BRACKET, MEMBER 1
8JW-F115L-00-00
Unavailable
9
. SCREW, 5
8JP-RA239-00-00
Unavailable
10
RIVET, 3/16
8JP-RA528-00-00
$2.82
11
RIVET, 18
8JP-RA530-00-00
$0.43
12
. REINEFORCEMENT, FRAME REAR 1
8LN-F1923-00-00
Unavailable
13
PROTECTOR, CHAIN
8JP-F2147-00-00
Unavailable
14
RIVET, 14
8JP-RA523-00-00
$1.22
15
BRACKET
8JP-F1919-00-00
$32.99
16
RIVET, 12
8JP-RA521-00-00
Unavailable
17
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
18
SCREW, M8X1.25X20
8JP-RA272-00-00
Unavailable
19
REINFORCEMENT, FRAME
8LN-F192E-00-00
Unavailable
20
REINFORCEMENT, FRAME SIDE
8LN-F1929-00-00
Unavailable
21
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
22
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
23
REINFORCEMENT SUB
8JW-F1996-00-00
Unavailable
24
REINFORCEMENT SUB
8JW-F1995-00-00
Unavailable
25
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
26
PROTECTOR, DISK BR
8LN-F5718-00-00
Unavailable
27
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
28
PROTECTOR, DISK BR
8JP-F5717-00-00
Unavailable
29
PROTECTER, WIRE HA
8LN-H2589-00-00
Unavailable
30
SCREW, M6X1.0X20
8JP-RA261-00-00
Unavailable
31
NUT, CLIP 10
8JP-RA351-00-00
Unavailable
32
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
33
REINFORCEMENT, RR.
8LN-F1937-00-00
Unavailable
34
REINFORCEMENT, RR.
8LN-F1927-00-00
Unavailable
35
SUPT., FUEL TANK 2
8JP-F2556-00-00
Unavailable
36
SUPT., FUEL TANK 1
8JP-F2555-00-00
Unavailable
37
PROTECTOR,FRAME
8LN-F1978-10-00
Unavailable
38
SEAT, TANK PROTECT
8LN-F4193-00-00
Unavailable
39
PROTECTOR, FUEL TANK
8LN-F4141-00-00
Unavailable
40
PROTECTOR, FRAME A
8LN-F195A-00-00
Unavailable
41
PROTECTOR, FRAME B
8LN-F195B-00-00
Unavailable
42
PLATE, BODY PROTECT 1
8LN-K8261-00-00
Unavailable
43
PLATE, BODY PROTECT 2
8LN-K8262-00-00
Unavailable
44
PLATE, BODY PRTOTECT 3
8LN-K8263-00-00
Unavailable
45
PLATE, BODY PROTECT 4
8LN-K8264-00-00
Unavailable
46
FRAME, LUGGAGE RAC
8LN-K8341-00-00
Unavailable
47
BOLT
8LN-K7519-00-00
Unavailable
48
SCREW, TAPPING M6X
8JP-RA280-00-00
Unavailable
49
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
50
BOLT 1
8LN-K7537-00-00
Unavailable
51
END, STRAP
8LN-F15A4-00-00
Unavailable
52
BOLT, FLANGE
8JP-RA1B4-10-00
Unavailable
53
BRACKET, FRONT
8LN-K7531-00-00
Unavailable
54
BRACKET, FRONT (R.H)
8LN-K7532-00-00
Unavailable
55
BRACKET, REAR (L.H)
8LN-K7533-00-00
Unavailable
56
BRACKET, REAR (R.H)
8LN-K7534-00-00
Unavailable
57
DECAL, FRAME 17
8LN-RAP0J-10-00
Unavailable
58
TOOL KIT
8JP-F8100-00-00
Unavailable
59
FLAP
8LN-K7595-00-00
Unavailable
60
RIVET, 15
8JP-RA524-00-00
Unavailable
61
RIVET, 16
8LN-RA525-00-00
Unavailable
