Description

Price

1

COVER, TAIL

8LN-F4756-00-00

Unavailable

2

HOLDER, LATCH

8LN-K7175-00-00

Unavailable

3

COVER, SIDE 2

8LN-F1721-00-00

$231.99

4

COVER, SIDE 1

8LN-F1711-00-00

Unavailable

5

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

6

BOX 1

8LN-F473R-00-00

Unavailable

7

TAIL COVER ASSY

8LN-F1630-00-00

$210.99

8

COVER

8LN-F172W-00-00

$159.99

9

LABEL

8LN-F178A-00-00

$44.99

10

SCREW, TAPPING M6X

8JP-RA280-00-00

$1.75

11

TERMINAL COMP.

8JP-H254B-00-00

$30.99

12

COVER, SIDE 4

8LN-F1741-00-00

$206.99

13

LABEL, WARNING 2

8JP-K7762-S0-00

Unavailable

14

LABEL 3

8LN-F151F-00-00

$31.99

15

COVER, SIDE 3

8LN-F1731-00-00

$197.99

16

LABEL, WARNING 2

8JP-K7762-70-00

Unavailable

17

LABEL 2

8LN-F151E-00-00

Unavailable

18

SEAL 1

8LN-F1732-00-00

Unavailable

19

BUMPER, REAR 1

8LN-K7541-00-00

Unavailable

20

RIVET, 11

8JP-RA520-00-00

Unavailable

21

NUT, CLIP M6

8JP-RA354-00-00

Unavailable

22

SCREW, M6X1.0X20

8JP-RA260-00-00

Unavailable

23

LABEL

8LN-F415C-00-00

Unavailable

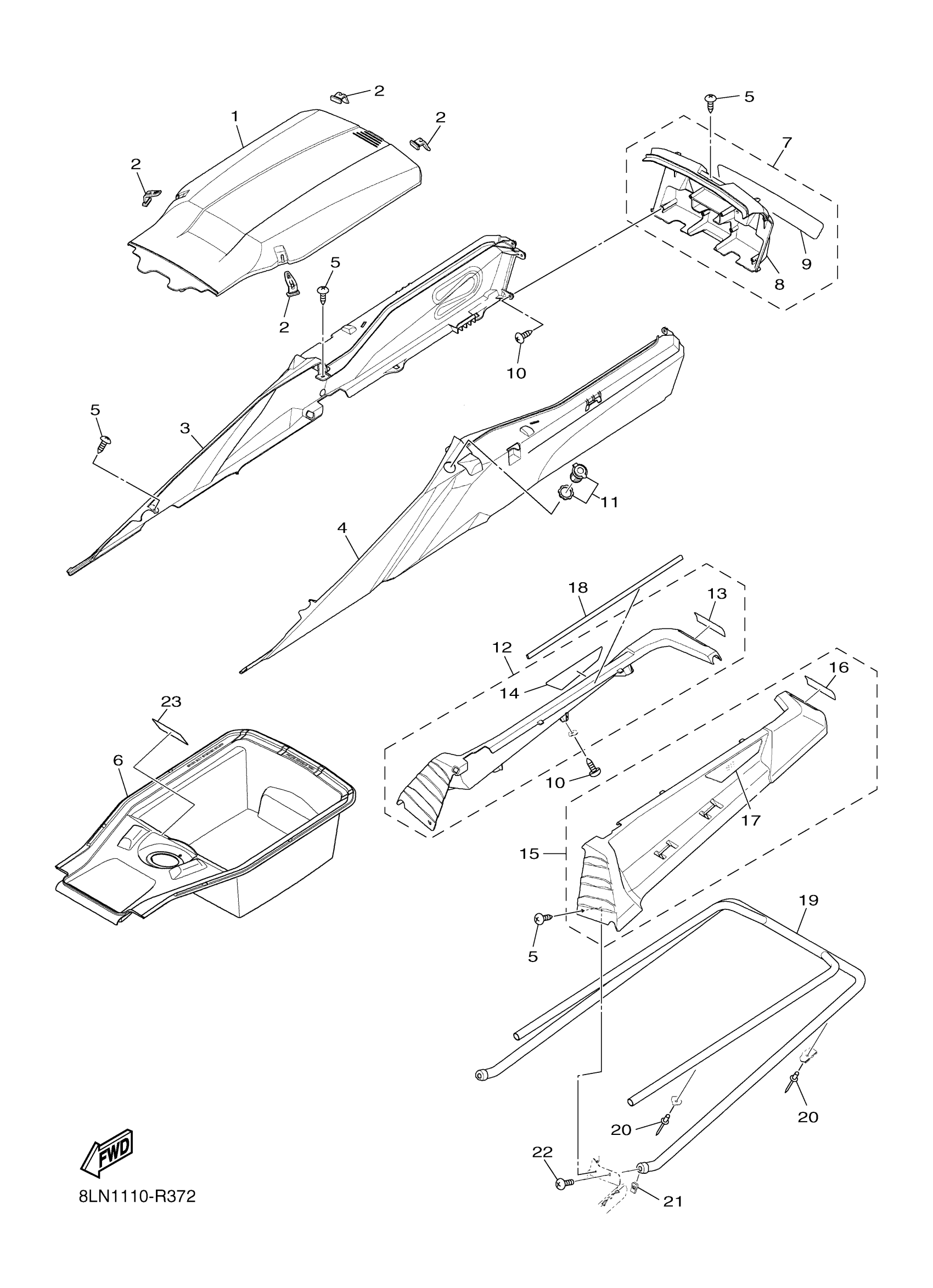

Yamaha SR10SD46HB (SRVIPER S TX DX 146) 8LN3 2017 BUMPER Diagram

COVER, TAIL

HOLDER, LATCH

COVER, SIDE 2

COVER, SIDE 1

SCREW, 10-12X3/4

BOX 1

TAIL COVER ASSY

COVER

LABEL

SCREW, TAPPING M6X

TERMINAL COMP.

COVER, SIDE 4

LABEL, WARNING 2

LABEL 3

COVER, SIDE 3

LABEL, WARNING 2

LABEL 2

SEAL 1

BUMPER, REAR 1

RIVET, 11

NUT, CLIP M6

SCREW, M6X1.0X20

LABEL
