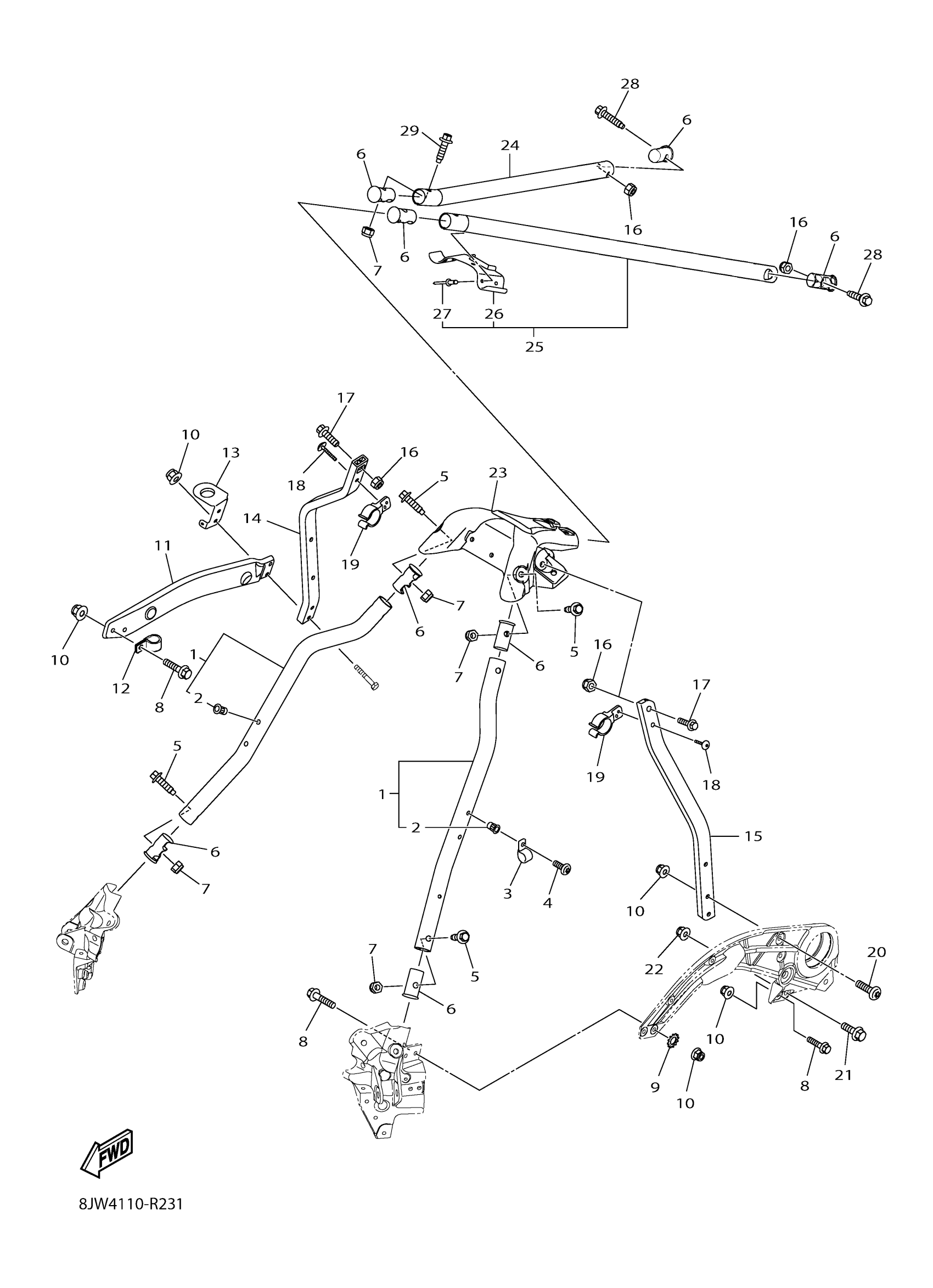

Yamaha SR10SD46GB (SRVIPER S TX DX 146) 8LN1 2016 STEERING GATE Diagram
#
1
PIPE, CROSS 6
8JP-F119A-10-00
Unavailable
2
. NUT, HEXAGON
8JP-RA331-00-00
Unavailable
3
CLAMP, 5
8JP-RAB07-00-00
Unavailable
4
SCREW, 11
8JP-RA2A0-00-00
Unavailable
5
SCREW, 8
8JP-RA297-00-00
$3.08
6
CAP, MAIN PIPE
8JP-F111A-10-00
$3.98
7
NUT, HEX. LOCKING
8JP-RA371-00-00
$1.16
8
BOLT, FLG. M6X1.0X
8JP-RA182-00-00
$0.75
9
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
$0.27
10
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
11
GUSSET
8JP-F1113-10-00
Unavailable
12
CLAMP, 3
8JP-RAB05-00-00
Unavailable
13
BRACKET 5
8JP-F112K-00-00
$28.99
14
MEMBER, SIDE 1
8JP-F111J-00-00
$154.99
15
MEMBER, SIDE 2
8JP-F111K-00-00
Unavailable
16
NUT, HEX. LOCKING
8JP-RA372-00-00
Unavailable
17
BOLT, FLG. M8X1.25
8JP-RA185-00-00
Unavailable
18
SCREW, 10-12X1.00
8KC-RA288-00-00
Unavailable
19
CLIP
8JP-F11C2-00-00
Unavailable
20
SCREW, M6X1.0X30
8JP-RA266-00-00
Unavailable
21
BOLT, FLANGE M8-1.25X25
8JM-RA102-00-00
Unavailable
22
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
23
GATE, STEERING
8JP-F3871-10-00
Unavailable
24
PIPE, CROSS, 7
8JP-F119E-10-00
Unavailable
25
PIPE CROSS 8
8JP-F119F-10-00
Unavailable
26
. SUPPORT, SEAT
8JP-F114H-00-00
Unavailable
27
RIVET, 5
8JP-RA514-10-00
Unavailable
28
BOLT, FLG. M8X1.25
8JP-RA187-00-00
Unavailable
29
BOLT, FLG. M10X1.2
8JP-RA197-00-00
Unavailable
