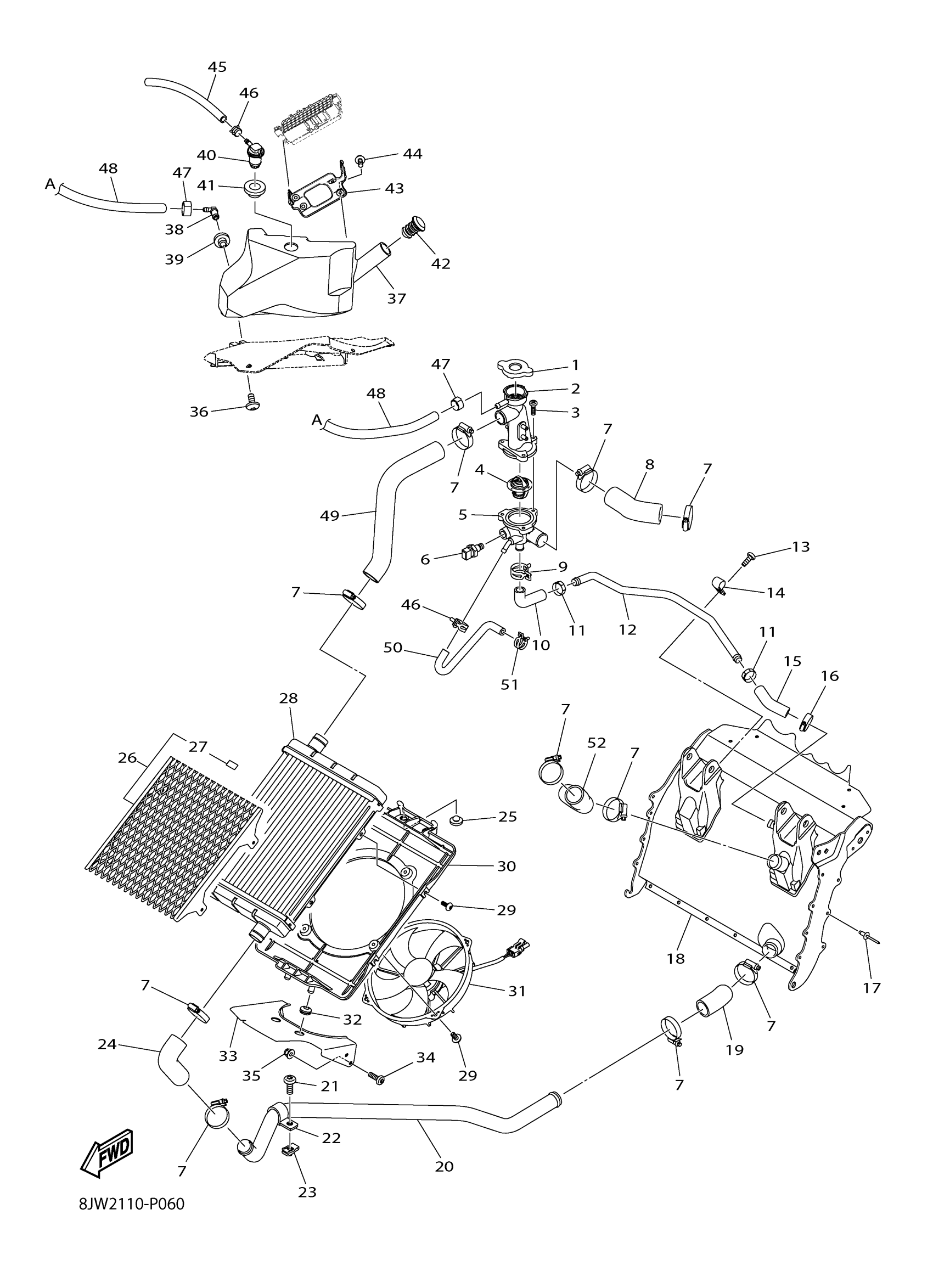

Yamaha SR10SD46GB (SRVIPER S TX DX 146) 8LN1 2016 RADIATOR HOSE Diagram
#
1
CAP, RADIATOR
8JP-E2462-00-00
$41.99
2
COVER, THERMOSTAT
8JP-E2413-00-00
$26.99
3
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
4
THERMOSTAT ASSY
8JP-E2410-00-00
Unavailable
5
HOUSING, THERMOSTA
8JP-E2417-01-00
Unavailable
6
THERMOSENSOR ASSY
8JP-H5790-00-00
$24.99
7
CLAMP,26
8JP-RAB29-00-00
$3.50
8
HOSE,3
8JP-E243F-00-00
$13.49
9
CLAMP, 13
8JP-RAB15-00-00
Unavailable
10
HOSE 1
8JP-E243A-00-00
Unavailable
11
CLAMP, 27
8JP-RAB30-00-00
Unavailable
12
PIPE 1
8JP-E2481-00-00
Unavailable
13
SCREW, M6X12
8JP-RA269-00-00
$2.12
14
CLAMP, 21
8JP-RAB23-00-00
Unavailable
15
HOSE 2
8JP-E243E-00-00
Unavailable
16
CLAMP, HOSE
8JP-F1823-00-00
Unavailable
17
RIVET, 9
8JP-RA518-00-00
Unavailable
17
RIVET, 11
8JP-RA520-00-00
Unavailable
18
HEAT EXCHANGER ASS
8JP-E2440-00-00
Unavailable
19
HOSE 6
8JP-E244J-00-00
Unavailable
20
PIPE 2
8JP-E2482-00-00
Unavailable
21
SCREW, M6X1.0X16
8JP-RA256-00-00
Unavailable
22
CLAMP, 3
8JP-RAB05-00-00
Unavailable
23
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
24
HOSE 5
8JP-E244H-00-00
Unavailable
25
DAMPER, RADIATOR
8JP-E2465-00-00
Unavailable
26
RADIATOR COVER ASS
8JP-E240J-01-00
Unavailable
27
PLATE,WEAR
8JP-E2431-00-00
Unavailable
28
RADIATOR COMP
8JP-E2461-00-00
Unavailable
29
SCREW, M5X0.8X12
8JP-RA241-00-00
Unavailable
30
COVER, RADIATOR
8JP-E2467-00-00
Unavailable
31
BLOWER ASSY
8JP-E2405-00-00
Unavailable
32
GROMMET
8JP-E5365-00-00
Unavailable
33
STAY, RADIATOR
8JP-E2464-00-00
Unavailable
34
SCREW, M6X1.0X20
8JP-RA261-00-00
Unavailable
35
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
36
SCREW, M6X1.0X12
8JP-RA254-00-00
Unavailable
37
TANK, RESERVE
8JP-E249B-00-00
Unavailable
38
ELBOW
8JP-F1828-00-00
Unavailable
39
GROMMET
8JP-E5367-00-00
Unavailable
40
VALVE, CHECK 1
8JP-F4362-00-00
Unavailable
41
GROMMET
8JP-E5366-00-00
Unavailable
42
CAP, RECOVERY TANK
8JP-F1876-00-00
Unavailable
43
BRACKET 1
8JP-E244E-00-00
Unavailable
44
BOLT, FLANGE M5X0.8X12
8JP-RA177-00-00
Unavailable
45
HOSE, 13 (25 FEET)
8JM-RA902-10-00
Unavailable
46
CLAMP,HOSE(14.5)12.0MM-14.5MM
8JM-RAC01-00-00
Unavailable
47
CLAMP, 6
8JP-RAB08-00-00
Unavailable
48
HOSE, 8
8JP-RA912-00-00
Unavailable
49
HOSE, 4
8JP-E244G-00-00
Unavailable
50
HOSE 2
8JP-E2577-00-00
Unavailable
51
CLAMP, 12
8JP-RAB14-00-00
Unavailable
52
HOSE 1
8JP-E2576-00-00
Unavailable
