Description

Price

1

PANEL, INSTRUMENT

8JP-K7712-00-00

Unavailable

2

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

3

LOUVER 1

8JP-K7131-00-00

Unavailable

4

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.86

5

NUT, INSERT

8JP-RA373-00-00

$1.43

6

BRACKET, WINDSHIELD (R.H)

8LJ-K7222-00-00

Unavailable

7

BRACKET, WINDSHIEL

8LJ-K7222-10-00

$14.99

8

NUT, FLG. LOCKING

8JP-RA363-00-00

$1.16

9

SCREW, TAPPING M6X

8JP-RA280-00-00

$1.75

10

SCREW, 5

8LJ-RA239-00-00

Unavailable

11

PANEL, INSTRUMENT

8LJ-K7711-00-00

Unavailable

12

SCREW, M6-1.0X15

8JP-RA252-00-00

Unavailable

13

NUT

8LJ-K6169-00-00

Unavailable

14

COVER, 3

8LJ-K7563-00-00

Unavailable

15

PLUG, HEATER

8LJ-H3619-00-00

$40.99

16

SWITCH (HEATER)

8JP-H2627-00-00

Unavailable

17

NUT

8JP-K6169-00-00

Unavailable

18

NUT, CLIP 10

8JP-RA352-00-00

Unavailable

19

PANEL, INSTRUMENT

8JP-K7713-00-00

Unavailable

20

. LABEL, WARNING 1

8JP-K7761-70-00

Unavailable

21

. LABEL, WARNING 1

8JP-K7761-S0-00

Unavailable

22

PROTECTOR, SIDE

8JP-K7561-01-00

Unavailable

23

. VELCRO (6.5 FEET)

8JP-R4261-00-00

Unavailable

24

NUT, 1

8JP-RA345-00-00

Unavailable

25

PIN, 2

8JP-RAK02-00-00

Unavailable

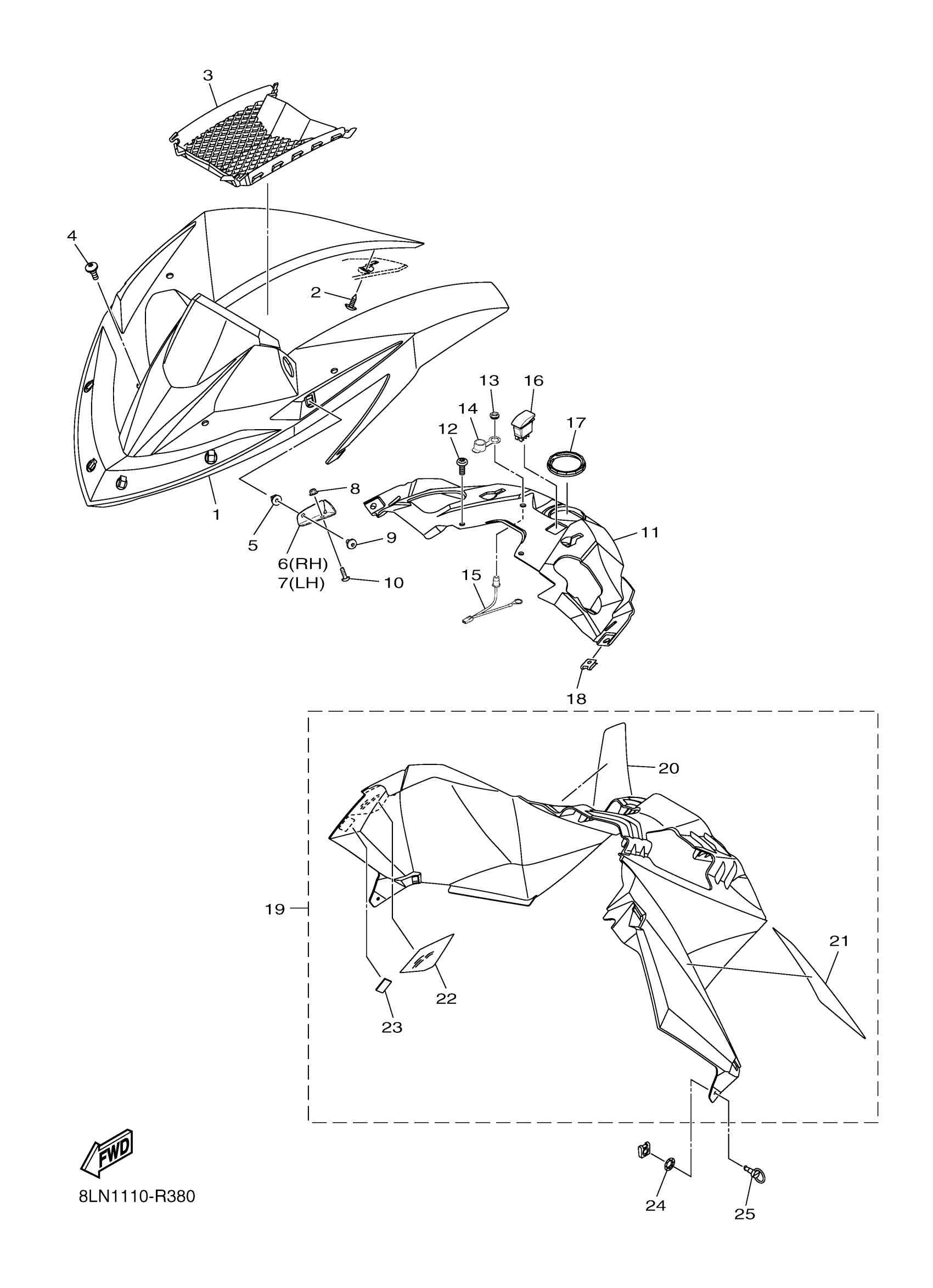

Yamaha SR10SD46GB (SRVIPER S TX DX 146) 8LN1 2016 INSTRUMENT PANEL Diagram

PANEL, INSTRUMENT

SCREW, 10-12X3/4

LOUVER 1

SCREW, M6-1.0X18

NUT, INSERT

BRACKET, WINDSHIELD (R.H)

BRACKET, WINDSHIEL

NUT, FLG. LOCKING

SCREW, TAPPING M6X

SCREW, 5

PANEL, INSTRUMENT

SCREW, M6-1.0X15

NUT

COVER, 3

PLUG, HEATER

SWITCH (HEATER)

NUT

NUT, CLIP 10

PANEL, INSTRUMENT

. LABEL, WARNING 1

. LABEL, WARNING 1

PROTECTOR, SIDE

. VELCRO (6.5 FEET)

NUT, 1

PIN, 2
