- SR10RSHL (SRVIPER R TX SE) 8JW5 2017
CRANKSHAFT PISTON

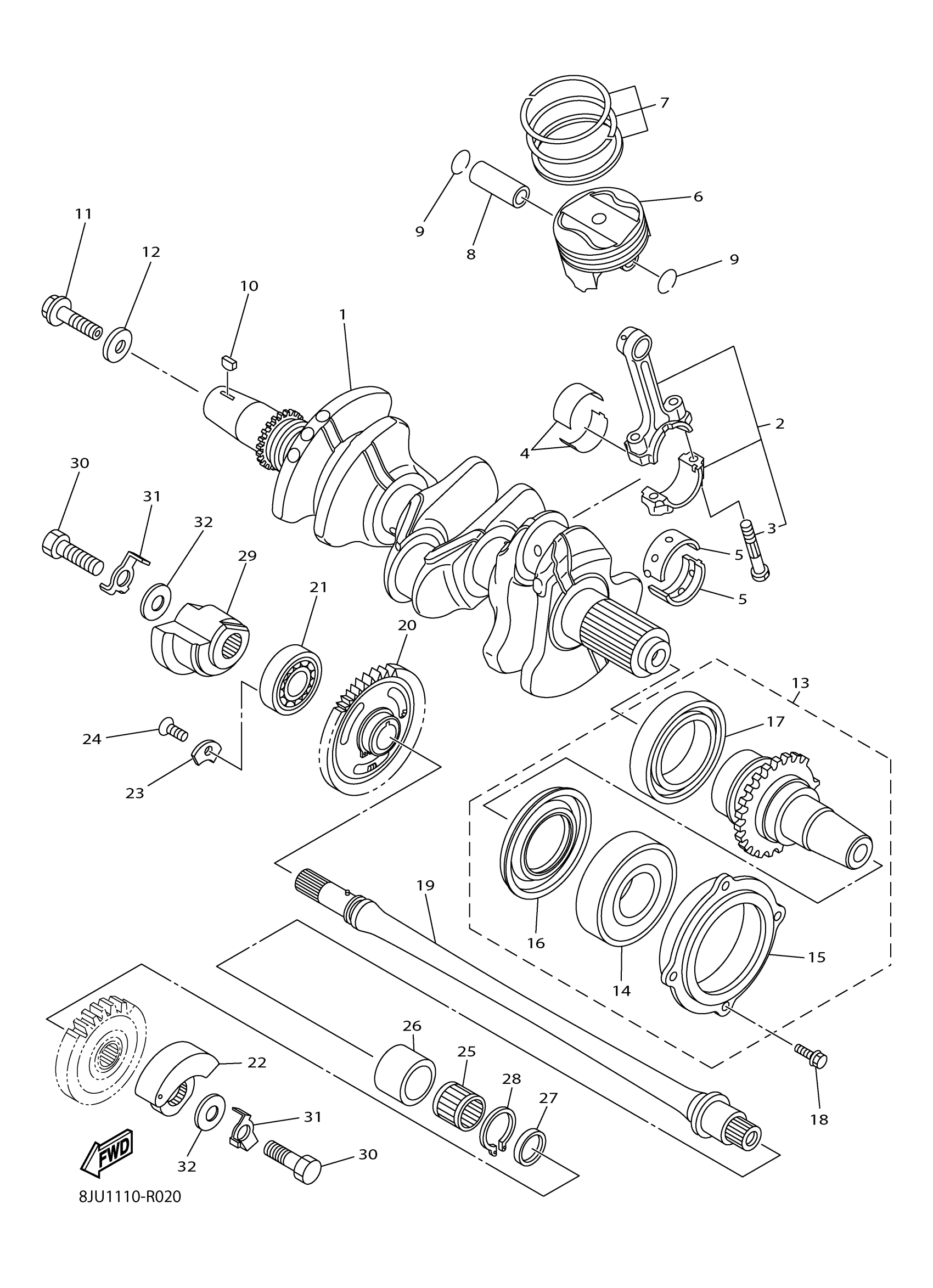

Yamaha SR10RSHL (SRVIPER R TX SE) 8JW5 2017 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT ASSY
2HC-11400-00-00
$659.99
2
CONNECTING ROD ASS
8KH-11650-00-00
Unavailable
3
BOLT, CONNECTING ROD
5PX-11654-00-00
$7.99
4
PLANE BEARING, CONNECTING ROD
5JW-11656-00-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-10-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-20-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-30-00
$14.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-40-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-50-00
$11.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-10-00
Unavailable
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-20-00
$27.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-30-00
$25.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-40-00
$27.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-50-00
$29.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-60-00
$29.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-70-00
Unavailable
6
PISTON (STD)
8KH-11631-00-00
Unavailable
7
PISTON RING SET
8KH-11603-02-00
Unavailable
8
PIN, PISTON
2HC-11633-00-00
Unavailable
9
CIRCLIP (26H)
93450-19095-00
Unavailable
10
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
11
BOLT, FLANGE
90105-12032-00
Unavailable
12
WASHER (838)
90201-12191-00
Unavailable
13
SHAFT ASSY
8KH-11406-00-00
Unavailable
14
BEARING
93306-30721-00
Unavailable
15
HOUSING, BEARING
8KH-16775-00-00
Unavailable
16
OIL SEAL
93102-45008-00
Unavailable
17
BEARING
93306-01003-00
Unavailable
18
BOLT, FLANGE
95817-06020-00
Unavailable
19
SHAFT ASSY., 2
2HC-11407-00-00
Unavailable
20
BALANCER WEIGHT GE
2HC-11530-00-00
Unavailable
21
BEARING
93306-30323-00
Unavailable
22
WEIGHT 1
8ES-11454-00-00
Unavailable
23
PLATE, BEARING COVER
4JT-15381-01-00
Unavailable
24
SCREW, COUNTERSUNK
90151-06023-00
Unavailable
25
BEARING
93310-42239-00
Unavailable
26
BEARING 1
8ES-11428-01-00
Unavailable
27
COLLAR
8ES-11478-00-00
Unavailable
28
CIRCLIP
93450-32152-00
Unavailable
29
WEIGHT 2
2HC-11464-00-00
Unavailable
30
BOLT(6TD)
97017-10025-00
Unavailable
31
WASHER, LOCK
90215-10003-00
Unavailable
32
WASHER, PLATE (3L6)
90201-10774-00
Unavailable
