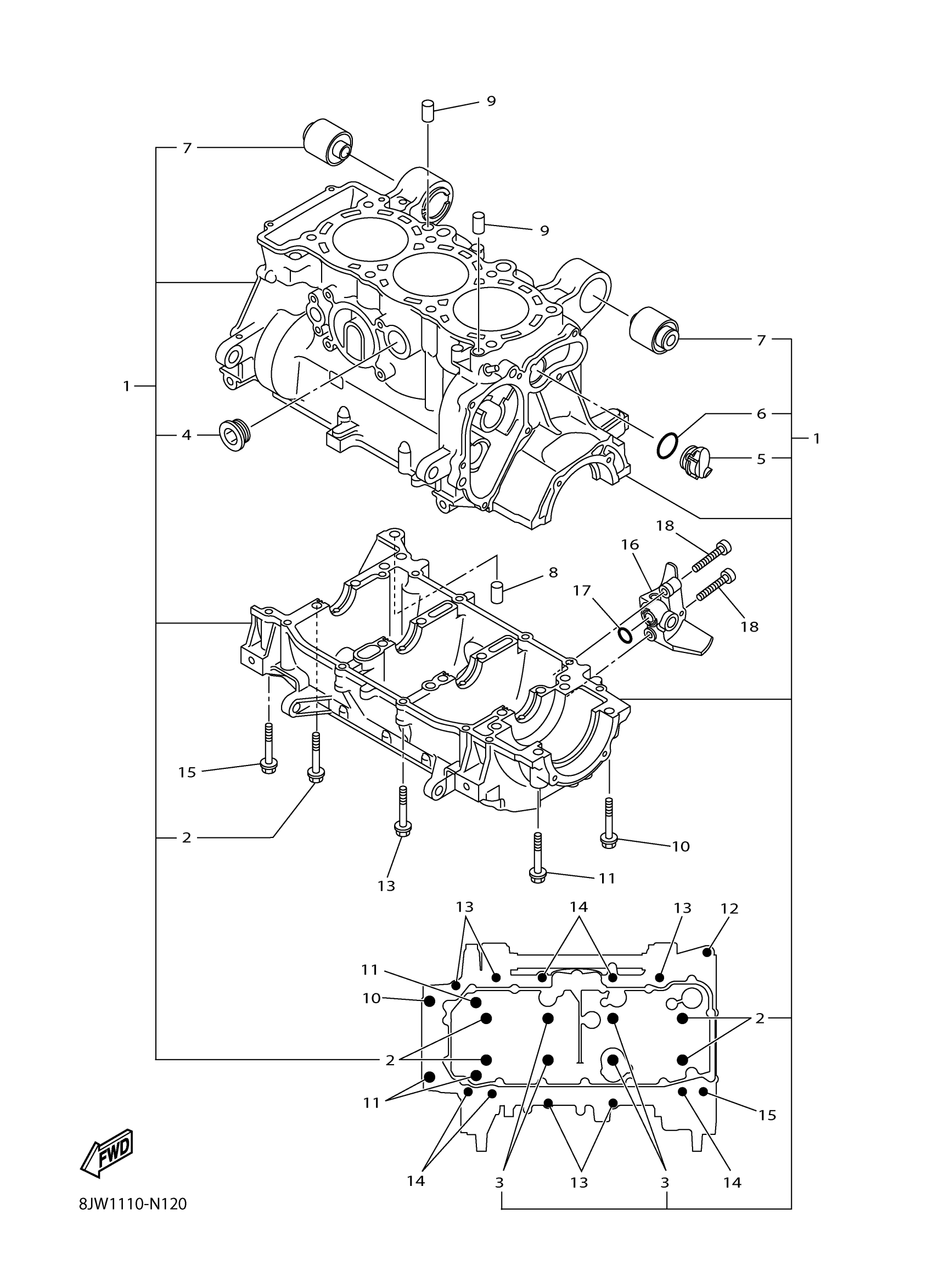

Yamaha SR10RSFR (SRVIPER R TX SE) 8JW20 2015 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8JK-15109-08-00

Unavailable

2

BOLT, WITH WASHER

90119-09004-00

$11.49

3

BOLT, WITH WASHER

90119-09011-00

$42.99

4

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

5

PLUG, BLIND 1

8ES-15167-00-00

$11.99

6

O-RING(1HX)

93210-24709-00

$9.49

7

DAMPER

8FA-2139X-00-00

Unavailable

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

BOLT, FLANGE

95817-08055-00

$4.21

11

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

12

BOLT

90109-06185-00

$8.49

13

BOLT, FLANGE

95812-06055-00

$1.75

14

BOLT, FLANGE

95812-06080-00

$8.49

15

BOLT, FLANGE

95817-06080-00

$4.72

16

JOINT

8JH-15319-00-00

Unavailable

17

O-RING(36Y)

93210-13657-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable
