- SR10RSER (SRVIPER RTX SE) 8JW10 2014
TRACK SUSPENSION 1

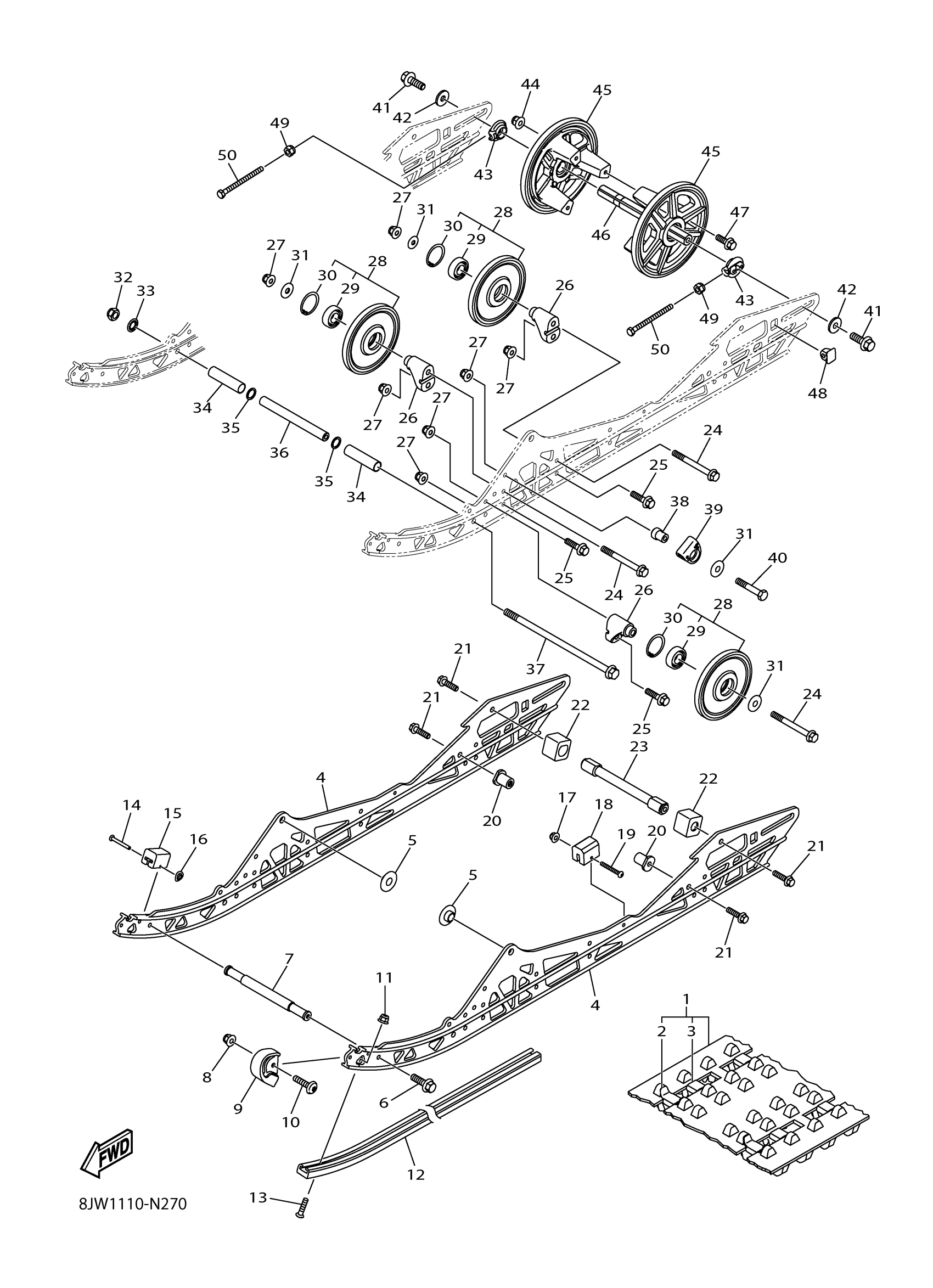

Yamaha SR10RSER (SRVIPER RTX SE) 8JW10 2014 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8JP-G7110-00-00
Unavailable
2
PLATE, REINFORCEME
8JP-G7113-00-00
$4.77
3
METAL, SLIDE
8JP-G7115-00-00
$3.98
4
FRAME, SLIDING
8JW-G741A-00-00
Unavailable
5
COLLAR, 13
8JP-RA725-00-00
$4.14
6
BOLT, FLG. M8X1.25
8JP-RA186-00-00
$0.54
7
SHAFT 3
8JP-G7485-00-00
$53.99
8
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
9
RUNNER, SLIDING 2
8JP-G7422-00-00
Unavailable
10
SCREW, M6X1.0X25
8JP-RA263-00-00
Unavailable
11
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
12
RUNNER, SLIDING 1
8JP-G7421-00-00
$40.99
13
SCREW,MACH-PHFH 1/4-20 X 1 1/8
8JM-RA206-00-00
$1.43
14
RIVET, SOLID - 1/8 X 1.50
8JM-RAY02-00-00
$1.06
15
PAD, SHOCK - RUBBER
8JM-G7456-00-00
$7.49
16
NUT, 0.125
8JP-RA346-00-00
Unavailable
17
NUT, FLG. LOCKING
8JP-RA363-00-00
Unavailable
18
DAMPER 2
8JP-G7457-00-00
Unavailable
19
SCREW, M5X0.8X40
8JP-RA249-00-00
Unavailable
20
NUT
8JP-G7368-00-00
Unavailable
21
BOLT, FLG. M10X1.2
8JP-RA198-00-00
Unavailable
22
STOPPER, CONT. 1
8JP-G745D-00-00
Unavailable
23
SHAFT, PIVOT
8JP-G7337-00-00
Unavailable
24
BOLT, FLG. M8X1.25
8JP-RA192-00-00
Unavailable
25
BOLT, FLG. M8X1.25
8JP-RA188-00-00
Unavailable
26
BRACKET 7
8JP-G7419-00-00
Unavailable
27
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
28
SUSPENSION WHEEL A
8JP-G7310-00-00
Unavailable
29
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
30
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
31
WASHER, 9.12X25.40
8JP-RA452-00-00
Unavailable
32
NUT, HEX. LOCKING
8JP-RA371-00-00
Unavailable
33
WASHER, TOOTH M10
8JP-RA457-00-00
Unavailable
34
COLLAR, 11
8JP-RA723-00-00
Unavailable
35
WASHER, 0.890X1.19
8JP-RA437-00-00
Unavailable
36
COLLAR, 22.2
8JP-RA729-00-00
Unavailable
37
BOLT, FLG. M10-1.2
8JP-RA194-10-00
Unavailable
38
COLLAR
8JP-G7319-00-00
Unavailable
39
HOOK 1
8JP-G7446-00-00
Unavailable
40
BOLT, HEX. M8X1.25
8JP-RA1B2-00-00
Unavailable
41
BOLT, FLG. M10X1.2
8JP-RA198-00-00
Unavailable
42
WASHER, M10X29
8JP-RA453-00-00
Unavailable
43
WHEEL, GUIDE 1
8JP-G7534-00-00
Unavailable
44
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
45
GUIDE WHEEL ASSY
8JP-G7550-01-00
Unavailable
46
AXLE, REAR
8JP-G7521-00-00
Unavailable
47
BOLT, FLG. M6X1.0X
8JP-RA181-00-00
Unavailable
48
BRACKET 5
8JP-G7463-00-00
Unavailable
49
NUT, HEX. LOCKING
8JP-RA372-00-00
Unavailable
50
BOLT, HEX. M8X1.25
8JP-RA1B1-00-00
Unavailable
