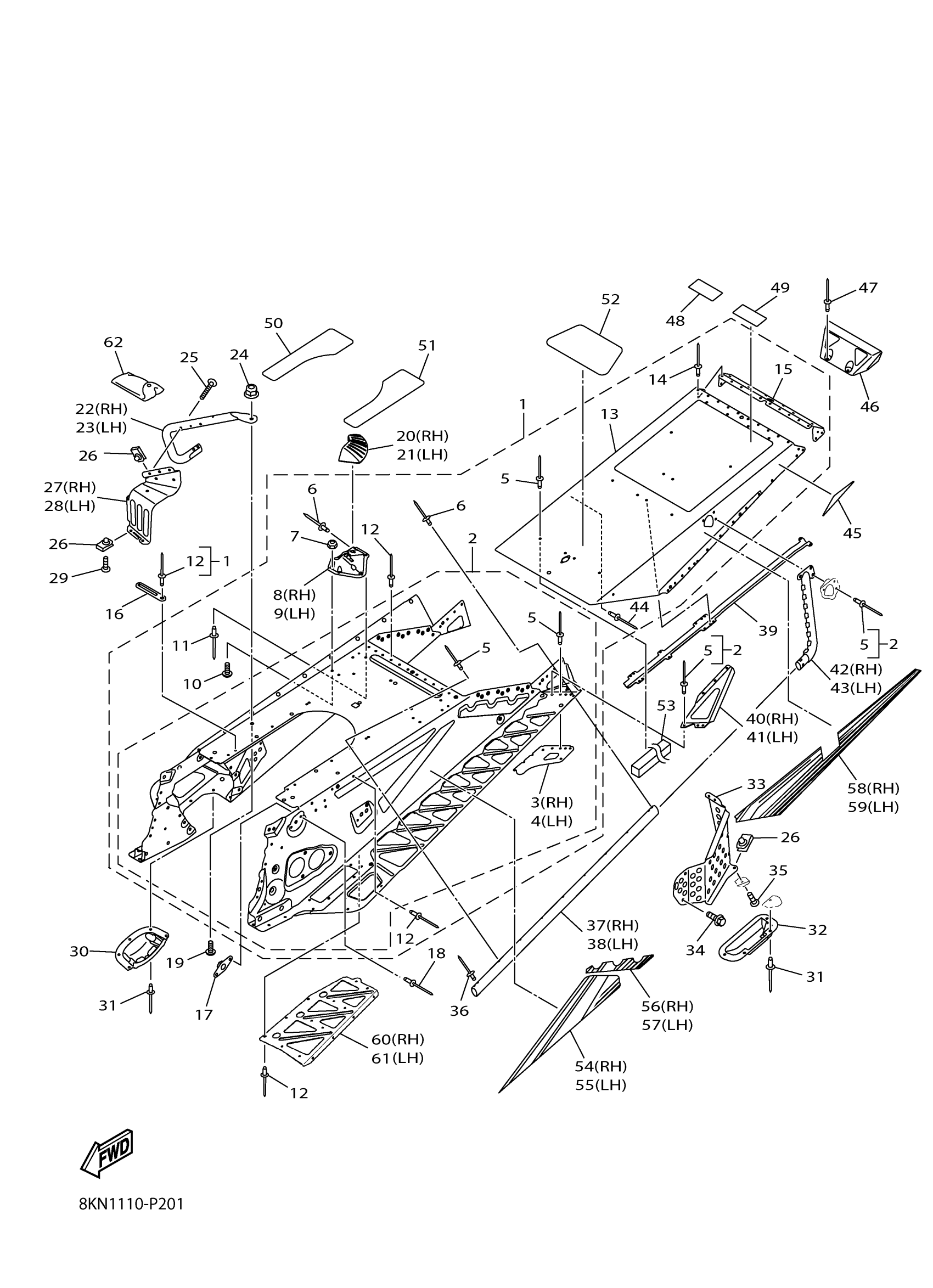

Yamaha SR10RLFO (SRVIPER R TX LE) 8KN1 2015 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8KN-F1950-10-00
Unavailable
2
. PANEL, FRAME
8KN-F1911-10-00
Unavailable
3
BRACKET,RR.TRACK S
8JW-F1954-00-00
$17.99
4
BRACKET,RR.TRACK S
8JW-F1944-00-00
Unavailable
5
RIVET, 11
8JP-RA520-00-00
$0.70
6
RIVET, 3/16
8JP-RA527-00-00
$2.22
7
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
8
BRKT., MEMBER 2
8JW-F115M-00-00
Unavailable
9
. BRACKET, MEMBER 1
8JW-F115L-00-00
Unavailable
10
. SCREW, 5
8JP-RA239-00-00
Unavailable
11
RIVET, 3/16
8JP-RA528-00-00
$2.82
12
RIVET, 17
8JP-RA529-00-00
$0.54
13
. PANEL, SUB FRAME 1
8JW-F1912-00-00
Unavailable
14
RIVET, 18
8JP-RA530-00-00
$0.43
15
REINEFORCEMENT, FR
8JW-F1923-00-00
Unavailable
16
CLAMP, 20
8JP-RAB22-00-00
Unavailable
17
BRACKET
8JP-F1919-00-00
Unavailable
18
RIVET, 12
8JP-RA521-00-00
Unavailable
19
SCREW, M8X1.25X20
8JP-RA272-00-00
Unavailable
20
SUPT., FUEL TANK 2
8JP-F2556-00-00
Unavailable
21
SUPT., FUEL TANK 1
8JP-F2555-00-00
Unavailable
22
REINFORCEMENT, FRA
8JP-F192E-00-00
Unavailable
23
REINFORCEMENT, FRA
8JP-F1929-00-00
Unavailable
24
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
25
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
26
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
27
REINFORCEMENT SUB
8JW-F1996-00-00
Unavailable
28
REINFORCEMENT SUB
8JW-F1995-00-00
Unavailable
29
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
30
PROTECTOR, CHAIN
8JP-F2147-00-00
Unavailable
31
RIVET, 14
8JP-RA523-00-00
Unavailable
32
PROTECTOR, DISK BR
8JP-F5717-00-00
Unavailable
33
PROTECTOR, DISK BR
8JW-F5718-60-00
Unavailable
34
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
35
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
36
RIVET, 3/16
8JP-RA526-00-00
Unavailable
37
REINFORCEMENT, REAR FOOTREST 1
8KN-F1927-10-00
Unavailable
38
REINFORCEMENT, REAR FOOTREST 2
8KN-F1937-10-00
Unavailable
39
PROTECTER, WIRE HA
8JP-H2589-00-00
Unavailable
40
GUSSET
8JW-F1135-00-00
Unavailable
41
GUSSET
8JW-F1134-00-00
Unavailable
42
GUSSET
8JW-F1137-00-00
Unavailable
43
GUSSET
8JW-F1136-00-00
Unavailable
44
RIVET, 20
8JP-RA532-00-00
Unavailable
45
LABEL 1
8JP-F151A-10-00
Unavailable
46
BRACKET, TAILLIGHT
8JW-F117E-10-00
Unavailable
47
RIVET, 8
8JP-RA517-00-00
Unavailable
48
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
49
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
50
PROTECTOR, FRAME 3
8JP-F197C-00-00
Unavailable
51
PROTECTOR, FRAME
8JP-F197B-00-00
Unavailable
52
PROTECTOR, FUEL TA
8JP-F4141-00-00
Unavailable
53
PROTECTOR, FRAME
8JP-F1978-00-00
Unavailable
54
DECAL, FRAME 1
8KN-RAP01-00-00
Unavailable
55
DECAL, FRAME 2
8KN-RAP02-00-00
Unavailable
56
DECAL, FRAME 3
8KN-RAP03-00-00
Unavailable
57
DECAL, FRAME 4
8KN-RAP04-00-00
Unavailable
58
DECAL, FRAME 5
8KN-RAP05-10-00
Unavailable
59
DECAL, FRAME 6
8KN-RAP06-10-00
Unavailable
60
REINEFORCEMENT, FR
8KN-F1921-00-00
Unavailable
61
REINFORCEMENT, FRA
8KN-F1931-00-00
Unavailable
62
TOOL KIT
8JP-F8100-10-00
Unavailable
