- SR10RLFL (SRVIPER R TX LE) 8KN3 2015
TRACK SUSPENSION 2

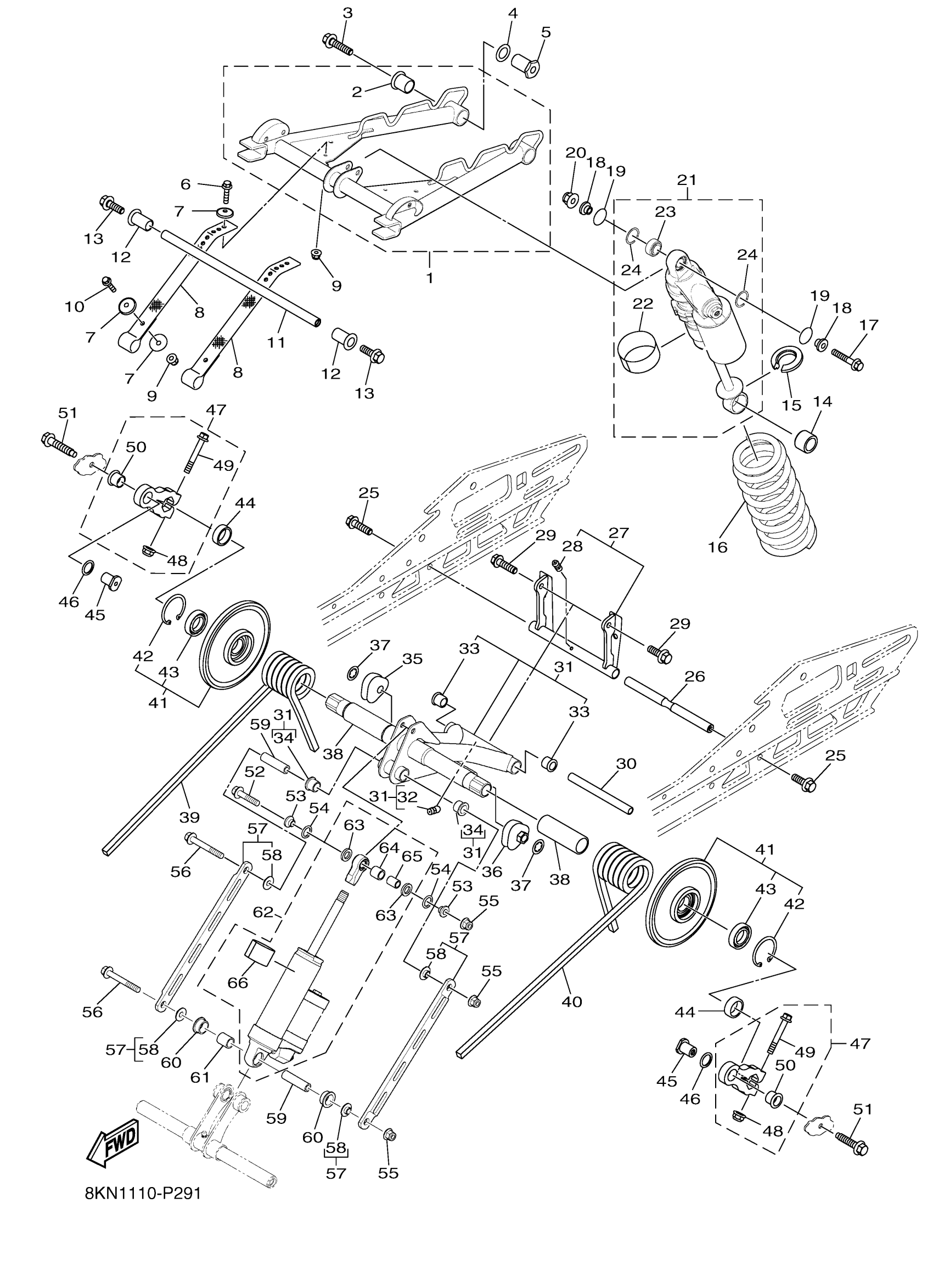

Yamaha SR10RLFL (SRVIPER R TX LE) 8KN3 2015 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8KN-G7331-00-00
Unavailable
2
BUSH,PIVOT
8KN-G7371-00-00
Unavailable
3
BOLT, FLANGE 3
8KN-RA1B8-00-00
$6.99
4
WASHER, 1.00X1.43X
8JP-RA439-00-00
$10.49
5
NUT, PIVOT
8KN-RA380-00-00
Unavailable
6
BOLT, FLG. M6X1.0X
8JP-RA182-00-00
$0.75
7
WASHER , PIVOT
8KN-RA470-00-00
Unavailable
8
STOPPER 1
8JP-G7495-00-00
$18.99
9
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
10
BOLT FLANGE M6X1.0X
8KN-RA183-00-00
Unavailable
11
SHAFT 1
8KN-G7465-00-00
$123.99
12
BUSH, 4
8KN-RA805-00-00
Unavailable
13
BOLT, FLG. M10X1.2
8KN-RA1A0-00-00
$15.99
14
BUSH, SHOCK
8KN-RA819-00-00
$12.49
15
GUIDE, SPRING 1
8JP-F2214-00-00
$8.49
16
SPRING
8KN-G7336-00-00
Unavailable
17
BOLT, FLG. M10X1.2
8JP-RA1A2-10-00
Unavailable
18
COLLAR, SHOCK EYE
8JP-RA738-00-00
Unavailable
19
O-RING, 5/8
8JP-RAF11-00-00
Unavailable
20
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
21
DAMPER SUB ASY
8KN-F2201-00-00
Unavailable
22
.. LABEL, WARNING
8KN-F2259-70-00
Unavailable
23
BEARING, SHOCK EYE
8KN-RAG09-10-00
Unavailable
24
CIRCLIP, SHOCK EYE
8KN-RAH12-10-00
Unavailable
25
BOLT, FLG. M10X1.2
8JP-RA199-00-00
Unavailable
26
SHAFT 6
8JP-G7488-10-00
Unavailable
27
BRACKET 3
8JP-G7417-00-00
Unavailable
28
NIPPLE, GREASE 1
8JP-RAL01-00-00
Unavailable
29
BOLT, FLG. M10X1.2
8JP-RA1A0-00-00
Unavailable
30
SHAFT 5
8JR-G7487-00-00
Unavailable
31
ARM, PIVOT 2
8KN-G7332-00-00
Unavailable
32
NIPPLE, GREASE 1
8JP-RAL01-00-00
Unavailable
33
.. BUSH, 0628
8KN-RA808-00-00
Unavailable
34
.. BUSH, FLANGE
8JP-RA818-00-00
Unavailable
35
BLOCK, SPRING-ADJUSTER-RH
8JM-G7448-00-00
Unavailable
36
BLOCK, SPRING-ADJUSTER-LH
8JM-G7447-00-00
Unavailable
37
RING,RETAINING-ADJ BLOCK 9/16
8JM-RA315-00-00
Unavailable
38
PROTECTOR
8KN-G7445-00-00
Unavailable
39
SPRING, REAR 2
8JP-G7474-00-00
Unavailable
40
SPRING, REAR 1
8JP-G7473-00-00
Unavailable
41
WHEEL, SUSPENSION
8JP-G7312-00-00
Unavailable
42
CIRCLIP, 2
8JP-RAH04-00-00
Unavailable
43
BEARING, 2
8JP-RAG03-00-00
Unavailable
44
COLLAR, 12.81
8KN-RA727-00-00
Unavailable
45
NUT
8JP-G7368-00-00
Unavailable
46
WASHER, 0.035
8JP-RA436-00-00
Unavailable
47
ARM,REAR PIVOT 1
8KN-G7361-00-00
Unavailable
48
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
49
BOLT, FLG. M8X1.25
8JP-RA191-00-00
Unavailable
50
BUSH, 12FDU12
8JP-RA813-00-00
Unavailable
51
BOLT, FLG. M10X1.2
8JP-RA196-00-00
Unavailable
52
BOLT, FLG. M10X1.2
8JP-RA1A2-10-00
Unavailable
53
COLLAR, SHOCK EYE
8JP-RA738-00-00
Unavailable
54
O-RING, 5/8
8JP-RAF11-00-00
Unavailable
55
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
56
BOLT, FLG
8JP-RA1B4-00-00
Unavailable
57
ROD, RELAY
8KN-G7494-00-00
Unavailable
58
COLLAR, 13
8JP-RA725-00-00
Unavailable
59
COLLAR, 12
8KN-RA724-00-00
Unavailable
60
BUSH, SHOCK
8KN-RA819-10-00
Unavailable
61
BUSH, SHOCK
8KN-RA819-20-00
Unavailable
62
SHOCK ABSORBER
8KN-G7480-00-00
Unavailable
63
WASHER, SEAT 1
8KN-RA459-00-00
Unavailable
64
BUSH, SHOCK
8KN-RA819-30-00
Unavailable
65
.. COLLAR, 145
8KN-RA728-00-00
Unavailable
66
.. LABEL, WARNING
8KN-F2259-70-00
Unavailable
