- SR10RLFL (SRVIPER R TX LE) 8KN3 2015
TRACK SUSPENSION 1

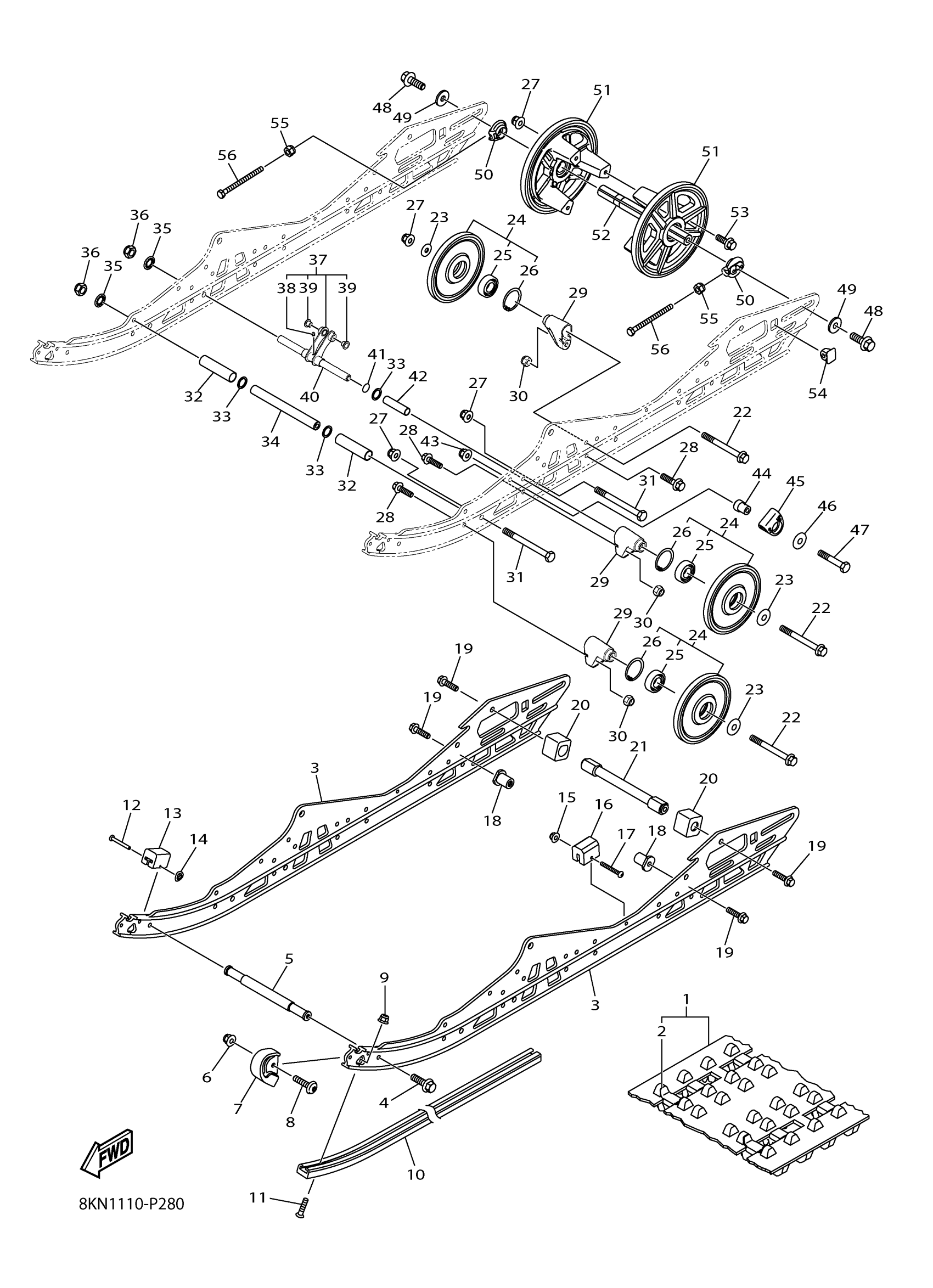

Yamaha SR10RLFL (SRVIPER R TX LE) 8KN3 2015 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASY
8KN-G7110-01-00
Unavailable
2
PLATE, REINFORCEME
8JP-G7113-00-00
$4.77
3
FRAME, SLIDING
8KN-G741A-20-00
$244.99
4
BOLT, FLG. M8X1.25
8JP-RA186-00-00
$0.54
5
SHAFT 3
8JP-G7485-00-00
$53.99
6
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
7
RUNNER, SLIDING 2
8JP-G7422-00-00
Unavailable
8
SCREW, M6X1.0X25
8JP-RA263-00-00
Unavailable
9
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
10
RUNNER,SLIDING 1
8KN-G7421-00-00
Unavailable
11
SCREW,MACH-PHFH 1/4-20 X 1 1/8
8JM-RA206-00-00
$1.43
12
RIVET, SOLID - 1/8 X 1.50
8JM-RAY02-00-00
$1.06
13
PAD, SHOCK - RUBBER
8JM-G7456-00-00
$7.49
14
NUT, 0.125
8JP-RA346-00-00
$1.64
15
NUT, FLG. LOCKING
8JP-RA363-00-00
$1.16
16
DAMPER 2
8JP-G7457-00-00
Unavailable
17
SCREW, M5X0.8X40
8JP-RA249-00-00
Unavailable
18
NUT
8JP-G7368-00-00
Unavailable
19
BOLT, FLG. M10X1.2
8JP-RA198-00-00
Unavailable
20
STOPPER, CONT. 1
8JP-G745D-00-00
Unavailable
21
SHAFT, PIVOT
8JP-G7337-00-00
Unavailable
22
BOLT, FLANGE 1
8JP-RA1B5-00-00
Unavailable
23
WASHER, 9
8JP-RA466-00-00
Unavailable
24
SUSPENSION WHEEL A
8JP-G7310-10-00
Unavailable
25
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
26
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
27
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
28
BOLT, FLANGE 2
8JP-RA1B6-00-00
Unavailable
29
BRACKET 7
8JP-G7419-10-00
Unavailable
30
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
31
BOLT, FLG. M10-1.2
8JP-RA194-10-00
Unavailable
32
COLLAR, 11
8JP-RA723-00-00
Unavailable
33
WASHER, 0.890X1.19
8JP-RA437-00-00
Unavailable
34
COLLAR, 22.2
8KN-RA729-00-00
Unavailable
35
WASHER, TOOTH M10
8JP-RA457-00-00
Unavailable
36
NUT, HEX. LOCKING
8JP-RA371-00-00
Unavailable
37
BRACKET,ARM PIVOT
8KN-G7349-00-00
Unavailable
38
. NIPPLE, GREASE 1
8JP-RAL01-10-00
Unavailable
39
.. BUSH, FLANGE
8JP-RA818-00-00
Unavailable
40
COLLAR, 22.2
8JP-RA729-00-00
Unavailable
41
O-RING, SHOCK EYE
8JP-RAF14-00-00
Unavailable
42
COLLAR 18
8KN-RA734-00-00
Unavailable
43
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
44
COLLAR
8JP-G7319-00-00
Unavailable
45
HOOK 1
8JP-G7446-00-00
Unavailable
46
WASHER, 9.12X25.40
8JP-RA452-00-00
Unavailable
47
BOLT, HEXAGON
8JP-RA1B7-00-00
Unavailable
48
BOLT, FLG. M10X1.2
8JP-RA199-00-00
Unavailable
49
WASHER, M10X29
8JP-RA453-00-00
Unavailable
50
WHEEL, GUIDE 1
8JP-G7534-00-00
Unavailable
51
GUIDE WHEEL ASSY
8JP-G7550-01-00
Unavailable
52
AXLE, REAR
8JP-G7521-00-00
Unavailable
53
BOLT, FLG. M6X1.0X
8JP-RA181-00-00
Unavailable
54
BRACKET 5
8JP-G7463-00-00
Unavailable
55
NUT, HEX. LOCKING
8JP-RA372-00-00
Unavailable
56
BOLT, HEX. M8X1.25
8JP-RA1B1-00-00
Unavailable
