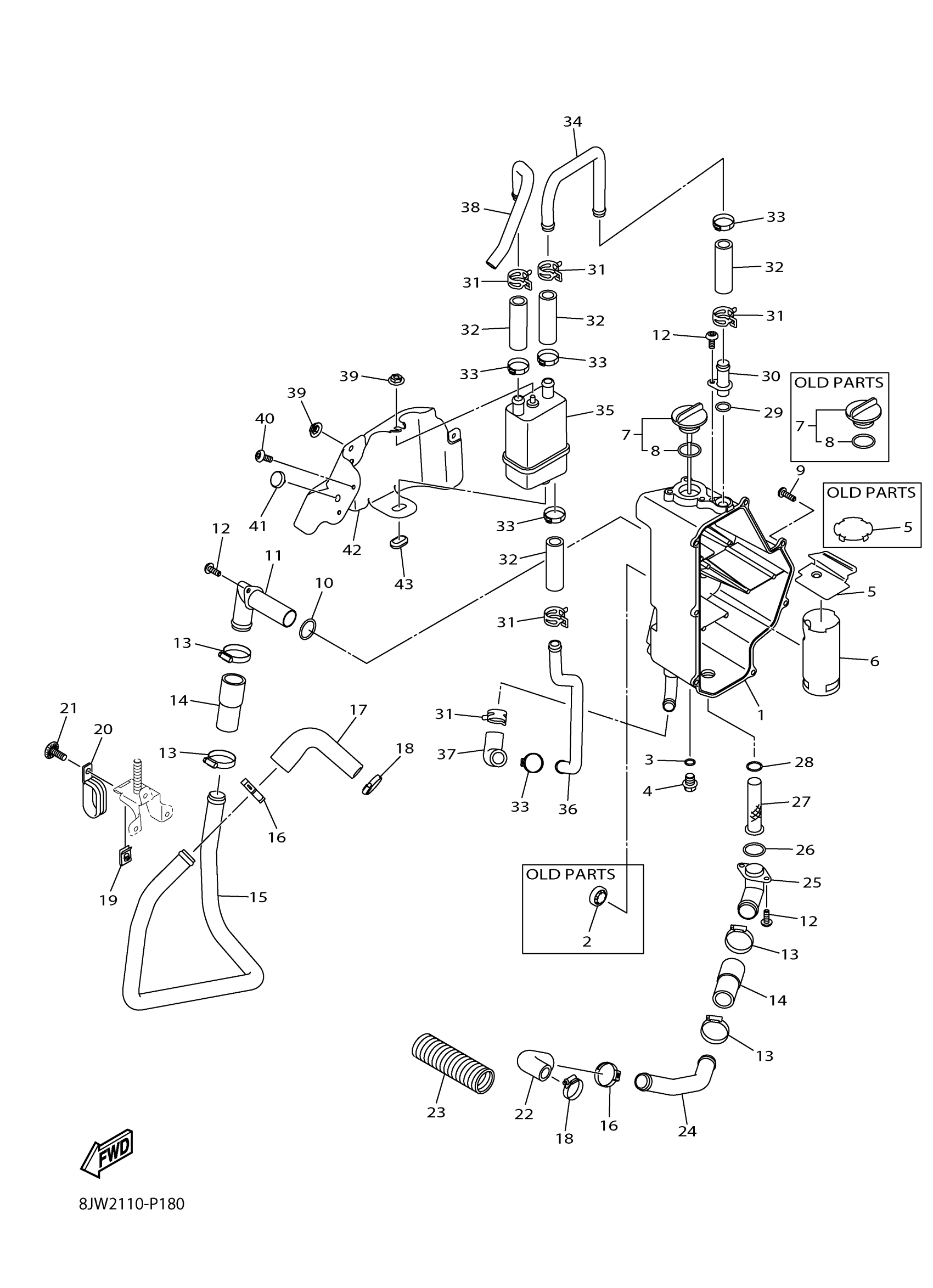

Yamaha SR10RLFL (SRVIPER R TX LE) 8KN3 2015 OIL TANK Diagram
#
1
TANK, OIL
8JP-F1751-10-00
$389.99
1
TANK, OIL
8JP-F1751-10-00
$389.99
2
LENS, LEVEL GAUGE
8JP-F1764-00-00
Unavailable
3
O-RING, 3
8JP-RAF05-00-00
$0.54
4
PLUG, DRAIN
8JP-F15A1-00-00
$16.99
5
CAP
8JP-F2117-00-00
Unavailable
5
PLATE, BAFFLE
8KG-F2944-00-00
Unavailable
6
PIPE, OIL
8JP-F4319-00-00
Unavailable
7
OIL TANK CAP ASSY
8JP-F1770-00-00
Unavailable
7
PLUG,OIL LEVEL
8KG-E5362-00-00
Unavailable
8
O-RING, 4
8JP-RAF06-00-00
$2.87
9
SCREW, TAPPING M6X
8JP-RA283-00-00
$1.43
10
O-RING, 0.984
8JP-RAF13-00-00
$0.96
11
PIPE, OIL
8JP-F1766-00-00
$31.99
12
SCREW, TAPPING M6X
8JP-RA282-00-00
$2.12
13
CLAMP, 24
8JP-RAB26-00-00
Unavailable
14
HOSE, 1
8JP-RA905-00-00
Unavailable
15
HOSE, OIL 1
8JP-E3464-00-00
Unavailable
16
CLAMP, 15
8JP-RAB17-00-00
Unavailable
17
PIPE,OIL 1
8JP-E7021-00-00
Unavailable
18
CLAMP, 9
8JP-RAB11-00-00
Unavailable
19
NUT, CLIP 10
8JP-RA352-00-00
Unavailable
20
CLAMP
8JP-F1338-00-00
Unavailable
21
SCREW, TAPPING 1/4
8KC-RA202-00-00
Unavailable
22
HOSE 3
8JP-E2578-00-00
Unavailable
23
HOSE 4 (5 FEET)
8JP-E2579-00-00
Unavailable
24
PIPE 1
8JP-F1816-00-00
Unavailable
25
PIPE 2
8JP-F1817-00-00
Unavailable
26
O-RING, 5
8JP-RAF07-00-00
Unavailable
27
STRAINER
8JP-F4167-00-00
Unavailable
27
STRAINER
8JP-F4167-10-00
Unavailable
28
O-RING, 3/4
8JP-RAF09-00-00
Unavailable
29
O-RING, 5/8
8JP-RAF11-00-00
Unavailable
30
PIPE, OIL 1
8JP-E3416-00-00
Unavailable
31
CLAMP, 14
8JP-RAB16-00-00
Unavailable
32
HOSE, 2
8JP-RA906-00-00
Unavailable
33
CLAMP, 16
8JP-RAB18-00-00
Unavailable
34
PIPE, OIL 2
8JP-E3418-00-00
Unavailable
35
SEPERATOR, OIL
8JP-E1164-01-00
Unavailable
36
PIPE, OIL
8JP-E5112-00-00
Unavailable
37
HOSE, OIL 2
8JP-E3465-00-00
Unavailable
38
PIPE,OIL 2
8JP-E7022-00-00
Unavailable
39
NUT, FLANGE 1/4
8JP-RA356-00-00
Unavailable
40
SCREW, M5X1.0X10
8JP-RA250-00-00
Unavailable
41
DAMPER, RADIATOR
8JP-E2465-00-00
Unavailable
42
SHIELD, HEAT
8JP-F3892-00-00
Unavailable
43
GROMMET
8JP-F1719-00-00
Unavailable
