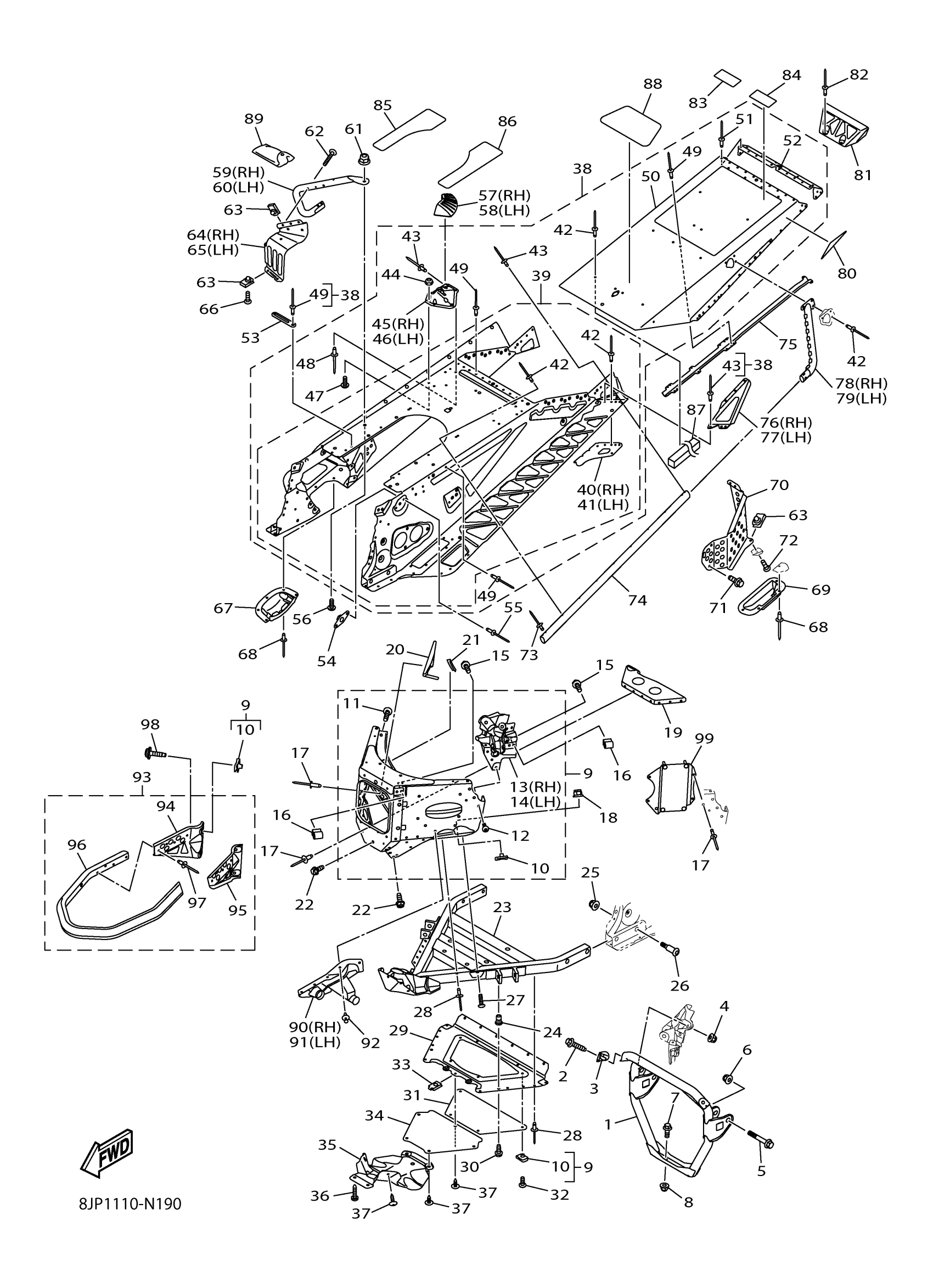

Yamaha SR10REB (SRVIPER RTX) 8JP1 2014 FRAME Diagram
#
1
BRACKET, ENGINE
8JP-F194E-20-00
$246.99
2
BOLT, FLG. M8X1.25
8JP-RA188-00-00
Unavailable
3
INSERT
8JP-F3775-00-00
Unavailable
4
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
5
BOLT, FLANGE M12X1.25X75
8JP-RA1A5-00-00
Unavailable
6
NUT, FLG. LOCKING
8JP-RA362-00-00
$1.75
7
BOLT, FLANGE M10X1.25X25
8JP-RA195-00-00
Unavailable
8
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
9
BULKHEAD
8JP-F191A-10-00
$334.99
10
NUT, CLIP M6
8JP-RA354-00-00
$0.96
11
. SCREW, TAPPING
8JP-RA281-00-00
Unavailable
12
SCREW, M6X1X16
8JP-RA271-00-00
$0.96
13
. HOLDER, ABSORBER 2
8JP-F377J-00-00
Unavailable
14
HOLDER, ABSORBER
8JP-F376J-00-00
$105.99
15
BOLT, FLG. M6X1.0X
8JP-RA180-00-00
Unavailable
16
BRACKET, UPPER
8JP-F2219-00-00
Unavailable
17
RIVET, 11
8JP-RA520-00-00
Unavailable
18
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
19
REINFORCEMENT FRAME KIT
SMA-8JPST-BR-KT
Unavailable
20
BRACKET, STOPPER S
8JP-F131G-00-00
Unavailable
21
TRIM (3 FEET)
8JP-F15B3-00-00
Unavailable
22
SCREW, TAPPING 1/4
8JP-RA279-00-00
Unavailable
23
FRAME UNDER 1
8KC-F196A-10-00
Unavailable
24
. NUT, HEXAGON
8JP-RA331-00-00
Unavailable
25
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
26
SCREW, M8X1.25X44.
8JP-RA275-00-00
Unavailable
27
SCREW, M6X1.0X20
8JP-RA258-00-00
Unavailable
28
RIVET, 9
8JP-RA518-00-00
Unavailable
29
FRAME, UNDER 2
8JP-F196E-00-00
Unavailable
30
SCREW, M5X0.8X20
8JP-RA245-00-00
Unavailable
31
COVER, UNDER
8JP-F2863-00-00
Unavailable
32
SCREW, M6X1.0X16
8JP-RA255-00-00
Unavailable
33
NUT, CLIP
8JP-RA349-00-00
Unavailable
34
PANEL, UNDER
8JP-F114G-00-00
Unavailable
35
COVER, FRONT
8JP-F2865-00-00
Unavailable
36
SCREW, M5X0.8X25
8JP-RA246-00-00
Unavailable
37
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
38
REAR FRAME COMP.
8JP-F1950-00-00
Unavailable
39
. PANEL, FRAME
8JP-F1911-00-00
Unavailable
40
BRACKET,RR.TRACK S
8JP-F1954-00-00
Unavailable
41
.... BRACKET, REAR TRACK SUSPENSION
8JP-F1944-00-00
Unavailable
42
RIVET, 9
8JP-RA518-00-00
Unavailable
43
RIVET, 3/16
8JP-RA527-00-00
Unavailable
44
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
45
.. BRACKET, MEMBER 2
8JP-F115M-00-00
Unavailable
46
BRACKET, MEMBER 1
8JP-F115L-00-00
Unavailable
47
. SCREW, 5
8JP-RA239-00-00
Unavailable
48
RIVET, 3/16
8JP-RA528-00-00
Unavailable
49
RIVET, 8
8JP-RA517-00-00
Unavailable
50
. PANEL, SUB FRAME 1
8JP-F1912-00-00
Unavailable
51
RIVET, 5
8JP-RA514-00-00
Unavailable
52
. REINEFORCEMENT, FRAME REAR 1
8JP-F1923-00-00
Unavailable
53
CLAMP, 18
8JP-RAB20-00-00
Unavailable
54
BRACKET
8JP-F1919-00-00
Unavailable
55
RIVET, 10
8JP-RA519-00-00
Unavailable
56
SCREW, M8X1.25X20
8JP-RA272-00-00
Unavailable
57
SUPT., FUEL TANK 2
8JP-F2556-00-00
Unavailable
58
SUPT., FUEL TANK 1
8JP-F2555-00-00
Unavailable
59
REINFORCEMENT, FRA
8JP-F192E-00-00
Unavailable
60
REINFORCEMENT, FRA
8JP-F1929-00-00
Unavailable
61
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
62
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
63
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
64
REINFORCEMENT SUB
8JP-F1996-00-00
Unavailable
65
REINFORCEMENT SUB
8JP-F1995-00-00
Unavailable
66
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
67
PROTECTOR, CHAIN
8JP-F2147-00-00
Unavailable
68
RIVET, 14
8JP-RA523-00-00
Unavailable
69
PROTECTOR, DISK BR
8JP-F5717-00-00
Unavailable
70
PROTECTOR, DISC BRAKE
8JP-F5718-00-00
Unavailable
71
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
72
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
73
RIVET, 3/16
8JP-RA526-00-00
Unavailable
74
REINFORCEMENT, FOOTREST 1
8JP-F1926-00-00
Unavailable
75
PROTECTER, WIRE HA
8JP-H2589-00-00
Unavailable
76
GUSSET, RUNNING BOARD (R.H.)
8JP-F1135-00-00
Unavailable
77
GUSSET, RUNNING BOARD (L.H.)
8JP-F1134-00-00
Unavailable
78
GUSSET, TUNNEL ROLL (R.H.)
8JP-F1137-00-00
Unavailable
79
GUSSET, TUNNEL ROL
8JP-F1136-00-00
Unavailable
80
LABEL 1
8JP-F151A-10-00
Unavailable
81
BRACKET, TAILLIGHT
8JP-F117E-00-00
Unavailable
82
RIVET, 8
8JP-RA517-00-00
Unavailable
83
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
84
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
85
PROTECTOR, FRAME 3
8JP-F197C-00-00
Unavailable
86
PROTECTOR, FRAME
8JP-F197B-00-00
Unavailable
87
PROTECTOR, FRAME
8JP-F1978-00-00
Unavailable
88
PROTECTOR, FUEL TA
8JP-F4141-00-00
Unavailable
89
TOOL KIT
8JP-F8100-00-00
Unavailable
90
COVER 3
8JP-F198J-00-00
Unavailable
91
COVER 1
8JP-F198F-00-00
Unavailable
92
RIVET, 2
8JP-RA511-00-00
Unavailable
93
FRONT BUMPER COMP.
8JP-K7510-00-00
Unavailable
94
. BRACKET, FRONT BUMPER 2
8JP-F1959-00-00
Unavailable
95
. BRACKET, FRONT BUMPER 1
8JP-F1949-00-00
Unavailable
96
. BUMPER, FRONT 1
8JP-K7511-00-00
Unavailable
97
RIVET, 11
8JP-RA520-00-00
Unavailable
98
SCREW, M6X18
8JP-RA270-00-00
Unavailable
99
BRACKET, UNIT
8JP-H5991-00-00
Unavailable
