Description

Price

1

CYLINDER HEAD ASSY

8KH-11101-09-00

Unavailable

2

BOLT, FLANGE

95022-08012-00

$12.49

3

GASKET

90430-08119-00

$6.62

4

GUIDE, VALVE 1

2C0-11133-11-00

$61.99

5

GUIDE, VALVE 2

8HF-11134-10-00

$99.99

6

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

PIN, DOWEL(3XW)

91808-16023-00

$8.49

9

BOLT, WASHER BASED

90105-06027-00

$7.49

10

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

11

BOLT, WITH WASHER

90119-10004-00

$12.49

12

COVER, CYLINDER HE

8KH-11191-00-00

Unavailable

13

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

14

GASKET, HEAD COVER

2HC-11193-00-00

$25.99

15

PLUG, OIL

3Y1-15363-10-00

$18.49

16

O-RING (646)

93210-19123-00

Unavailable

17

BOLT(4BP)

90109-066F0-00

Unavailable

18

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

19

GASKET, CYLINDER HEAD 1

8GL-11181-20-00

Unavailable

20

BOLT, SOCKET

91317-06065-00

Unavailable

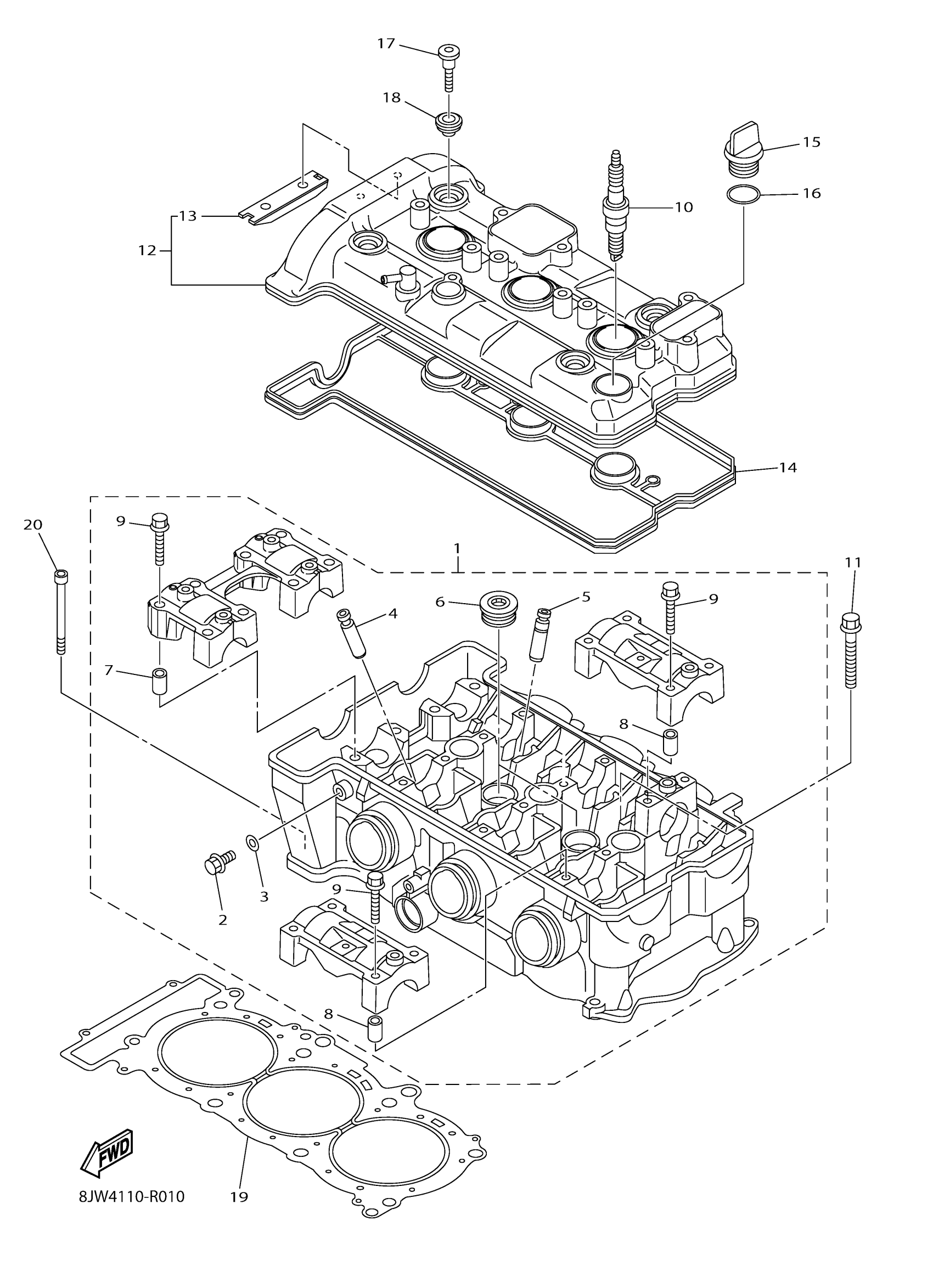

Yamaha SR10RDGR (SRVIPER R TX DX) 8JP30 2016 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

BOLT, FLANGE

GASKET

GUIDE, VALVE 1

GUIDE, VALVE 2

PLUG, STRAIGHT SCREW

PIN, DOWEL(3XW)

PIN, DOWEL(3XW)

BOLT, WASHER BASED

CR9E NGK SPLUG 4PK

BOLT, WITH WASHER

COVER, CYLINDER HE

GUIDE, STOPPER 2

GASKET, HEAD COVER

PLUG, OIL

O-RING (646)

BOLT(4BP)

RUBBER, MOUNT 1

GASKET, CYLINDER HEAD 1

BOLT, SOCKET
