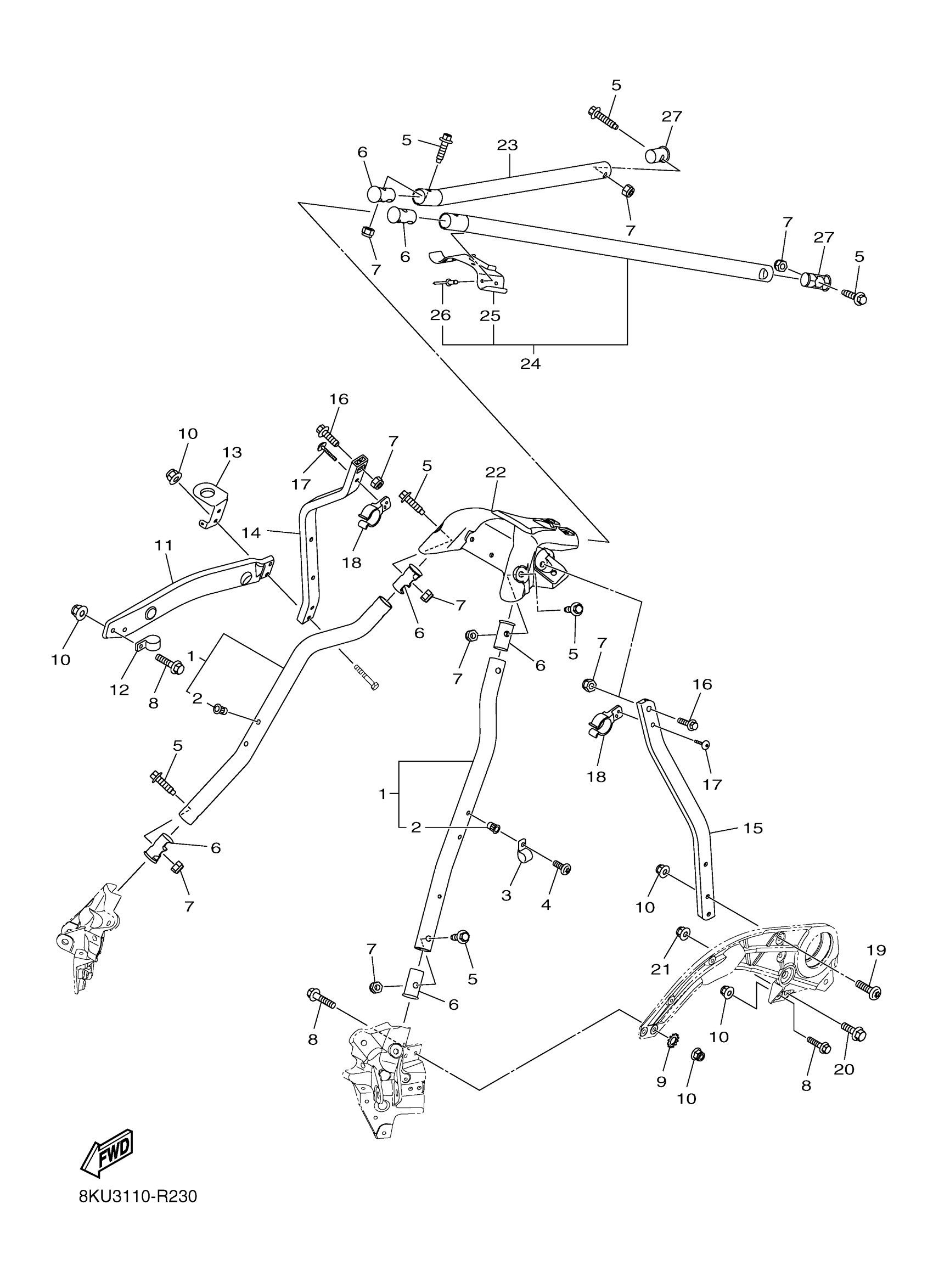

Yamaha SR10MS62GR (SRVIPER M TX 162 SE) 8KT30 2016 STEERING GATE Diagram
#
Description
Price
1
PIPE, CROSS 6
8JP-F119A-00-00
$44.99
2
. NUT, HEXAGON
8JP-RA331-00-00
Unavailable
3
CLAMP, 5
8JP-RAB07-00-00
Unavailable
4
SCREW, 11
8JP-RA2A0-00-00
Unavailable
5
BOLT, FLG. M8X1.25
8KU-RA187-00-00
$1.86
6
CAP, MAIN PIPE
8JP-F111A-20-00
$5.49
7
NUT, HEX. LOCKING
8JP-RA371-00-00
$1.16
8
BOLT, FLG. M6X1.0X
8JP-RA182-00-00
$0.75
9
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
$0.27
10
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
11
GUSSET
8JP-F1113-10-00
Unavailable
12
CLAMP, 3
8JP-RAB05-00-00
Unavailable
13
BRACKET 5
8JP-F112K-00-00
$28.99
14
MEMBER, SIDE 1
8JP-F111J-00-00
$154.99
15
MEMBER, SIDE 2
8JP-F111K-00-00
Unavailable
16
BOLT, FLG. M8X1.25
8JP-RA185-00-00
Unavailable
17
SCREW, 10-12X1.00
8KC-RA288-00-00
Unavailable
18
CLIP
8JP-F11C2-00-00
Unavailable
19
SCREW, M6X1.0X30
8JP-RA266-00-00
Unavailable
20
BOLT, FLANGE M8-1.25X25
8JM-RA102-00-00
Unavailable
21
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
22
GATE, STEERING
8JP-F3871-00-00
Unavailable
23
PIPE, CROSS, 7
8JP-F119E-10-00
Unavailable
24
PIPE CROSS 8
8JP-F119F-10-00
Unavailable
25
. SUPPORT, SEAT
8JP-F114H-00-00
Unavailable
26
RIVET, 5
8JP-RA514-10-00
Unavailable
27
CAP, MAIN PIPE
8JP-F111A-10-00
Unavailable
