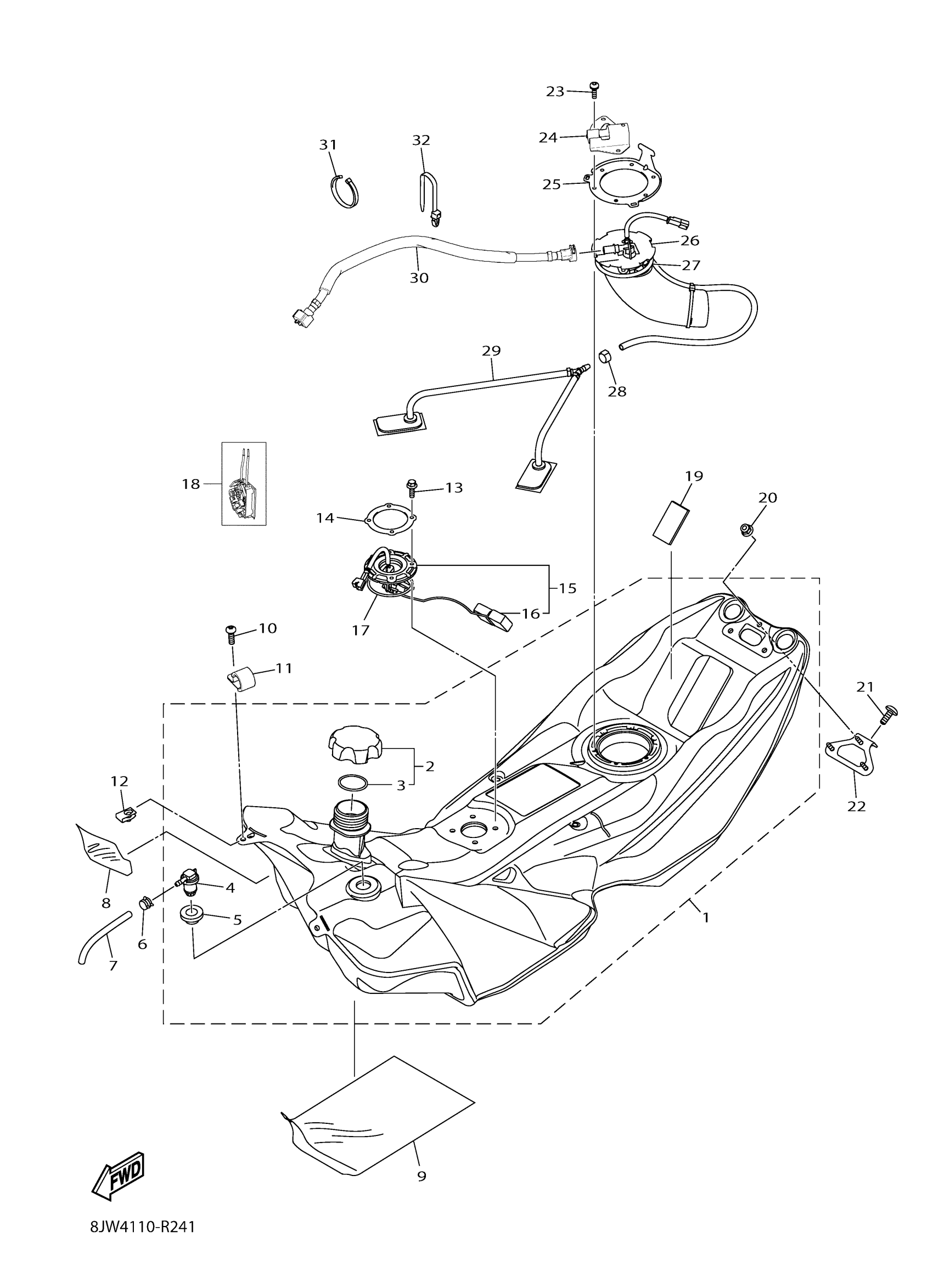

Yamaha SR10MS62GR (SRVIPER M TX 162 SE) 8KT30 2016 FUEL TANK Diagram
#
1
FUEL TANK ASSY
8JP-F4100-00-00
Unavailable
2
CAP ASSY
8JP-F4610-00-00
$15.99
3
SEAL, GAS CAP
8JM-F4641-00-00
Unavailable
4
VALVE, CHECK 1
8JP-F4362-00-00
$44.99
5
GROMMET
8JP-E5366-00-00
$2.97
6
CLAMP, 10
8JP-RAB12-00-00
$0.54
7
HOSE, 3 (50 FEET)
8JP-RA907-00-00
$295.99
7
HOSE, 3 (50 FEET)
8JP-RA907-00-00
$295.99
8
INSULATOR,FUEL TAN
8JP-F416F-01-00
$18.99
9
PROTECTOR,1
8JP-F476U-01-00
Unavailable
10
SCREW, M5X1.0X16
8JP-RA251-00-00
$0.43
11
BRACKET, FILTER
8JP-F4566-10-00
Unavailable
12
NUT, CLIP M5
8JP-RA353-00-00
$3.08
13
BOLT, FLANGE M5X0.8X16
8JP-RA178-00-00
Unavailable
14
PLATE, RETAINER
8JP-K8166-00-00
Unavailable
15
SENDER UNIT ASSY,
8JP-H5752-00-00
Unavailable
16
FLOAT
8JP-H369N-00-00
Unavailable
17
O-RING, 46.9
8JP-RAF10-00-00
Unavailable
18
SENDER ASSY
8LN-H5701-00-00
Unavailable
19
PAD, BATTERY
8JP-H2121-00-00
Unavailable
20
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
21
SCREW, M6X1.0X16
8JP-RA257-00-00
Unavailable
22
BRACKT, TANK FITTI
8JP-F134U-00-00
Unavailable
23
SCREW, M5X0.8X20
8JP-RA242-00-00
Unavailable
24
GUIDE, NOZZLE
8JP-F413K-00-00
Unavailable
25
BRACKET, FUEL PUMP
8JP-F4491-00-00
Unavailable
26
FUEL PUMP COMP.
8JP-E3907-00-00
Unavailable
27
O-RING
8JP-F4486-00-00
Unavailable
28
CLAMP, 25
8JP-RAB27-00-00
Unavailable
29
FILTER, FUEL
8JP-F4502-00-00
Unavailable
30
FUEL PIPE ASSY
8JP-F4310-00-00
Unavailable
31
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
31
CLAMP, 8 (11.75 INCH)
8JP-RAB10-00-00
Unavailable
32
CABLE TIE,PUSH MOUNT-XMAS CLIP
8JM-RAB02-00-00
Unavailable
