Description

Price

1

DAMPER 1

8JP-E4425-00-00

$7.49

2

SCREW, 10-14X3/4

8JP-RA289-00-00

Unavailable

3

PANEL 1

8JP-E441L-00-00

$7.49

4

SILENCER, INTAKE 1

8JP-E4431-10-00

$77.99

5

PLATE, ELEMENT

8JP-E4472-00-00

Unavailable

6

DUCT

8JP-E443A-00-00

Unavailable

8

FILTER 1

8JP-E445E-00-00

Unavailable

9

HOSE, 13 (25 FEET)

8JM-RA902-10-00

$180.99

10

CLAMP, 18

8JP-RAB20-00-00

Unavailable

11

CONNECTOR

8JP-E410G-00-00

Unavailable

12

GROMMET

8JP-E4435-00-00

Unavailable

13

CONNECTOR

8JP-E410F-00-00

Unavailable

14

JOINT, AIR CLEANER

8JP-E4453-00-00

$74.99

15

JOINT, AIR CLEANER

8JP-E4463-00-00

$67.99

16

CLAMP, 4

8JP-RAB06-00-00

$9.49

17

SENSOR, AIR TEMPER

8JP-H5886-00-00

Unavailable

18

. O-RING, 6

8JP-RAF08-00-00

Unavailable

19

SCREW, 10-12X3/4

8KC-RA290-00-00

Unavailable

20

CLAMP, 20

8JP-RAB22-00-00

Unavailable

21

NUT, CLIP

8JP-RA349-00-00

Unavailable

22

JOINT

8GL-13595-00-00

Unavailable

23

HOSE CLAMP ASSY

90450-60004-00

Unavailable

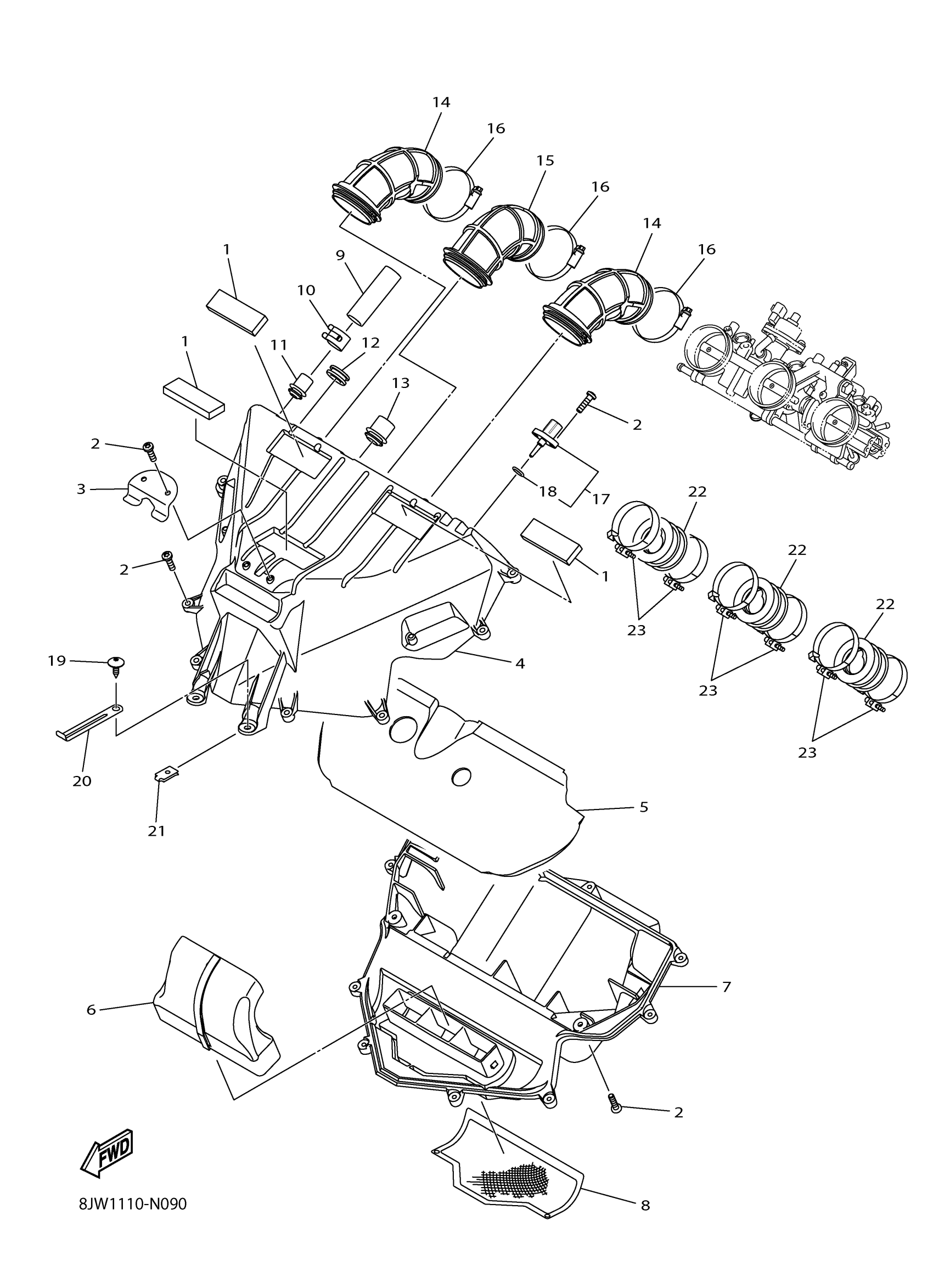

Yamaha SR10MS53HL (SRVIPER M TX 153 SE) 8KS5 2017 INTAKE Diagram

DAMPER 1

SCREW, 10-14X3/4

PANEL 1

SILENCER, INTAKE 1

PLATE, ELEMENT

DUCT

FILTER 1

HOSE, 13 (25 FEET)

CLAMP, 18

CONNECTOR

GROMMET

CONNECTOR

JOINT, AIR CLEANER

JOINT, AIR CLEANER

CLAMP, 4

SENSOR, AIR TEMPER

. O-RING, 6

SCREW, 10-12X3/4

CLAMP, 20

NUT, CLIP

JOINT

HOSE CLAMP ASSY
