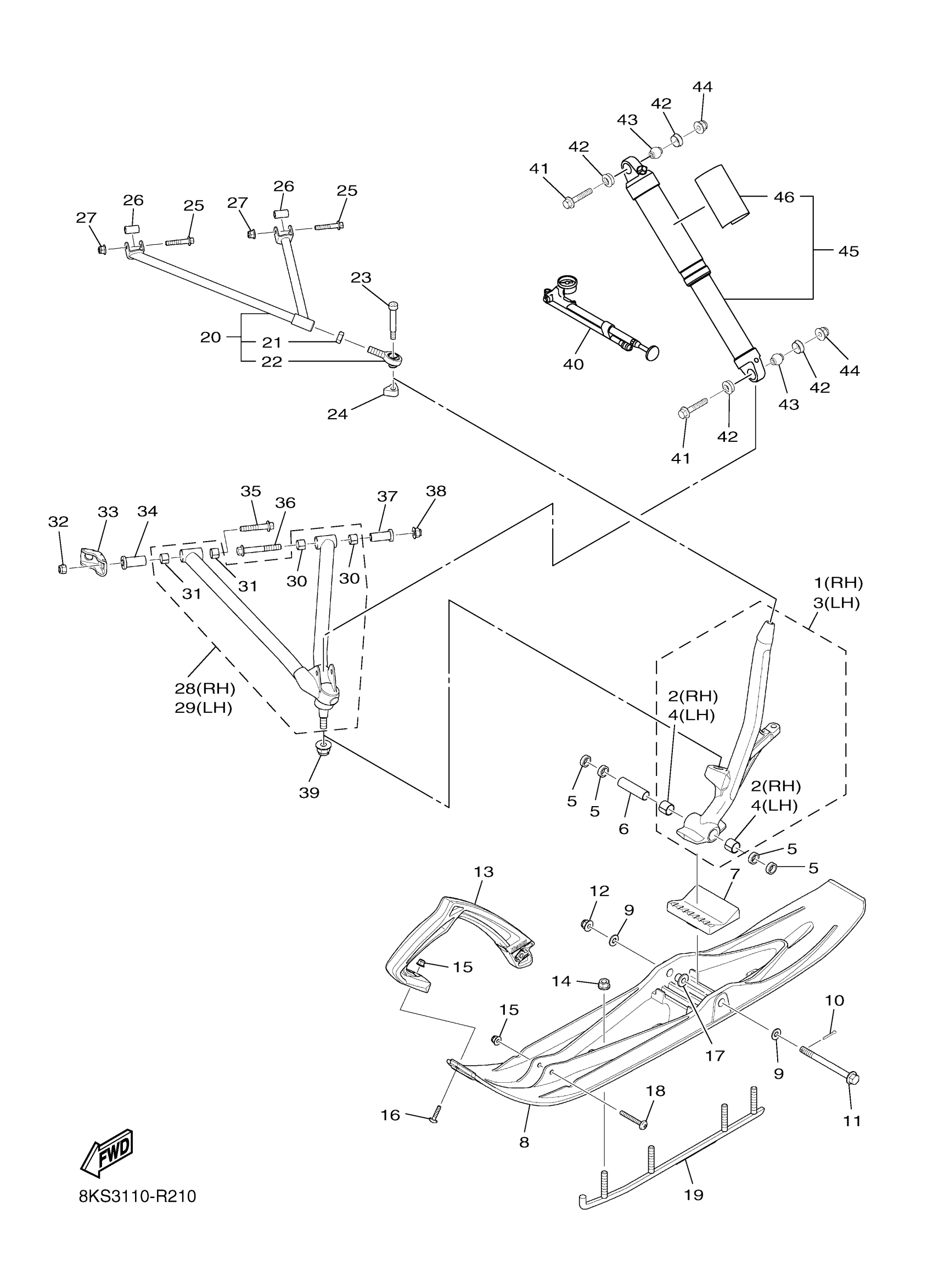

Yamaha SR10MS53GR (SRVIPER M TX 153 SE) 8KS30 2016 SKI Diagram
#
1
KNUCKLE, STEERING 2 (DEEP PURPLISH BLUE SOLID E)
8KU-F3521-20-00
Unavailable
2
BUSH, 12DU12
8JP-RA806-00-00
$10.49
3
KNUCKLE, STEERING 1 (DEEP PURPLISH BLUE SOLID E)
8KU-F3511-20-00
Unavailable
4
BUSH, 12DU12
8JP-RA806-00-00
$10.49
5
COLLAR, 6
8JP-RA718-00-00
$3.40
6
COLLAR, 21
8KU-RA736-00-00
Unavailable
7
STOPPER 1
8KU-F3743-00-00
$18.99
8
SKI 1
8KU-F3711-00-00
$95.99
9
WASHER, 10.98X28.0
8JP-RA443-00-00
$1.28
10
PIN, 1
8JP-RAK01-00-00
$0.43
11
BOLT
8KU-F3753-00-00
Unavailable
12
NUT, FLG. LOCKING
8JP-RA359-00-00
$2.44
13
REINFORCEMENT, HEAD (DEEP PURPLISH BLUE SOLID E)
8JP-F3712-20-00
Unavailable
14
NUT, FLG. LOCKING
8JP-RA358-00-00
$0.80
15
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
16
SCREW, M6X1.0X30
8JP-RA266-00-00
Unavailable
17
COLLAR, 10
8JP-RA722-00-00
Unavailable
18
SCREW, M6X1.0X50
8JP-RA267-00-00
Unavailable
19
RUNNER 1
8JP-F3731-00-00
Unavailable
20
ARM, FRONT UPPER
8KU-F354A-00-00
Unavailable
21
NUT
8KU-F3778-00-00
Unavailable
22
JOINT, UNIVERSAL 1
8KU-F3841-00-00
Unavailable
23
BOLT
8KU-F3767-00-00
Unavailable
24
NUT
8KU-F3856-00-00
Unavailable
25
BOLT,FLG. M8X1.25X45
8KG-RA190-00-00
Unavailable
26
COLLAR 8
8KG-RA720-00-00
Unavailable
27
NUT,SELF-LOCKING M8-1.25
8KG-RA301-00-00
Unavailable
28
ARM,FR. LWR. RH.
8KU-F358A-00-00
Unavailable
29
ARM,FR. LWR. LH.
8KU-F357A-00-00
Unavailable
30
BUSH, 10DU10
8JP-RA807-00-00
Unavailable
31
BUSH, 1815DU
8JP-RA811-00-00
Unavailable
32
NUT, FLG. LOCKING
8JP-RA361-00-00
Unavailable
33
ARM, 1
8JP-F3543-00-00
Unavailable
34
COLLAR, 9
8JP-RA721-00-00
Unavailable
35
BOLT, FLG. M12X1.2
8JP-RA1A7-00-00
Unavailable
36
BOLT, FLG. M10X1.2
8JP-RA1A4-00-00
Unavailable
37
COLLAR 7
8KU-RA719-00-00
Unavailable
38
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
39
NUT, FLG. LOCKING
8JP-RA362-00-00
Unavailable
40
ADJUSTER
8JW-F3703-00-00
Unavailable
41
BOLT, FLG. M8X50
8KG-RA1B9-00-00
Unavailable
42
BUSH, 8
8KG-RA817-00-00
Unavailable
43
COLLAR 12
8KG-RA724-00-00
Unavailable
44
NUT FLANGE LOCKING
8JP-RA360-10-00
Unavailable
45
DAMPER ASSY
8KT-F330E-00-00
Unavailable
46
LABEL 3
8JW-F151F-00-00
Unavailable
