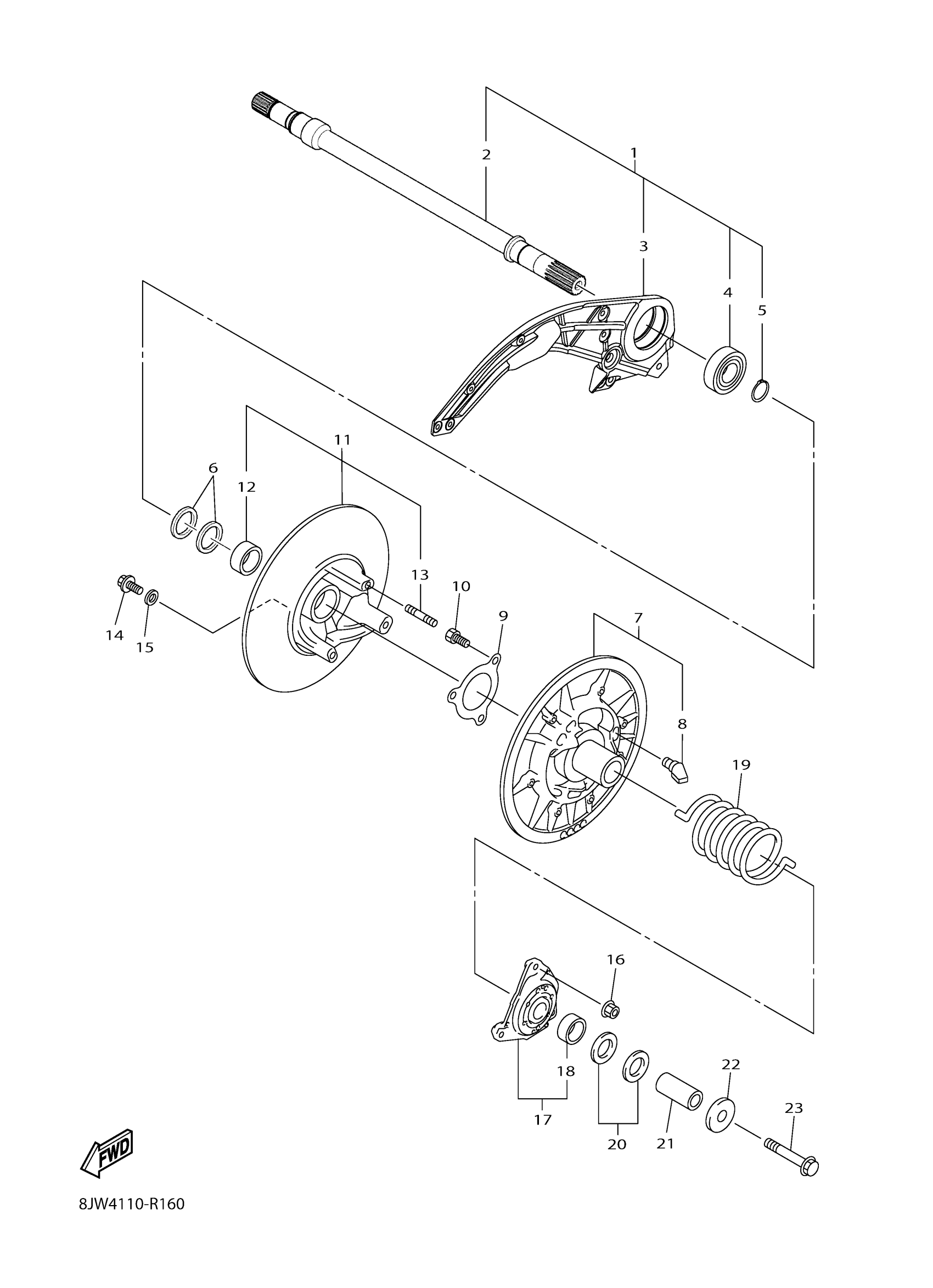

Yamaha SR10MS53GR (SRVIPER M TX 153 SE) 8KS30 2016 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY SHAFT CO

8JP-E7680-10-00

Unavailable

2

. SHAFT, SECONDARY

8JP-E7681-10-00

Unavailable

3

HOUSING, BEARING

8JP-G7631-10-00

$279.99

4

BEARING, 6206

8JP-RAG07-00-00

$42.99

5

CIRCLIP, 1

8JP-RAH03-00-00

$0.96

6

WASHER, 28X40X1

8JP-RA448-00-00

$1.43

6

WASHER, 28X40X2

8JP-RA449-00-00

$1.86

7

SECONDARY FIXED SHEAVE COMP.

8GL-17660-30-00

Unavailable

8

SHOE, RAMP

8AV-17688-10-00

$32.99

9

STOPPER, HOLDER

8BV-17656-00-00

$22.99

10

SCREW, BINDING

98907-06016-00

$9.49

11

SECONDARY SLIDING SHEAVE

8BU-17670-30-00

$239.99

12

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

13

BOLT, STUD 3

95617-08630-00

$4.99

14

BOLT, WASHER BASED(8BN)

90105-06734-00

$3.50

15

WASHER, PLATE (371)

90201-06431-00

Unavailable

15

WASHER, PLATE (22K)

90201-061H1-00

Unavailable

16

NUT(8BN)

90179-08655-00

Unavailable

17

SEAT SPRING SET

8KG-17604-00-00

Unavailable

18

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

19

SPRING, TORSION

90508-60012-00

Unavailable

20

WASHER, 2

8JP-RA433-00-00

Unavailable

20

WASHER, 25X36X1

8JP-RA446-00-00

Unavailable

20

WASHER, 25X36X2

8JP-RA447-00-00

Unavailable

21

COLLAR, 2

8JP-RA714-00-00

Unavailable

22

WASHER, 10.5X33X4

8JP-RA442-00-00

Unavailable

23

BOLT, FLG. M10X1.2

8JP-RA1A6-00-00

Unavailable
