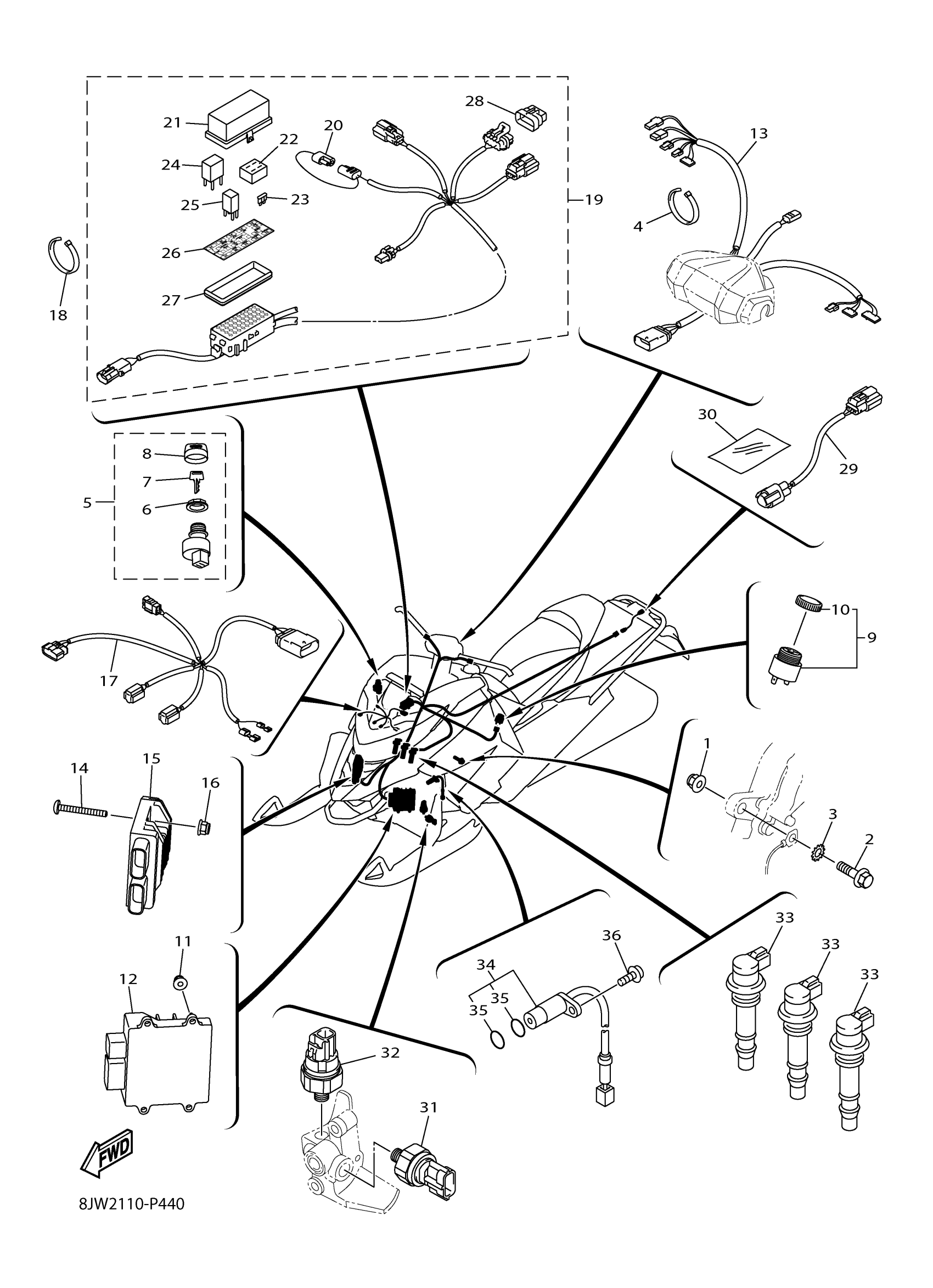

Yamaha SR10MS53GR (SRVIPER M TX 153 SE) 8KS30 2016 ELECTRICAL 1 Diagram
#
1
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
2
BOLT, FLG. M10X1.2
8JP-RA197-00-00
$2.34
3
WASHER, TOOTHED LOCK
8JP-RA456-00-00
Unavailable
4
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
4
CLAMP, 1 (4-INCH)
8JP-RAB03-00-00
Unavailable
5
MAIN SWITCH ASSY
8JP-H2510-00-00
$53.99
6
. NUT, MAIN SWITCH
8JP-H2569-00-00
Unavailable
7
KEY (Y SERIESE, LE
8JP-H2511-00-00
$8.49
7
KEY (Z SERIES, RIG
8JP-H2511-10-00
$7.49
8
CAP, KEY
8JP-H2577-01-00
$18.99
9
ALARM UNIT
8JP-H2564-00-00
$97.99
10
RING, RETAINING
8JP-H4395-00-00
$15.99
11
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
12
ENGINE CONTROL UNI
8KG-H591A-21-00
Unavailable
13
WIRE, SUB-LEAD
8JP-H2318-00-00
$155.99
14
SCREW, M6X1.0X25
8JP-RA264-00-00
Unavailable
15
RECTIFIER & REGULA
8JP-H1960-00-00
Unavailable
16
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
17
WIRE HARNESS
8JP-H2105-00-00
Unavailable
18
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
18
CLAMP, 1 (4-INCH)
8JP-RAB03-00-00
Unavailable
18
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
19
WIRE HARNESS ASSY
8JW-H2590-00-00
Unavailable
20
. ANCHOR, CABLE 1
8JP-G8352-00-00
Unavailable
21
COVER, FUSE BOX
8JP-H2172-00-00
Unavailable
22
. HOLDER, FUSE
8JP-H2152-00-00
Unavailable
23
FUSE (15A)
8JP-H2151-00-00
Unavailable
23
FUSE (20A)
8JP-H2151-10-00
Unavailable
23
FUSE (25A)
8JP-H2151-20-00
Unavailable
23
FUSE (30A)
8JP-H2151-30-00
Unavailable
24
RELAY 1
8MS-H2185-00-00
Unavailable
25
RELAY 2
8MS-H2189-00-00
Unavailable
26
. DECAL 1
8JP-R2391-00-00
Unavailable
27
GASKET, HOLE COVER
8JP-H1365-00-00
Unavailable
28
. COVER, CONNECTER
8JP-H1662-00-00
Unavailable
29
EXTENSION, WIRE HARNESS
8KG-H2586-00-00
Unavailable
30
TAPE,ALUM FOIL - 6" X 30 FT
8JM-F199H-00-00
Unavailable
31
SENDER, OIL PRESSU
8GN-83651-01-00
Unavailable
32
OIL PRESSURE SWITCH
8FP-82504-01-00
Unavailable
33
IGNITION COIL ASSY
8ES-82310-00-00
Unavailable
34
PICK-UP ASSY
8GL-81670-01-00
Unavailable
35
O-RING 1
5VY-8A8E1-00-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD
90110-06219-00
Unavailable
