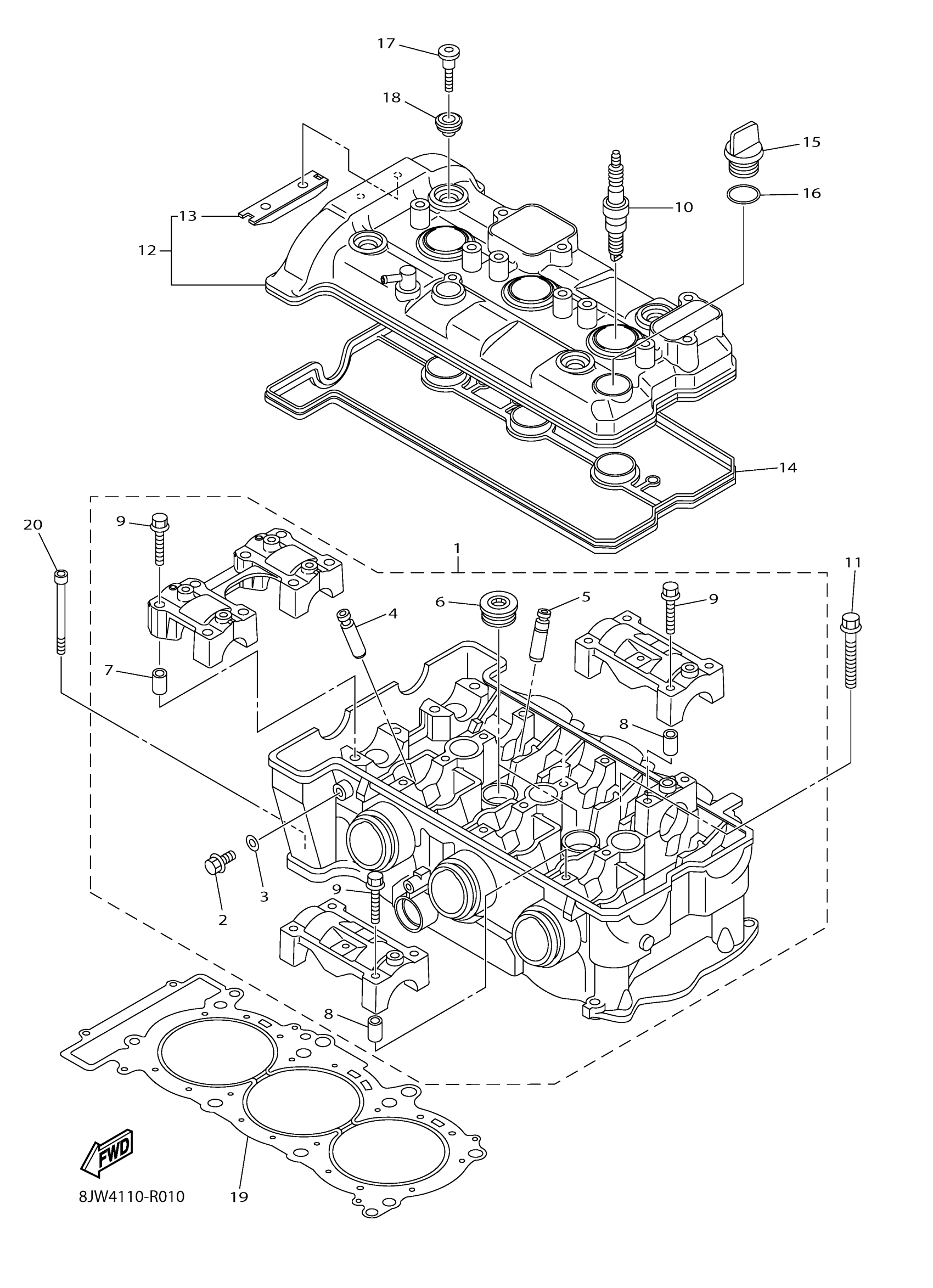

Yamaha SR10MS53GR (SRVIPER M TX 153 SE) 8KS30 2016 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

8KH-11101-09-00

Unavailable

BOLT, FLANGE

95022-08012-00

$12.49

GASKET

90430-08119-00

$6.62

GUIDE, VALVE 1

2C0-11133-11-00

$61.99

GUIDE, VALVE 2

8HF-11134-10-00

$99.99

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

PIN, DOWEL(3XW)

91808-16023-00

$8.49

PIN, DOWEL(3XW)

91808-16023-00

$8.49

BOLT, WASHER BASED

90105-06027-00

$7.49

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

BOLT, WITH WASHER

90119-10004-00

$12.49

COVER, CYLINDER HE

8KH-11191-00-00

Unavailable

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

GASKET, HEAD COVER

2HC-11193-00-00

$25.99

PLUG, OIL

3Y1-15363-10-00

$18.49

O-RING (646)

93210-19123-00

Unavailable

BOLT(4BP)

90109-066F0-00

Unavailable

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

GASKET, CYLINDER HEAD 1

8GL-11181-20-00

Unavailable

BOLT, SOCKET

91317-06065-00

Unavailable
