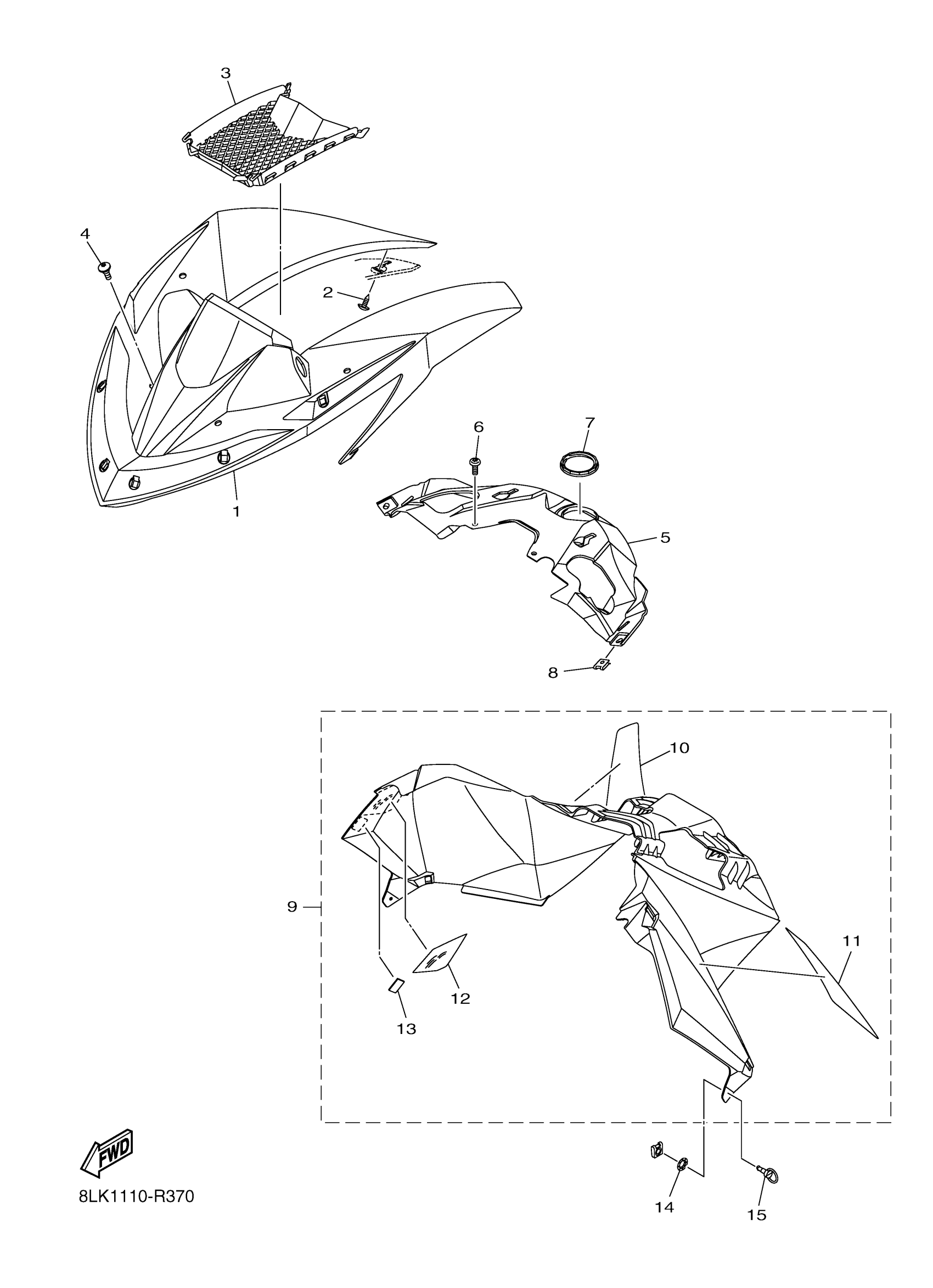

Yamaha SR10MS41GR (SRVIPER M TX 141 SE) 8LK10 2016 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL, INSTRUMENT

8KU-K7712-00-00

Unavailable

2

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

3

LOUVER 1

8KG-K7131-00-00

Unavailable

4

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.86

5

PANEL, INSTRUMENT

8KT-K7711-00-00

Unavailable

6

SCREW, M6-1.0X15

8JP-RA252-00-00

Unavailable

7

NUT

8JP-K6169-00-00

Unavailable

8

NUT, CLIP 10

8JP-RA352-00-00

$1.64

9

PANEL, INSTRUMENT

8JP-K7713-00-00

Unavailable

10

. LABEL, WARNING 1

8JP-K7761-70-00

Unavailable

11

. LABEL, WARNING 1

8JP-K7761-S0-00

Unavailable

12

PROTECTOR, SIDE

8JP-K7561-01-00

$12.49

13

. VELCRO (6.5 FEET)

8JP-R4261-00-00

Unavailable

14

NUT, 1

8JP-RA345-00-00

Unavailable

15

PIN, 2

8JP-RAK02-00-00

$26.99
