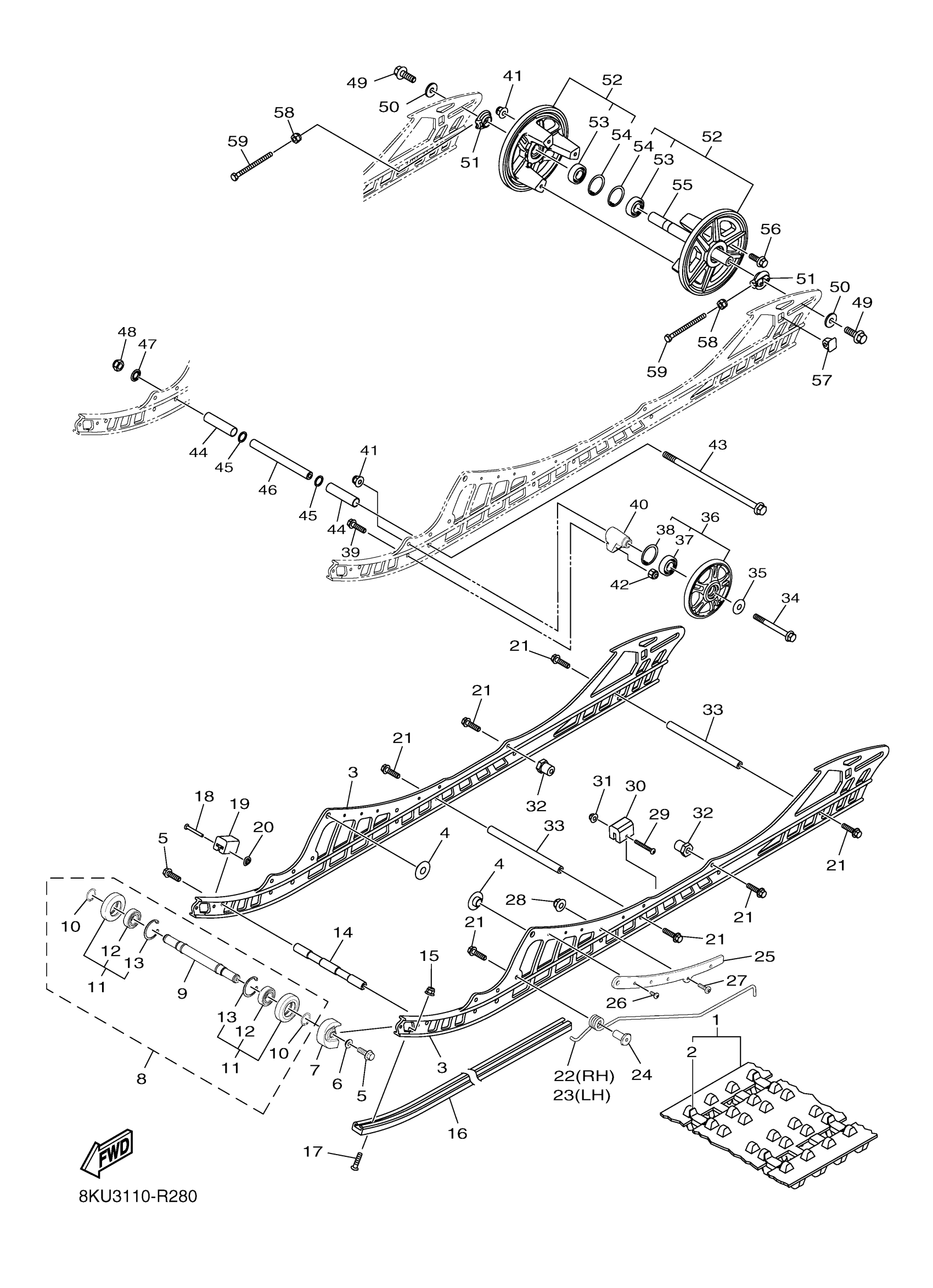

Yamaha SR10ML62GW (SRVIPER M TX 162 LE) 8KU30 2016 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8KU-G7110-00-00

Unavailable

2

PLATE,RNFCMNT

8JR-G7113-00-00

$4.46

3

FRAME, SLIDING

8KT-G741A-10-00

$317.99

4

COLLAR, 13

8JP-RA725-00-00

$4.14

5

BOLT, FLG. M8X1.25

8JP-RA189-00-00

Unavailable

6

WASHER, END

8JP-RA472-00-00

$9.49

7

RUNNER, SLIDING 2

8JR-G7422-20-00

$7.49

8

SUSPENSION WHEEL

8JR-G7320-01-00

$124.99

9

SHAFT 3

8JR-G7485-10-00

$48.99

10

. WASHER , RING

8JP-RA473-00-00

Unavailable

11

SUSPENSION WHL ASY

8JR-G7310-10-00

$59.99

12

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

$25.99

13

CIRCLIP, 2

8JM-RAH01-00-00

$8.49

14

SHAFT 3

8JR-G7485-00-00

Unavailable

15

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

16

RUNNER,SLIDING 1

8KT-G7421-00-00

Unavailable

17

SCREW,MACH-PHFH 1/4-20 X 1 1/8

8JM-RA206-00-00

Unavailable

18

RIVET, SOLID - 1/8 X 1.50

8JM-RAY02-00-00

Unavailable

19

PAD, SHOCK - RUBBER

8JM-G7456-00-00

Unavailable

20

NUT, 0.125

8JP-RA346-00-00

Unavailable

21

BOLT, FLG. M8X1.25

8JP-RA186-00-00

Unavailable

22

SCRAPER

8KG-G381D-10-00

Unavailable

23

SCRAPER

8KG-G381D-00-00

Unavailable

24

BUSH, PIVOT

8KG-G7371-00-00

Unavailable

25

FRAME, SLIDING C

8KG-G741C-10-00

Unavailable

26

SCREW, M6X1X16

8JP-RA271-00-00

Unavailable

27

SCREW

8KG-RA229-00-00

Unavailable

28

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

29

SCREW, M5X0.8X40

8JP-RA249-00-00

Unavailable

30

DAMPER 2

8JP-G7457-00-00

Unavailable

31

NUT, FLG. LOCKING

8JP-RA363-00-00

Unavailable

32

NUT

8JR-G7368-00-00

Unavailable

33

SHAFT,PIVOT

8JR-G7337-00-00

Unavailable

34

BOLT, FLANGE 1

8JP-RA1B5-00-00

Unavailable

35

WASHER, 9

8JP-RA466-00-00

Unavailable

36

SUSPENSION WHL ASY

8JR-G7310-00-00

Unavailable

37

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

$25.99

38

CIRCLIP, 2

8JM-RAH01-00-00

$8.49

39

BOLT, FLANGE 2

8JP-RA1B6-00-00

Unavailable

40

BRACKET 7

8JP-G7419-10-00

Unavailable

41

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

42

NUT, LOCK 1

8JP-RA379-00-00

Unavailable

43

BOLT, FLG. M10-1.2

8JP-RA194-10-00

Unavailable

44

COLLAR, 11

8JP-RA723-00-00

Unavailable

45

WASHER, 0.890X1.19

8JP-RA437-00-00

Unavailable

46

COLLAR, 22.2

8JP-RA729-00-00

Unavailable

47

WASHER, TOOTH M10

8JP-RA457-00-00

Unavailable

48

NUT, HEX. LOCKING

8JP-RA371-00-00

Unavailable

49

BOLT, FLG. M10X1.2

8JP-RA198-00-00

Unavailable

50

WASHER, M10X29

8JP-RA453-00-00

Unavailable

51

WHEEL, GUIDE 1

8JP-G7534-00-00

Unavailable

52

GUIDE WHEEL ASSY

8JR-G7550-01-00

Unavailable

53

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

$25.99

54

CIRCLIP, 2

8JM-RAH01-00-00

$8.49

55

AXLE, REAR

8JP-G7521-00-00

Unavailable

56

BOLT, FLG. M6X1.0X

8JP-RA181-00-00

Unavailable

57

BRACKET 5

8JP-G7463-00-00

Unavailable

58

NUT, HEX. LOCKING

8JP-RA372-00-00

Unavailable

59

BOLT, HEX. M8X1.25

8JP-RA1B1-00-00

Unavailable
