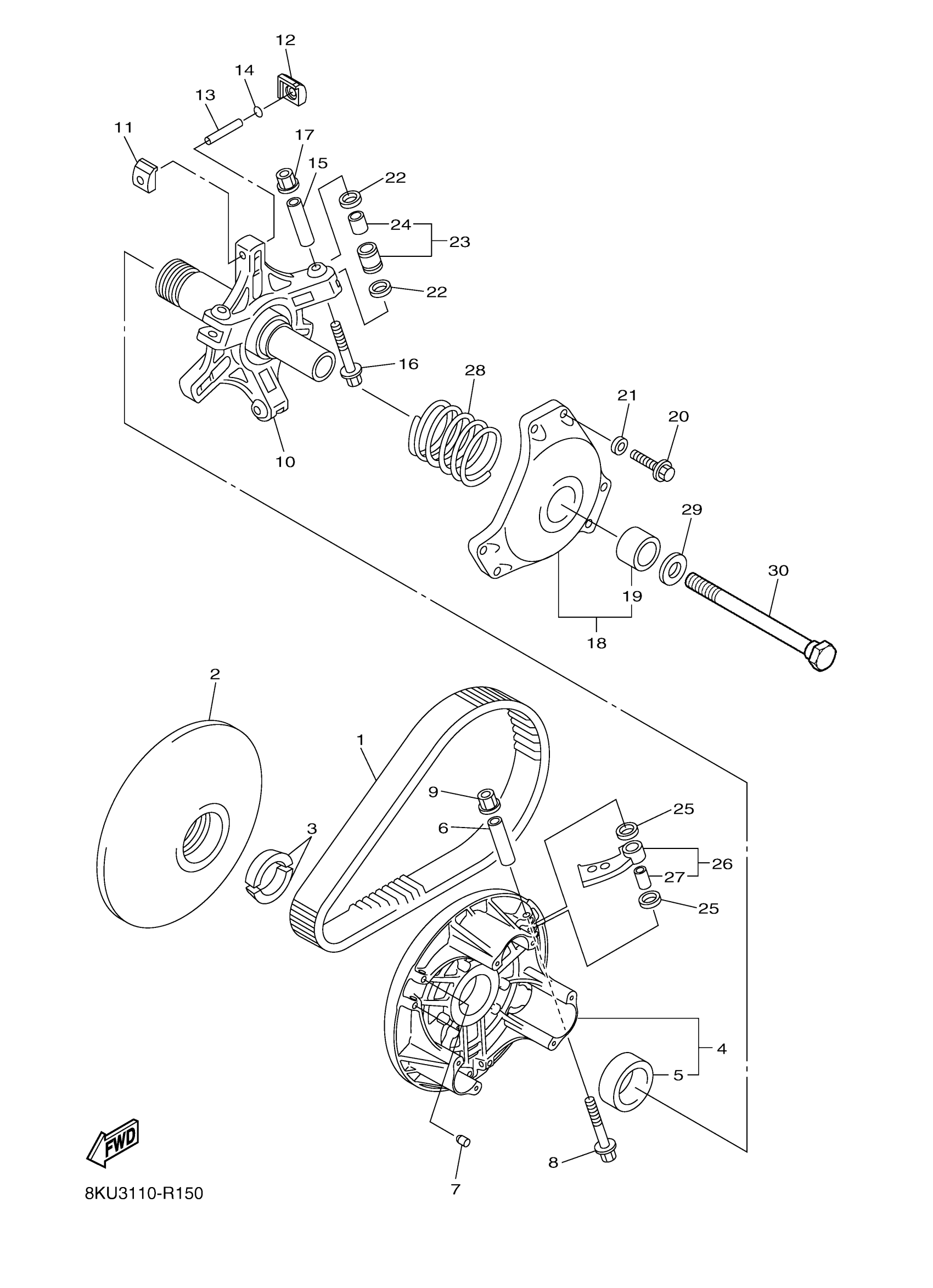

Yamaha SR10ML62GW (SRVIPER M TX 162 LE) 8KU30 2016 PRIMARY SHEAVE Diagram

#

Description
Price

1

V-BELT

8JP-17641-00-00

Unavailable

2

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

$206.99

3

STOPPER

8V0-17639-00-00

$14.99

4

PRIMARY SLIDING SHEAVE COMP.

8FP-17620-00-00

$437.99

5

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$60.99

6

COLLAR

90387-0514T-00

$16.99

7

BOLT, SET

90113-05041-00

$8.49

8

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

9

NUT, S/L FLANGE

95607-05200-00

$9.49

10

SPIDER COMPLETE

8ES-17640-02-00

Unavailable

11

SLIDER

8BW-17653-00-00

$16.49

12

SLIDER

8ES-17653-00-00

$25.99

13

PIN, SPRING (7F7)

91609-50032-00

$4.14

14

DAMPER, SLIDER

8ES-17655-00-00

$2.39

15

COLLAR

90387-0514U-00

$20.99

16

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

17

NUT, S/L FLANGE

95607-05200-00

$9.49

18

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

Unavailable

19

BUSH, SOLID(8CP)

90380-28237-00

Unavailable

20

BOLT, HEXAGON

97017-06030-00

Unavailable

21

WASHER(6TA)

92907-06600-00

Unavailable

22

WASHER, PLATE(8BV)

90202-09227-00

Unavailable

23

ROLLER, COMP

8FG-17624-00-00

Unavailable

24

BUSH

90386-09001-00

Unavailable

25

WASHER, PLATE(88R)

90202-08204-00

Unavailable

26

WEIGHT COMP

8BU-17605-20-00

Unavailable

27

BUSH

90386-08002-00

Unavailable

28

SPRING, COMPRESSION

90501-602L8-00

Unavailable

29

WASHER(JN5)

92907-16100-00

Unavailable

30

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable
