- SR10M62GR (SRVIPER M TX 162) 8LM10 2016
TRACK SUSPENSION 1

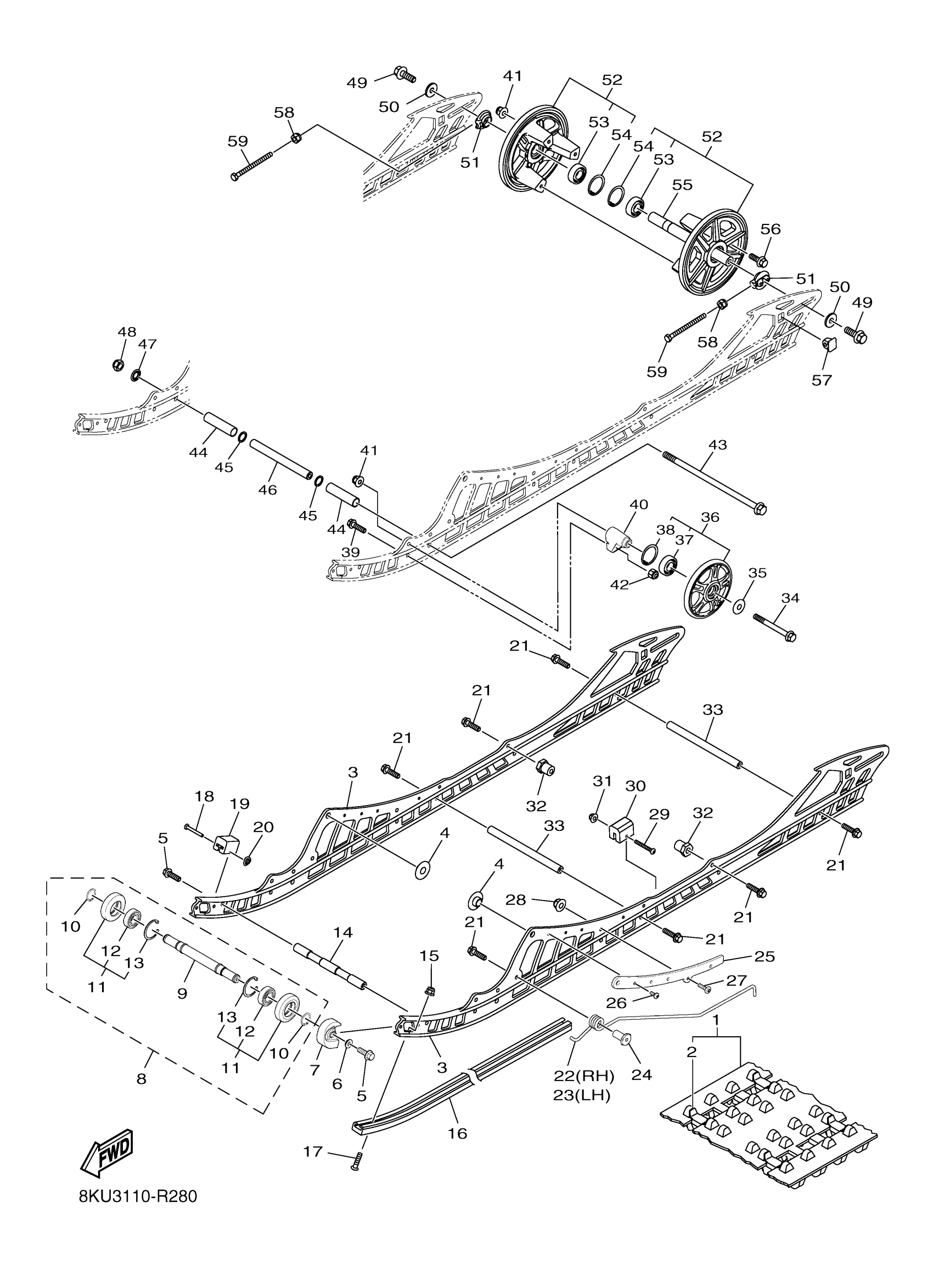

Yamaha SR10M62GR (SRVIPER M TX 162) 8LM10 2016 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8KT-G7110-00-00
Unavailable
2
PLATE,RNFCMNT
8JR-G7113-00-00
$4.46
3
FRAME, SLIDING
8KT-G741A-00-00
$256.99
4
COLLAR, 13
8JP-RA725-00-00
$4.14
5
BOLT, FLG. M8X1.25
8JP-RA189-00-00
Unavailable
6
WASHER, END
8JP-RA472-00-00
$9.49
7
RUNNER, SLIDING 2
8JR-G7422-20-00
$7.49
8
SUSPENSION WHEEL
8JR-G7320-01-00
$124.99
9
SHAFT 3
8JR-G7485-10-00
$48.99
10
. WASHER , RING
8JP-RA473-00-00
Unavailable
11
SUSPENSION WHL ASY
8JR-G7310-10-00
$59.99
12
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
$25.99
13
CIRCLIP, 2
8JM-RAH01-00-00
$8.49
14
SHAFT 3
8JR-G7485-00-00
Unavailable
15
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
16
RUNNER,SLIDING 1
8KT-G7421-00-00
Unavailable
17
SCREW,MACH-PHFH 1/4-20 X 1 1/8
8JM-RA206-00-00
Unavailable
18
RIVET, SOLID - 1/8 X 1.50
8JM-RAY02-00-00
Unavailable
19
PAD, SHOCK - RUBBER
8JM-G7456-00-00
Unavailable
20
NUT, 0.125
8JP-RA346-00-00
Unavailable
21
BOLT, FLG. M8X1.25
8JP-RA186-00-00
Unavailable
22
SCRAPER
8KG-G381D-10-00
Unavailable
23
SCRAPER
8KG-G381D-00-00
Unavailable
24
BUSH, PIVOT
8KG-G7371-00-00
Unavailable
25
FRAME, SLIDING C
8KG-G741C-00-00
Unavailable
26
SCREW, M6X1X16
8JP-RA271-00-00
Unavailable
27
SCREW
8KG-RA229-00-00
Unavailable
28
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
29
SCREW, M5X0.8X40
8JP-RA249-00-00
Unavailable
30
DAMPER 2
8JP-G7457-00-00
Unavailable
31
NUT, FLG. LOCKING
8JP-RA363-00-00
Unavailable
32
NUT
8JR-G7368-00-00
Unavailable
33
SHAFT,PIVOT
8JR-G7337-00-00
Unavailable
34
BOLT, FLANGE 1
8JP-RA1B5-00-00
Unavailable
35
WASHER, 9
8JP-RA466-00-00
Unavailable
36
SUSPENSION WHL ASY
8JR-G7310-00-00
Unavailable
37
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
$25.99
38
CIRCLIP, 2
8JM-RAH01-00-00
$8.49
39
BOLT, FLANGE 2
8JP-RA1B6-00-00
Unavailable
40
BRACKET 7
8JP-G7419-10-00
Unavailable
41
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
42
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
43
BOLT, FLG. M10-1.2
8JP-RA194-10-00
Unavailable
44
COLLAR, 11
8JP-RA723-00-00
Unavailable
45
WASHER, 0.890X1.19
8JP-RA437-00-00
Unavailable
46
COLLAR, 22.2
8JP-RA729-00-00
Unavailable
47
WASHER, TOOTH M10
8JP-RA457-00-00
Unavailable
48
NUT, HEX. LOCKING
8JP-RA371-00-00
Unavailable
49
BOLT, FLG. M10X1.2
8JP-RA198-00-00
Unavailable
50
WASHER, M10X29
8JP-RA453-00-00
Unavailable
51
WHEEL, GUIDE 1
8JP-G7534-00-00
Unavailable
52
GUIDE WHEEL ASSY
8JR-G7550-01-00
Unavailable
53
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
$25.99
54
CIRCLIP, 2
8JM-RAH01-00-00
$8.49
55
AXLE, REAR
8JP-G7521-00-00
Unavailable
56
BOLT, FLG. M6X1.0X
8JP-RA181-00-00
Unavailable
57
BRACKET 5
8JP-G7463-00-00
Unavailable
58
NUT, HEX. LOCKING
8JP-RA372-00-00
Unavailable
59
BOLT, HEX. M8X1.25
8JP-RA1B1-00-00
Unavailable
