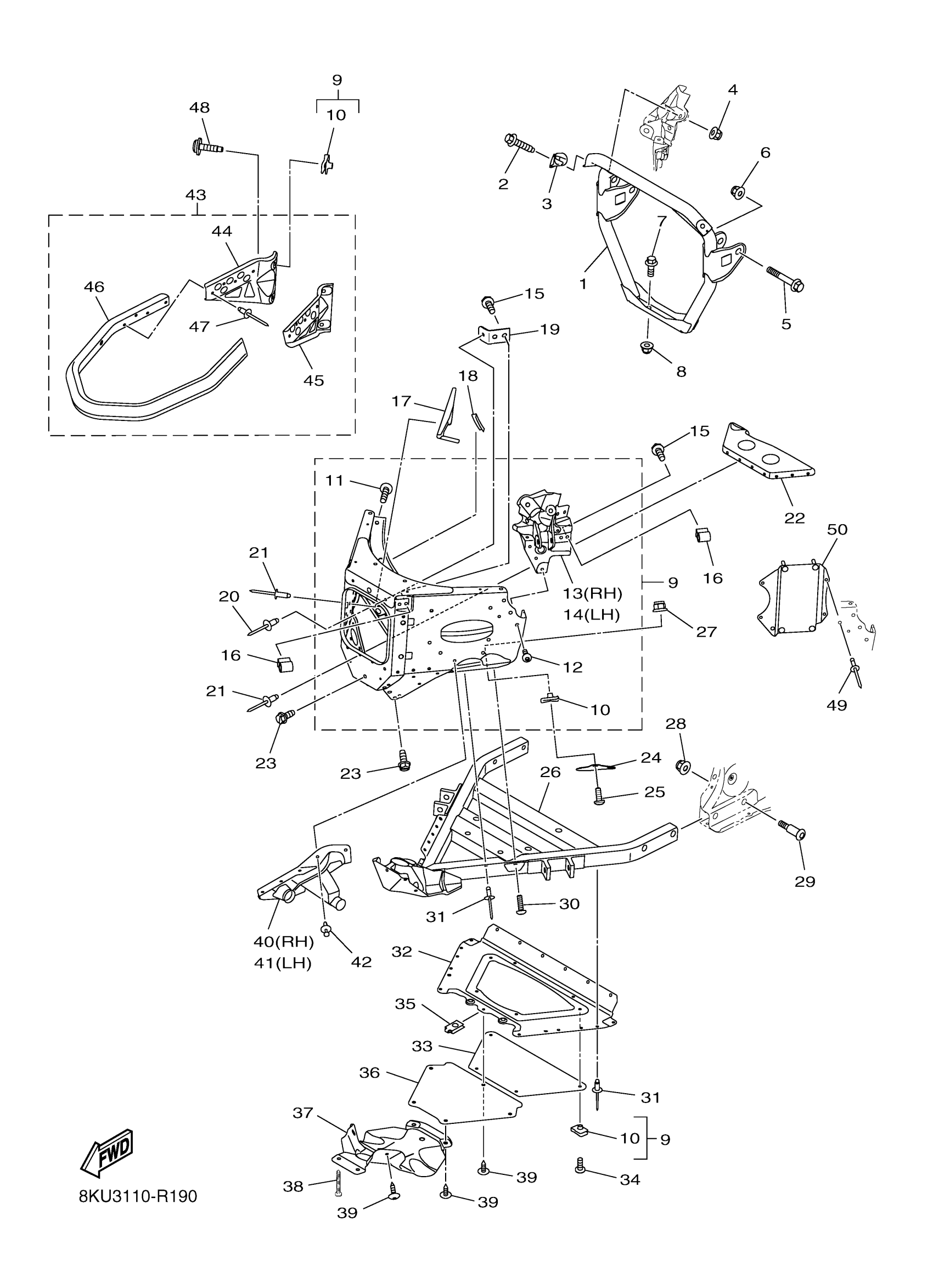

Yamaha SR10M62GR (SRVIPER M TX 162) 8LM10 2016 FRAME 1 Diagram
#
1
BRACKET, ENGINE
8JP-F194E-20-00
$246.99
2
BOLT, FLG. M8X1.25
8JP-RA188-00-00
Unavailable
3
INSERT
8JP-F3775-00-00
Unavailable
4
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
5
BOLT, FLANGE M12X1.25X75
8JP-RA1A5-00-00
Unavailable
6
NUT, FLG. LOCKING
8JP-RA362-00-00
$1.75
7
BOLT, FLANGE M10X1.25X25
8JP-RA195-00-00
Unavailable
8
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
9
BULKHEAD
8KG-F191A-00-00
Unavailable
10
NUT, CLIP M6
8JP-RA354-00-00
$0.96
11
. SCREW, TAPPING
8JP-RA281-00-00
Unavailable
12
SCREW, M6X1X16
8JP-RA271-00-00
$0.96
13
HOLDER,ABSORBER 2
8KG-F377J-00-00
Unavailable
14
HOLDER,ABSORBER
8KG-F376J-00-00
Unavailable
15
BOLT, FLG. M6X1.0X
8JP-RA180-00-00
Unavailable
16
BRACKET, UPPER
8JP-F2219-00-00
Unavailable
17
BRACKET, STOPPER S
8JP-F131G-00-00
Unavailable
18
TRIM (3 FEET)
8JP-F15B3-00-00
Unavailable
19
GUSSET
8JP-F1138-00-00
Unavailable
20
RIVET, 3/16
8JP-RA527-00-00
Unavailable
21
RIVET, 11
8JP-RA520-00-00
Unavailable
22
REINFORCEMENT FRAME KIT
SMA-8JPST-BR-KT
Unavailable
23
SCREW, TAPPING 1/4
8JP-RA279-00-00
Unavailable
24
BRACKET 1
8KG-F194X-00-00
Unavailable
25
SCREW, 1
8KG-RA235-00-00
Unavailable
26
FRAME UNDER 1
8KC-F196A-10-00
Unavailable
27
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
28
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
29
SCREW, M8X1.25X44.
8JP-RA275-00-00
Unavailable
30
SCREW, M6X1.0X20
8JP-RA258-00-00
Unavailable
31
RIVET, 9
8JP-RA518-00-00
Unavailable
32
FRAME, UNDER 2
8JP-F196E-00-00
Unavailable
33
COVER, UNDER
8JP-F2863-00-00
Unavailable
34
SCREW, M6X1.0X16
8JP-RA255-00-00
Unavailable
35
NUT, CLIP
8JP-RA349-00-00
Unavailable
36
PANEL, UNDER
8JP-F114G-00-00
Unavailable
37
COVER, FRONT
8JP-F2865-00-00
Unavailable
38
SCREW, 12
8JP-RA2A1-00-00
Unavailable
39
SCREW, TAPPING 1/4
8KC-RA202-00-00
Unavailable
40
COVER 3
8JP-F198J-00-00
Unavailable
41
COVER 1
8JP-F198F-00-00
Unavailable
42
RIVET, 2
8JP-RA511-00-00
Unavailable
43
FRONT BUMPER COMP.
8JP-K7510-00-00
Unavailable
44
. BRACKET, FRONT BUMPER 2
8JP-F1959-00-00
Unavailable
45
. BRACKET, FRONT BUMPER 1
8JP-F1949-00-00
Unavailable
46
. BUMPER, FRONT 1
8JP-K7511-00-00
Unavailable
47
RIVET, 11
8JP-RA520-00-00
Unavailable
48
SCREW, M6X18
8JP-RA270-00-00
Unavailable
49
RIVET, 11
8JP-RA520-00-00
Unavailable
50
BRACKET, UNIT
8JP-H5991-00-00
Unavailable
