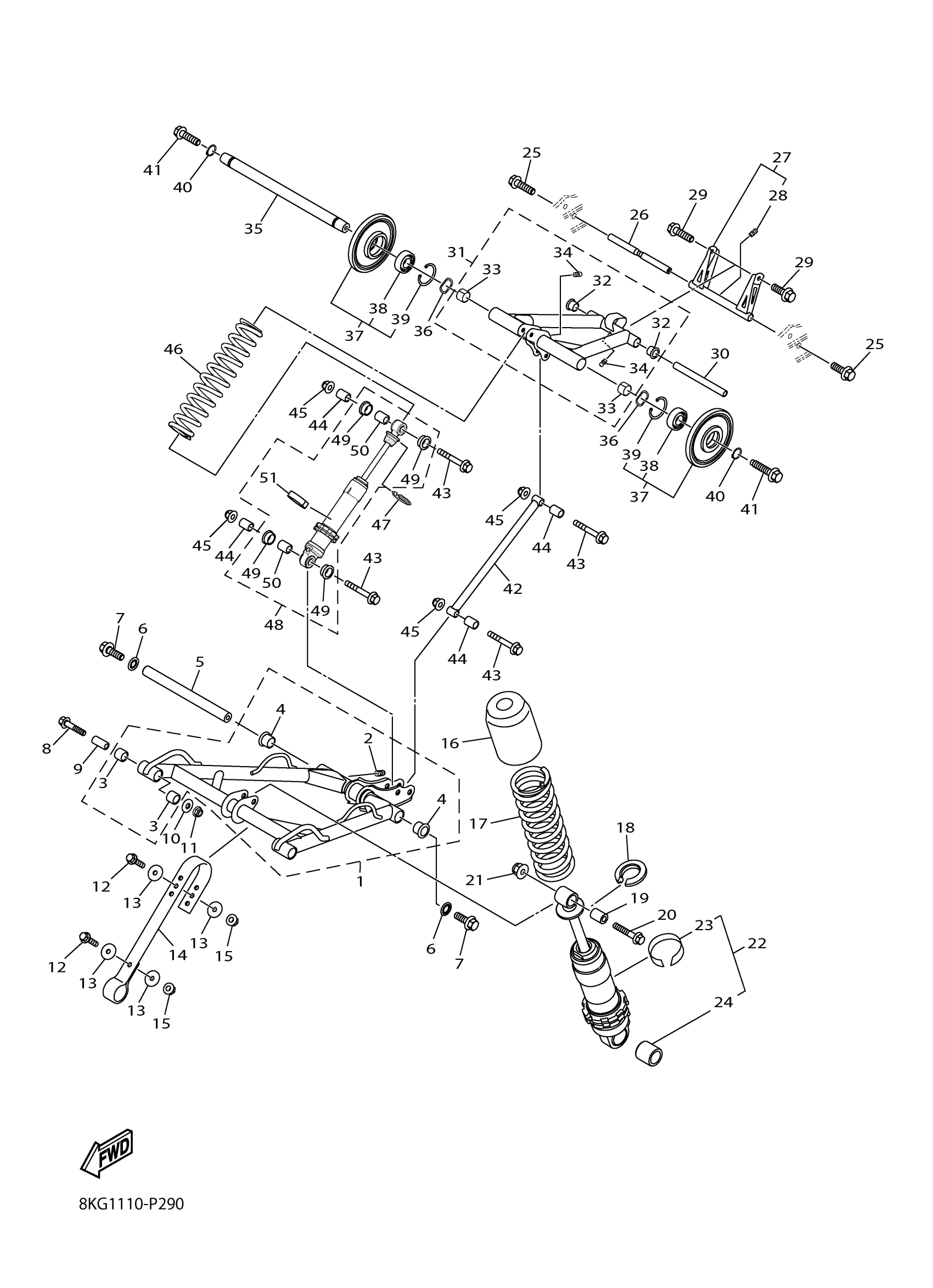

Yamaha SR10M53FB (SRVIPER M TX 153) 8KG1 2015 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM,PIVOT 1

8JR-G7331-10-00

$311.99

2

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

3

BUSH, 0.751

8JP-RA812-00-00

$4.35

4

BUSH, 5

8JP-RA814-00-00

$4.46

5

SHAFT 4

8JP-G7486-10-00

$35.99

6

WASHER, TOOTH M10

8JP-RA457-00-00

$0.43

7

BOLT,FLG. M10X1.25X30

8KG-RA199-00-00

$12.49

8

SCREW, 7

8JP-RA296-00-00

$3.88

9

COLLAR, 16

8JP-RA733-00-00

Unavailable

10

WASHER, PLAIN

8JP-RA462-00-00

$0.74

11

NUT, FLG. LOCKING

8JP-RA360-00-00

$1.16

12

BOLT, FLG. M6X1.0X

8JP-RA183-00-00

$1.16

13

WASHER, 6.87X25.4X

8JP-RA450-00-00

$0.85

14

STOPPER 1

8KG-G7495-00-00

Unavailable

15

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

16

COVER

8JP-F2211-00-00

Unavailable

17

SPRING, 2

8JR-G7336-00-00

Unavailable

18

GUIDE, SPRING 1

8JP-F2214-00-00

Unavailable

19

COLLAR, 14

8KV-RA726-00-00

Unavailable

20

BOLT,FLG. M10X1.25X45

8JP-RA1A2-00-00

Unavailable

21

NUT FLANGE LOCKING

8JP-RA360-10-00

Unavailable

22

DAMPER SUB ASY

8KG-F2201-10-00

Unavailable

23

. LABEL, WARNING

8JP-F2259-70-00

Unavailable

24

COLLAR, 22.4

8JP-RA730-00-00

Unavailable

25

BOLT, FLG. M8X1.25

8JP-RA186-00-00

Unavailable

26

SHAFT 6

8JR-G7488-00-00

Unavailable

27

BRACKET 3

8JR-G7417-10-00

Unavailable

28

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

29

BOLT, FLANGE M10X1.25X30

8JP-RA198-10-00

Unavailable

30

SHAFT 5

8JR-G7487-10-00

Unavailable

31

ARM, PIVOT 2

8JR-G7332-10-00

Unavailable

32

BUSH, 0.751

8JP-RA812-00-00

$4.35

33

BUSH, 6

8JP-RA815-00-00

Unavailable

34

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

35

SHAFT 2

8JR-G7475-10-00

Unavailable

36

WASHER, WAVE

8JP-RA463-00-00

Unavailable

37

WHEEL,SUSPENSION 2

8JR-G7312-00-00

Unavailable

38

BEARING, 3

8JP-RAG08-00-00

Unavailable

39

CIRCLIP, 4

8JP-RAH10-00-00

Unavailable

40

CIRCLIP, 5

8JP-RAH11-00-00

Unavailable

41

SCREW, 8

8JP-RA297-00-00

Unavailable

42

ROD, RELAY

8KG-G7494-00-00

Unavailable

43

BOLT,FLG. M10X1.25X45

8JP-RA1A2-00-00

Unavailable

44

COLLAR 12

8JP-RA724-10-00

Unavailable

45

NUT FLANGE LOCKING

8JP-RA360-10-00

Unavailable

46

SPRING 1

8KG-G7489-00-00

Unavailable

47

GUIDE, SPRING 1

8JP-F2214-00-00

Unavailable

48

SHOCK ABSORBER

8LM-G7480-00-00

Unavailable

49

BUSH, 3

8JP-RA804-00-00

Unavailable

50

COLLAR, 14.5

8JP-RA728-00-00

Unavailable

51

. LABEL, WARNING

8JP-F2259-70-00

Unavailable
