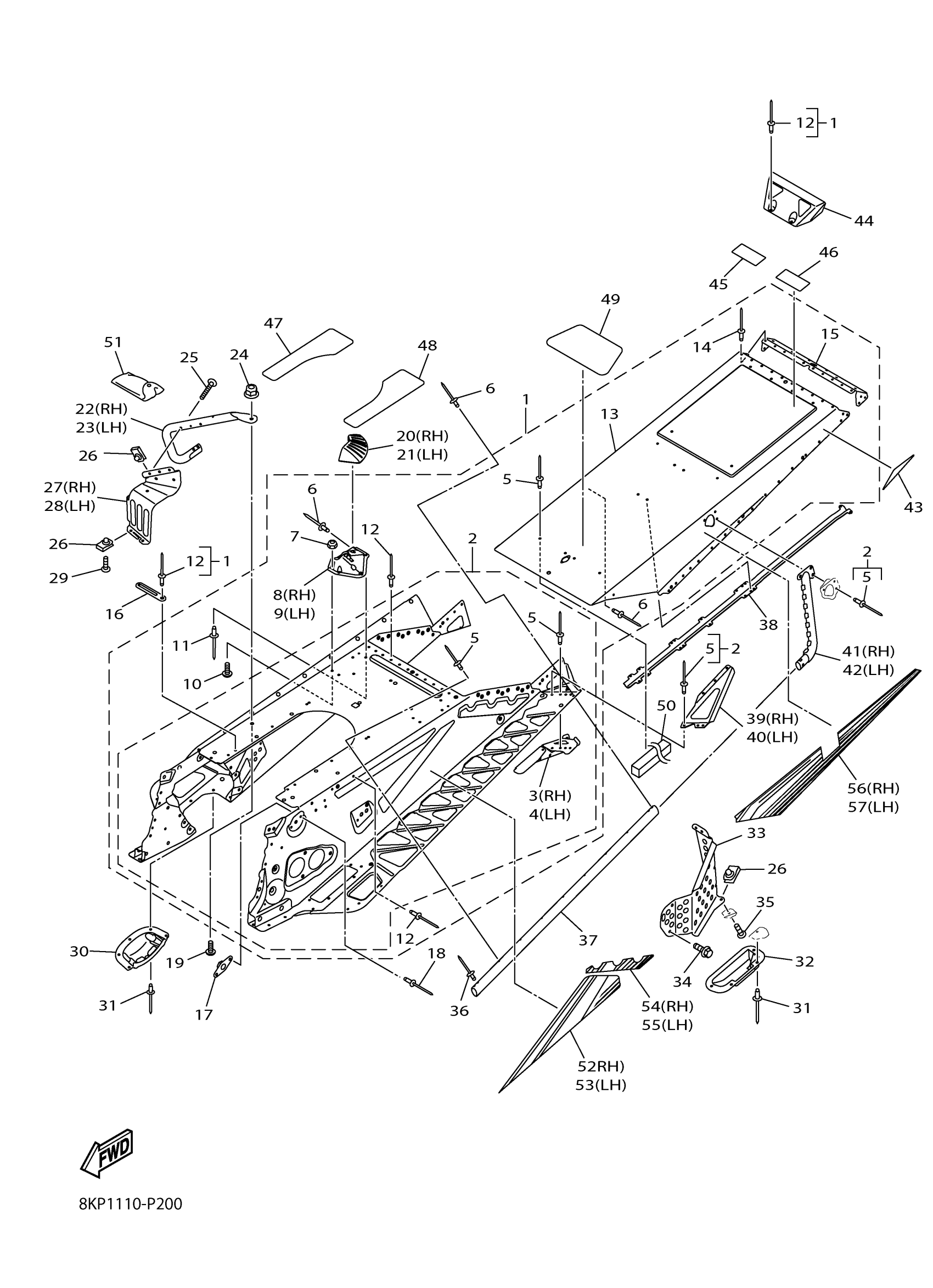

Yamaha SR10LSFR (SRVIPER L TX SE) 8JY20 2015 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8JY-F1950-30-00
Unavailable
2
.. PANEL, FRAME
8JY-F1911-30-00
Unavailable
3
BRACKET, RR.TRACK SUSPENSION 2
8JY-F1954-30-00
$26.99
4
BRACKET,RR.TRACK S
8JY-F1944-30-00
$22.99
5
RIVET, 9
8JP-RA518-00-00
$0.59
6
RIVET, 20
8JP-RA532-00-00
$2.82
7
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
8
.. BRACKET, MEMBER 2
8JW-F115M-30-00
Unavailable
9
BRACKET, MEMBER 1
8JW-F115L-30-00
$37.99
10
. SCREW, 5
8JP-RA239-00-00
Unavailable
11
RIVET, 3/16
8JP-RA528-00-00
$2.82
12
RIVET, 8
8JP-RA517-00-00
Unavailable
13
PANEL,SUB FRAME 1
8JR-F1912-30-00
Unavailable
14
RIVET, 5
8JP-RA514-00-00
Unavailable
15
REINEFORCEMENT, FR
8JW-F1923-30-00
$42.99
16
CLAMP, 20
8JP-RAB22-00-00
Unavailable
17
BRACKET
8JP-F1919-00-00
Unavailable
18
RIVET, 10
8JP-RA519-00-00
Unavailable
19
SCREW, M8X1.25X20
8JP-RA272-00-00
Unavailable
20
SUPT., FUEL TANK 2
8JP-F2556-00-00
Unavailable
21
SUPT., FUEL TANK 1
8JP-F2555-00-00
Unavailable
22
REINFORCEMENT, FRAME
8JW-F192E-30-00
Unavailable
23
REINFORCEMENT, FRAME SIDE
8JW-F1929-30-00
Unavailable
24
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
25
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
26
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
27
REINFORCEMENT SUB FRAME FR 2
8JW-F1996-30-00
Unavailable
28
REINFORCEMENT SUB FRAME FR 1
8JW-F1995-30-00
Unavailable
29
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
30
PROTECTOR, CHAIN
8JP-F2147-00-00
Unavailable
31
RIVET, 14
8JP-RA523-00-00
Unavailable
32
PROTECTOR, DISK BR
8JP-F5717-00-00
Unavailable
33
PROTECTOR, DISC BRAKE
8JW-F5718-30-00
Unavailable
34
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
35
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
36
RIVET, 3/16
8JP-RA526-00-00
Unavailable
37
REINFORCEMENT, FOO
8JW-F1926-30-00
Unavailable
38
PROTC,WIRE HARNESS
8JR-H2589-00-00
Unavailable
39
GUSSET
8JW-F1135-30-00
Unavailable
40
GUSSET
8JW-F1134-30-00
Unavailable
41
GUSSET
8JW-F1137-30-00
Unavailable
42
GUSSET
8JW-F1136-30-00
Unavailable
43
LABEL 1
8JP-F151A-10-00
Unavailable
44
BRACKET, TAILLIGHT
8JW-F117E-40-00
Unavailable
45
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
46
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
47
PROTECTOR, FRAME 3
8JP-F197C-00-00
Unavailable
48
PROTECTOR, FRAME
8JP-F197B-00-00
Unavailable
49
PROTECTOR, FUEL TA
8JP-F4141-00-00
Unavailable
50
PROTECTOR, FRAME
8JP-F1978-00-00
Unavailable
51
TOOL KIT
8JP-F8100-00-00
Unavailable
