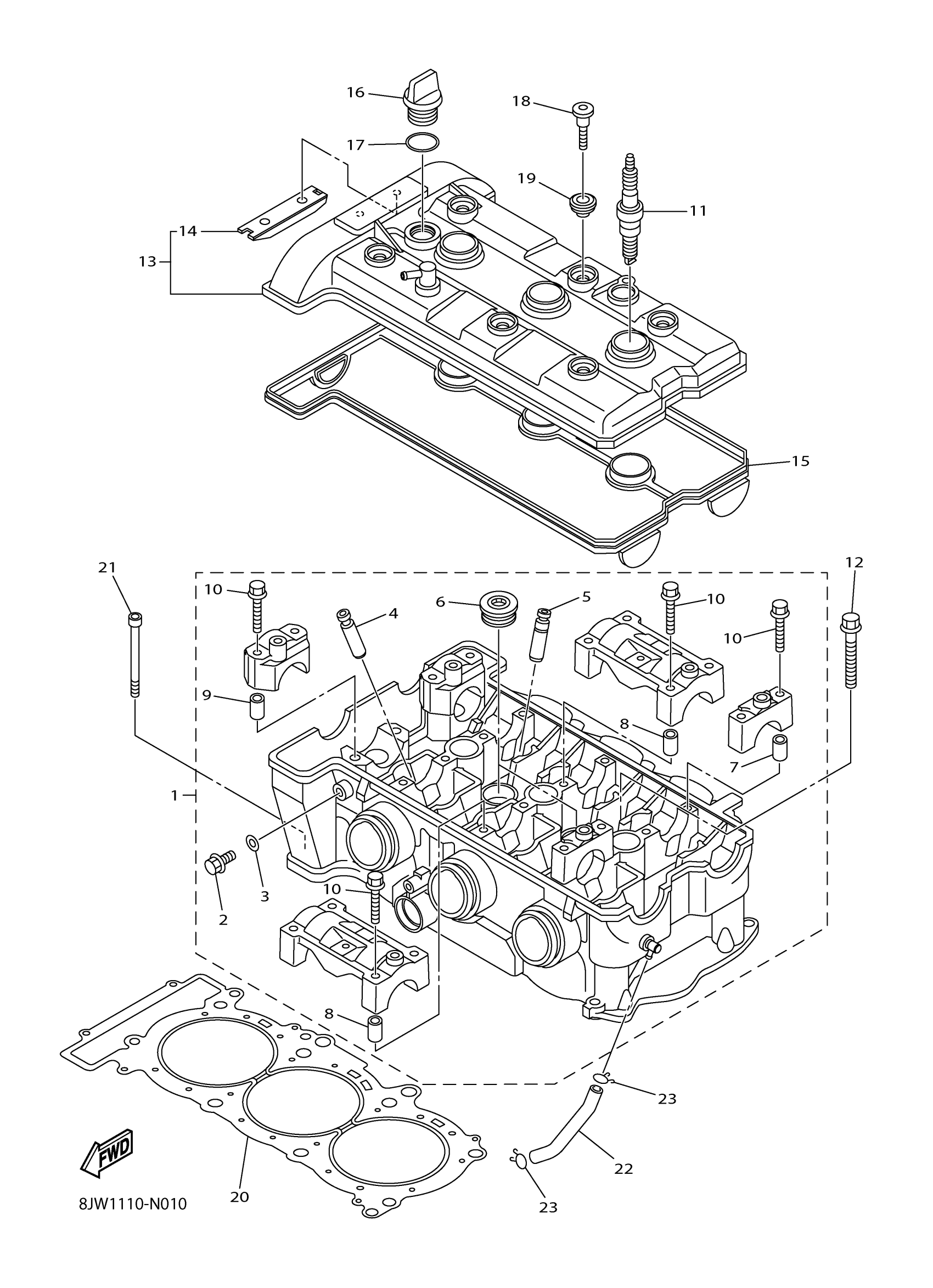

Yamaha SR10LSFO (SRVIPER L TX SE 1.25) 8JY2 2015 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

8GL-11101-01-00

Unavailable

2

BOLT, FLANGE

95022-08012-00

$8.86

3

GASKET

90430-08119-00

Unavailable

4

GUIDE, VALVE 1

2C0-11133-11-00

$53.86

5

GUIDE, VALVE 2

8HF-11134-10-00

$80.02

6

PLUG, STRAIGHT SCREW

90340-27129-00

$4.79

7

PIN, DOWEL(3XW)

91808-16023-00

$5.26

8

PIN, DOWEL(3XW)

91808-16023-00

$5.26

9

PIN, DOWEL(3XW)

91808-16023-00

$5.26

10

BOLT, WASHER BASED

90105-06027-00

$5.80

11

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

$8.42

12

BOLT, WITH WASHER

90119-10004-00

$7.40

13

COVER, CYLINDER HEAD 1

8GL-11191-00-00

Unavailable

14

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

15

GASKET, HEAD COVER 1

8GL-11193-00-00

$35.23

16

PLUG, OIL

3Y1-15363-10-00

Unavailable

17

O-RING (646)

93210-19123-00

Unavailable

18

BOLT(4BP)

90109-066F0-00

Unavailable

19

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

20

GASKET, CYLINDER HEAD 1

8GL-11181-20-00

Unavailable

21

BOLT, SOCKET

91317-06065-00

Unavailable

22

PIPE, OIL 1

8ES-13416-00-00

Unavailable

23

CLIP

90467-100A1-00

Unavailable
