- SR10LSER (SRVIPER LTX SE) 8JY10 2014
TRACK SUSPENSION 2

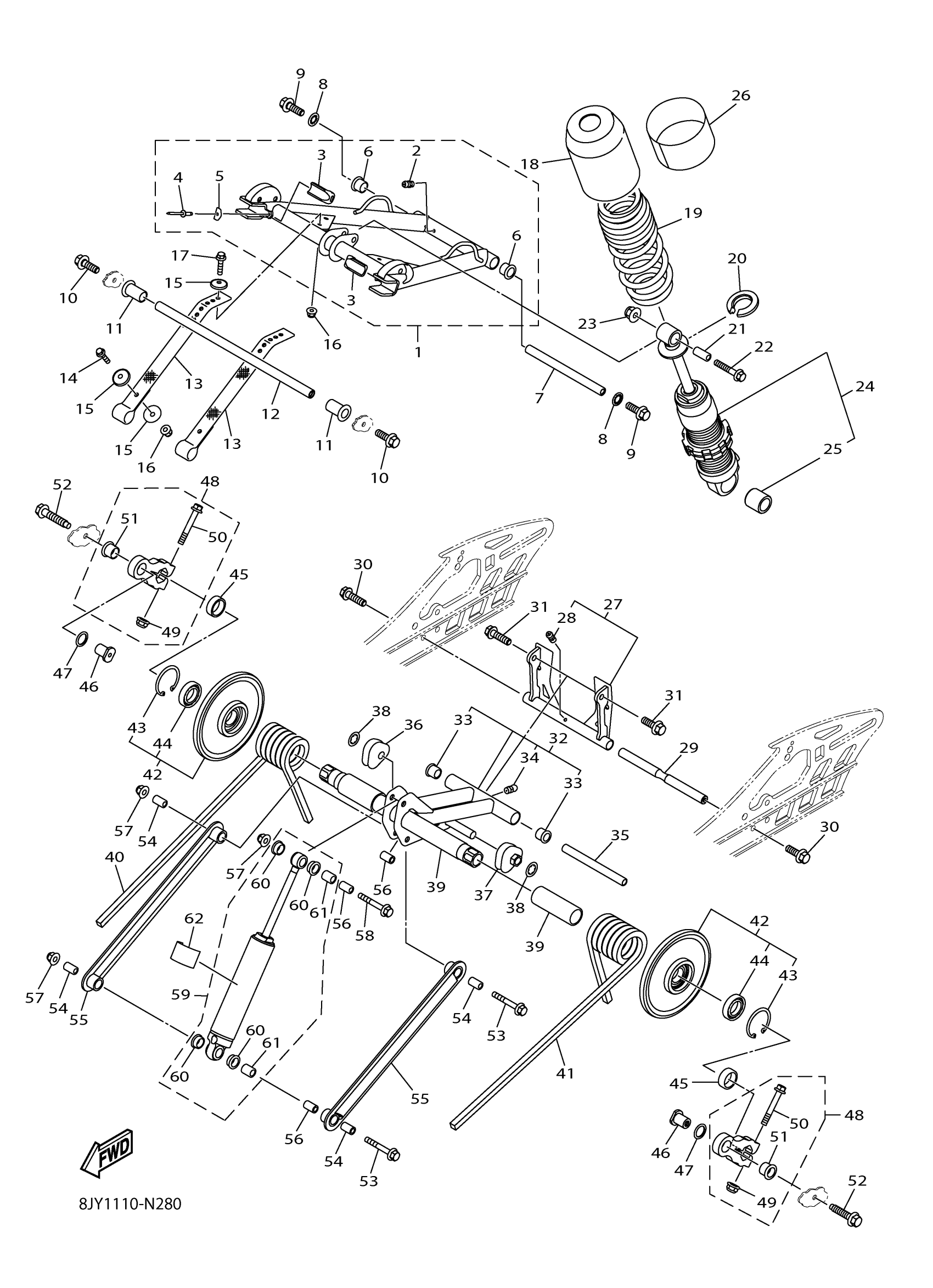

Yamaha SR10LSER (SRVIPER LTX SE) 8JY10 2014 TRACK SUSPENSION 2 Diagram
#
1
ARM,PIVOT 1
8JX-G7331-00-00
$228.99
2
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
3
DAMPER 1
8JP-G7456-00-00
$5.60
4
WASHER
8JP-G7359-00-00
Unavailable
5
RIVET, 12
8JP-RA521-00-00
$1.75
6
BUSH, 0.751
8JP-RA812-00-00
$4.35
7
SHAFT 4
8JP-G7486-00-00
Unavailable
8
WASHER, TOOTH M10
8JP-RA457-00-00
$0.43
9
BOLT, FLG. M10X1.2
8JP-RA199-00-00
$3.18
10
BOLT, FLG. M10X1.2
8JP-RA1A0-00-00
Unavailable
11
BUSH, 4
8JP-RA805-00-00
$23.99
12
SHAFT 1
8JP-G7465-00-00
Unavailable
13
STOPPER 1
8JP-G7495-00-00
$18.99
14
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
$1.16
15
WASHER, 6.87X25.4X
8JP-RA450-00-00
$0.85
16
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
17
BOLT, FLG. M6X1.0X
8JP-RA181-00-00
Unavailable
18
COVER
8JP-F2211-00-00
Unavailable
19
SPRING
8JP-G7336-00-00
Unavailable
20
GUIDE, SPRING 1
8JP-F2214-00-00
Unavailable
21
COLLAR, 14
8JP-RA726-00-00
Unavailable
22
BOLT, FLG. M10X1.2
8JP-RA1A2-10-00
Unavailable
23
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
24
DAMPER SUB ASSY
8JX-F2201-20-00
Unavailable
25
COLLAR, 22.4
8JP-RA730-00-00
Unavailable
26
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
27
BRACKET 3
8JP-G7417-00-00
Unavailable
28
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
29
SHAFT 6
8JP-G7488-00-00
Unavailable
30
BOLT, FLG. M8X1.25
8JP-RA186-00-00
Unavailable
31
BOLT, FLG. M10X1.2
8JP-RA1A1-00-00
Unavailable
32
ARM, PIVOT 2
8JP-G7332-00-00
Unavailable
33
BUSH, 0.628
8JP-RA808-00-00
Unavailable
34
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
35
SHAFT 5
8JP-G7487-00-00
Unavailable
36
BLOCK, SPRING-ADJUSTER-RH
8JM-G7448-00-00
Unavailable
37
BLOCK, SPRING-ADJUSTER-LH
8JM-G7447-00-00
Unavailable
38
RING,RETAINING-ADJ BLOCK 9/16
8JM-RA315-00-00
Unavailable
39
PROTECTOR
8JP-G7445-00-00
Unavailable
40
SPRING, REAR 2
8JP-G7474-00-00
Unavailable
41
SPRING, REAR 1
8JP-G7473-00-00
Unavailable
42
WHEEL, SUSPENSION
8JP-G7312-00-00
Unavailable
43
CIRCLIP, 2
8JP-RAH04-00-00
Unavailable
44
BEARING, 2
8JP-RAG03-00-00
Unavailable
45
COLLAR, 12.81
8JP-RA727-00-00
Unavailable
46
NUT
8JP-G7368-00-00
Unavailable
47
WASHER, 0.035
8JP-RA436-00-00
Unavailable
48
ARM, REAR PIVOT 1
8JP-G7361-00-00
Unavailable
49
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
50
BOLT, FLG. M8X1.25
8JP-RA191-00-00
Unavailable
51
BUSH, 12FDU12
8JP-RA813-00-00
Unavailable
52
BOLT, FLG. M10X1.2
8JP-RA196-00-00
Unavailable
53
BOLT, FLG
8JP-RA1B4-00-00
Unavailable
54
COLLAR, 19
8JP-RA735-00-00
Unavailable
55
ROD, RELAY
8JX-G7494-00-00
Unavailable
56
COLLAR, 12
8JP-RA724-00-00
Unavailable
57
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
58
BOLT, FLG. M10X1.2
8JP-RA1A2-10-00
Unavailable
59
SHOCK ABSORBER
8JY-G7480-01-00
Unavailable
60
BUSH, 3
8JP-RA804-00-00
Unavailable
61
COLLAR, 14.5
8JP-RA728-00-00
Unavailable
62
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
