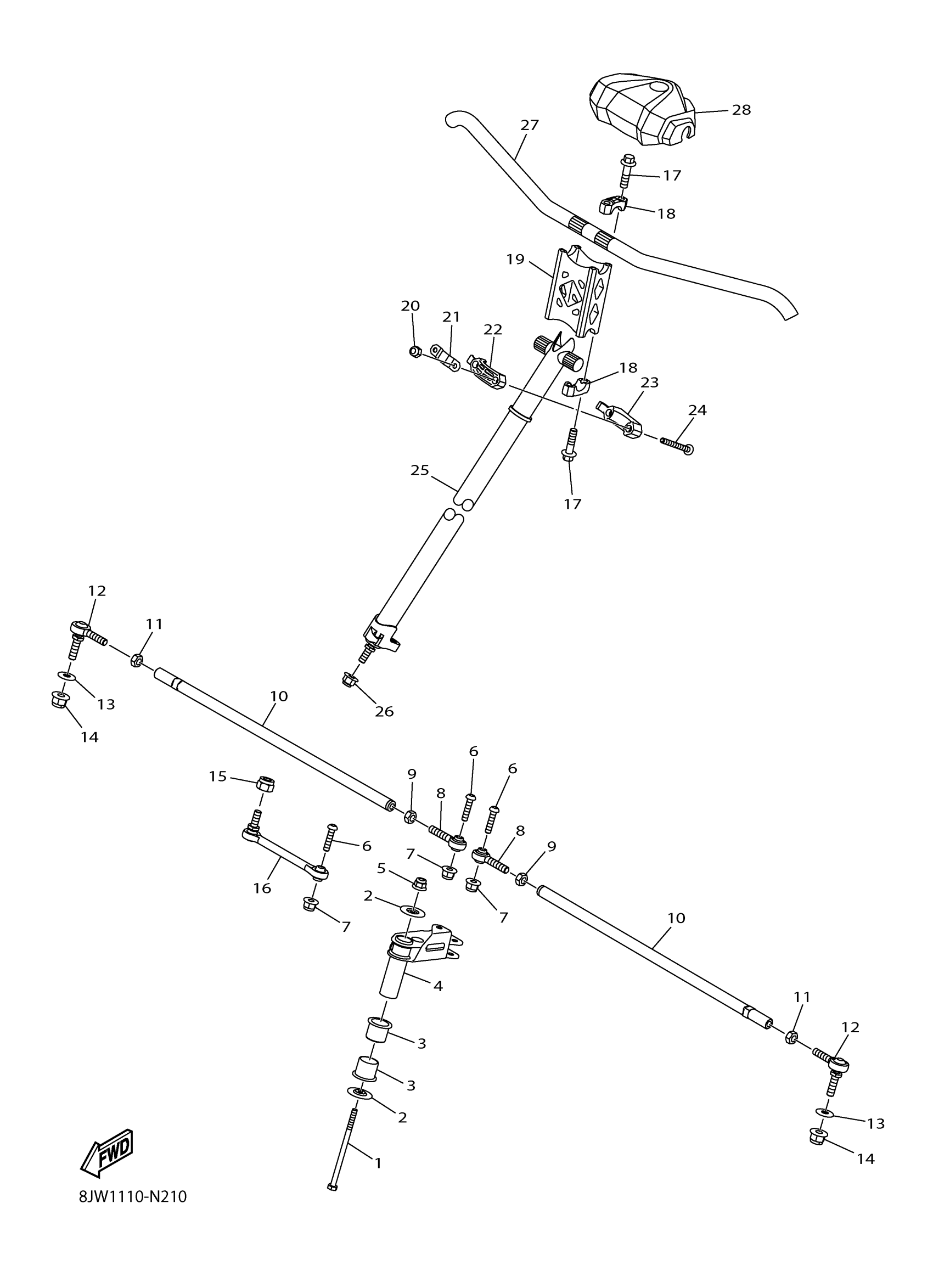

Yamaha SR10LSER (SRVIPER LTX SE) 8JY10 2014 STEERING Diagram
#
Description
Price
1
BOLT, HEX. M6X1X10
8JP-RA1B0-00-00
Unavailable
2
WASHER, 1
8JP-RA432-00-00
Unavailable
3
BUSH, 7
8JP-RA816-00-00
Unavailable
4
ARM, PIVOT
8JP-F389G-00-00
Unavailable
5
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
6
SCREW, M8X1.25X37
8JP-RA274-00-00
Unavailable
7
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
8
JOINT, UNIVERSAL 2
8JP-F3845-00-00
Unavailable
9
NUT, HEX. M10X1.25
8JP-RA369-00-00
$0.96
10
ROD, TIE
8JP-F3831-00-00
Unavailable
11
NUT, HEX. M10-1.25
8JP-RA368-00-00
Unavailable
12
JOINT, UNIVERSAL 3
8JP-F3847-00-00
$67.99
13
WASHER, PLANE M10X
8JP-RA454-00-00
$1.16
14
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
15
NUT, HEX. LOCKING
8JP-RA371-00-00
$1.16
16
ROD, STEERING RELA
8JP-F3821-00-00
Unavailable
17
BOLT, FLG. M8X1.25
8JP-RA188-00-00
Unavailable
18
HOLDER, HANDLE UPP
8JP-F3814-00-00
Unavailable
19
JOINT
8JP-F381B-00-00
Unavailable
20
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
21
HOLDER, BEARING
8JP-F3872-00-00
Unavailable
22
BEARING, STEERING
8JP-F3812-00-00
Unavailable
23
BEARING, STEERING
8JP-F3812-10-00
Unavailable
24
SCREW, M6X1.0X70
8JP-RA268-00-00
Unavailable
25
COLUMN, STEERING 2
8JP-F3813-01-00
Unavailable
26
LOCK NUT
8JP-RA378-01-00
Unavailable
27
HANDLEBAR
8JP-F6111-00-00
Unavailable
28
PROTECTOR, HANDLEB
8JP-F6124-00-00
Unavailable
