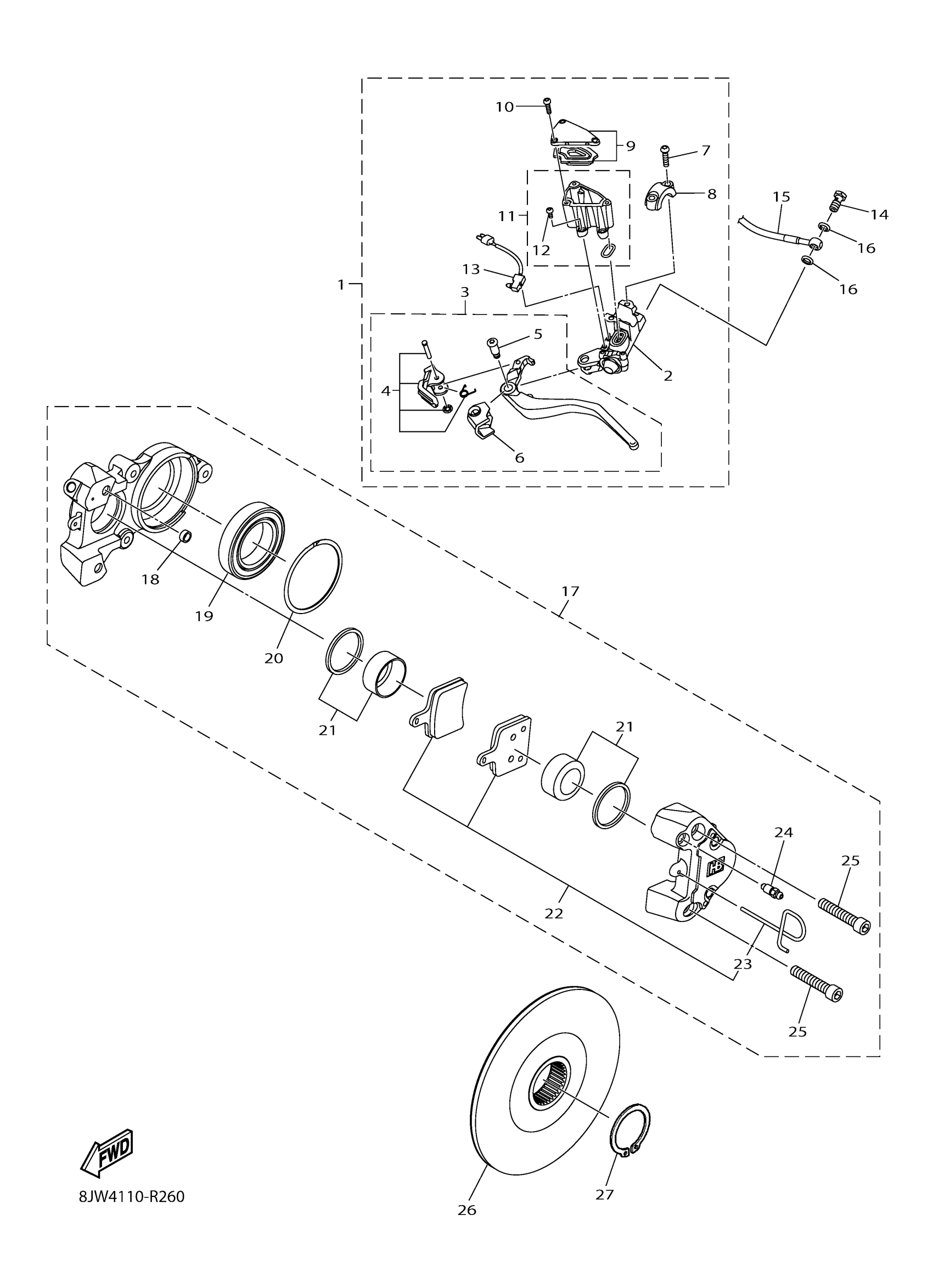

Yamaha SR10LLHL (SRVIPER L TX LE) 8KP6 2017 BRAKE Diagram
#
Description
Price
1
FR. MASTER CYLINDER ASSY.
8KG-F583T-00-00
Unavailable
2
FR. MASTER CYLINDER ASSY.
8KG-F583T-00-00
Unavailable
3
BRAKE LEVER SET
8JP-F610A-00-00
$159.99
4
BRACKET, LEVER
8JP-F5727-00-00
$46.99
5
BOLT, LEVER
8JP-F589F-00-00
$32.99
6
.. COVER, HANDLE LEVER 2
8JP-F637A-00-00
Unavailable
7
SCREW, 2
8JP-RA236-00-00
$24.99
8
BRACKET, MASTER CY
8JP-F5867-00-00
$41.99
9
CAP, RESERVOIR
8JP-F5852-00-00
Unavailable
10
SCREW, TAPPING
8JP-RA277-00-00
$8.49
11
BODY, MASTER CYLIN
8JP-F5851-00-00
$55.99
12
SCREW, TAPPING
8JP-RA278-00-00
$1.86
13
STOP SWITCH ASSY
8JP-H2530-00-00
Unavailable
14
BOLT, UNION 20
8JP-RA1B3-00-00
$4.56
15
HOSE, BRAKE 1
8MT-F5872-00-00
$123.99
16
WASHER, 4
8JP-RA435-00-00
Unavailable
17
CALIPER ASSY (LEFT
8JP-F580T-00-00
Unavailable
18
O-RING, 1
8JP-RAF03-00-00
Unavailable
19
BEARING, 6009-2RSF
8JP-RAG06-00-00
Unavailable
20
CIRCLIP, EH-75
8JP-RAH05-00-00
Unavailable
21
PISTON SET, CALIPE
8JP-F5809-00-00
Unavailable
22
PAD, CALIPER 2
8JP-F5811-00-00
Unavailable
23
PIN, PAD
8JP-F5924-00-00
Unavailable
24
SCREW, BLEED
8JP-F5824-00-00
Unavailable
25
. SCREW, 3
8JP-RA237-00-00
Unavailable
26
DISK BRAKE ASSY
8JP-F581T-00-00
Unavailable
27
CIRCLIP, 4
8JP-RAC03-00-00
Unavailable
