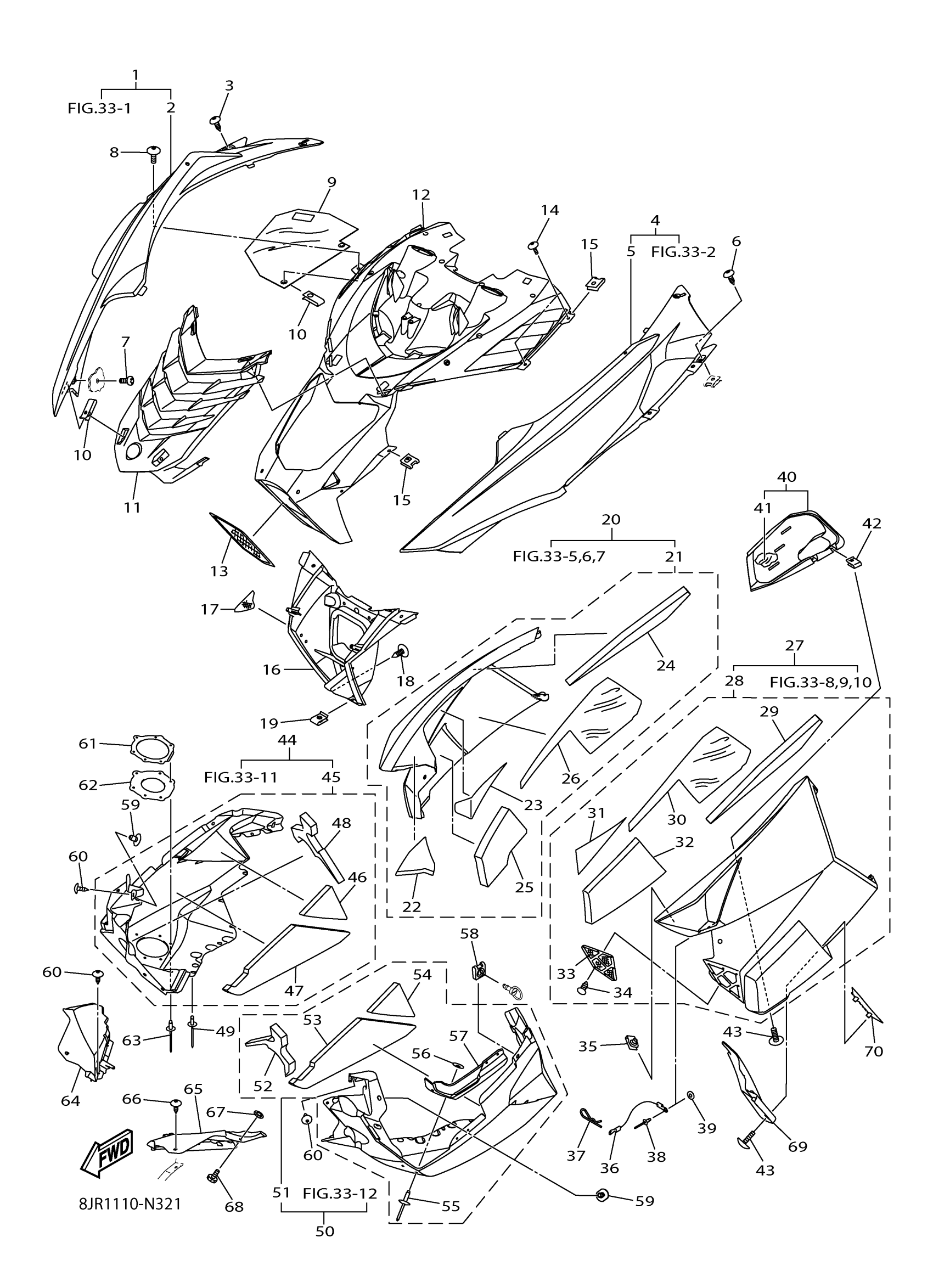

Yamaha SR10LEB (SRVIPER LTX) 8JX1 2014 SHROUD Diagram
#
1
HOOD ASSY 4
8JP-F198A-00-00
Unavailable
2
HOOD 4
8JP-K7122-00-00
$894.99
3
SCREW, TAPPING 1/4
8KC-RA202-00-00
$1.75
4
HOOD ASSY 3
8JP-F197A-00-00
Unavailable
5
HOOD 3
8JP-K7121-00-00
$875.99
6
SCREW, TAPPING 1/4
8KC-RA202-00-00
$1.75
7
SCREW, TAPPING
8JP-RA291-00-00
Unavailable
8
SCREW, 10-12X1.00
8KC-RA288-00-00
$4.29
9
SHIELD, HEAT
8JP-F199H-00-00
Unavailable
10
NUT, CLIP 10
8JP-RA351-00-00
Unavailable
11
PANEL, CONSOLE 1
8JP-F837L-00-00
Unavailable
12
SHROUD
8JP-K7111-00-00
Unavailable
13
GRILL, FRONT
8JP-K815R-00-00
$26.99
14
SCREW, TAPPING 1/4
8JP-RA202-00-00
$1.86
15
NUT, CLIP 10
8JP-RA352-00-00
$1.64
16
DUCT, INTAKE
8JP-R1311-01-00
Unavailable
17
TAPE, REFLECTOR
8JP-H5133-00-00
Unavailable
18
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
19
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
20
SIDE PANEL COMP. (R.H)
8JP-K810G-00-00
Unavailable
21
SHELL SIDE PANEL A
8JP-K8140-00-00
Unavailable
22
.. DAMPER, NOISE 17
8JP-K7277-00-00
Unavailable
23
.. PROTECTOR 1
8JP-K7551-00-00
Unavailable
24
DAMPER, NOISE 19
8JP-K7279-00-00
Unavailable
25
DAMPER, NOISE 18
8JP-K7278-00-00
Unavailable
26
PROTECTOR 2
8JP-K7552-00-00
Unavailable
27
SIDE PANEL COMP. (L.H)
8JP-K810F-00-00
Unavailable
28
. SHELL SIDE PANEL ASSY 1
8JP-K8130-00-00
Unavailable
29
.. DAMPER, NOISE 13
8JP-K7273-00-00
Unavailable
30
.. DAMPER, NOISE 14
8JP-K7274-00-00
Unavailable
31
.. DAMPER, NOISE 15
8JP-K7275-00-00
Unavailable
32
.. DAMPER, NOISE 16
8JP-K7276-00-00
Unavailable
33
SCREEN
8JP-F6234-00-00
Unavailable
34
RIVET, 1
8JP-RA510-00-00
Unavailable
35
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
36
WIRE
8JP-F1654-00-00
Unavailable
37
CLIP, 5
8JP-RAC14-00-00
Unavailable
38
RIVET, 6
8JP-RA515-00-00
Unavailable
39
WASHER, 8X0.375X0.
8JP-RA451-00-00
Unavailable
40
DUCT
8JP-K7194-00-00
Unavailable
41
. PROTECTOR 3
8JP-K7553-00-00
Unavailable
42
NUT, CLIP 10
8JP-RA351-00-00
Unavailable
43
SCREW, TAPPING 1/4
8JP-RA202-00-00
$1.86
44
HOOD 2
8JP-F1983-00-00
Unavailable
45
HOOD 4
8JP-F198H-00-00
Unavailable
46
.. PROTECTOR 4
8JP-K7554-00-00
Unavailable
47
.. PROTECTOR 5
8JP-K7555-00-00
Unavailable
48
PROTECTOR 6
8JP-K7556-00-00
Unavailable
49
RIVET, 14
8JP-RA523-00-00
Unavailable
50
HOOD 1
8JP-F1982-00-00
Unavailable
51
HOOD 3
8JP-F197H-10-00
Unavailable
52
PROTECTOR 1
8JP-K811V-00-00
Unavailable
53
PROTECTOR 2
8JP-K811W-00-00
Unavailable
54
.. PROTECTOR 3
8JP-K811X-00-00
Unavailable
55
RIVET, 14
8JP-RA523-00-00
Unavailable
56
WASHER,FLAT .194X.50X.048
8JM-RA411-00-00
Unavailable
57
.. REINFORCEMENT 1
8JP-K8121-00-00
Unavailable
58
NUT, CLIP 1/4
8JP-RA350-00-00
Unavailable
59
RIVET, 4
8JP-RA513-00-00
Unavailable
60
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
61
PLATE 1
8JP-K8181-00-00
Unavailable
62
SEAL, EXT. 1
8JP-G1138-00-00
Unavailable
63
RIVET, 13
8JP-RA522-00-00
Unavailable
64
PATCH 2
8JP-F1962-00-00
Unavailable
65
PATCH 1
8JP-F1961-00-00
Unavailable
66
SCREW, TAPPING 1/4
8KC-RA202-00-00
$1.75
67
NUT, 3/16
8JP-RA348-00-00
Unavailable
68
SCREW, THUMB M5X0.8X20
8JP-RA243-00-00
Unavailable
69
DEFLECTOR 1
8JP-F4131-00-00
Unavailable
70
DEFLECTOR 2
8JP-F4132-00-00
Unavailable
