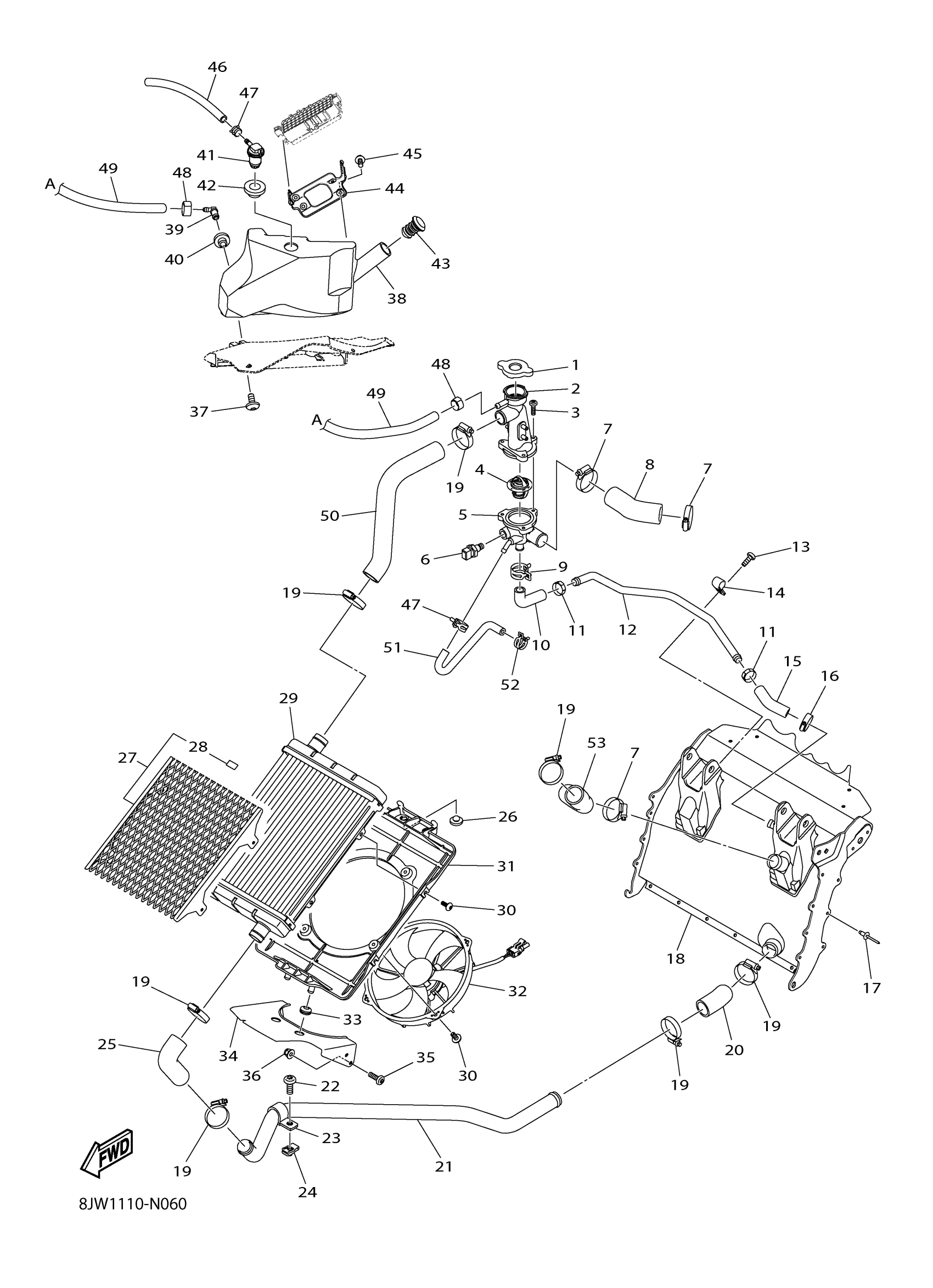

Yamaha SR10LEB (SRVIPER LTX) 8JX1 2014 RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR

8JP-E2462-00-00

$41.99

2

COVER, THERMOSTAT

8JP-E2413-00-00

$26.99

3

SCREW, M5X0.8X20

8JP-RA244-00-00

Unavailable

4

THERMOSTAT ASSY

8JP-E2410-00-00

Unavailable

5

HOUSING, THERMOSTA

8JP-E2417-01-00

Unavailable

6

THERMOSENSOR ASSY

8JP-H5790-00-00

$24.99

7

CLAMP, 19

8JP-RAB21-00-00

Unavailable

8

HOSE,3

8JP-E243F-00-00

$13.49

9

CLAMP, 13

8JP-RAB15-00-00

Unavailable

10

HOSE 1

8JP-E243A-00-00

Unavailable

11

CLAMP, 7

8JP-RAB09-00-00

Unavailable

12

PIPE 1

8JP-E2481-00-00

Unavailable

13

SCREW, M6X12

8JP-RA269-00-00

$2.12

14

CLAMP, 21

8JP-RAB23-00-00

Unavailable

15

HOSE 2

8JP-E243E-00-00

Unavailable

16

CLAMP, HOSE

8JP-F1823-00-00

Unavailable

17

RIVET, 9

8JP-RA518-00-00

Unavailable

18

HEAT EXCHANGER ASS

8JP-E2440-00-00

Unavailable

19

CLAMP, 22

8JP-RAB24-00-00

Unavailable

20

HOSE 6

8JP-E244J-00-00

Unavailable

21

PIPE 2

8JP-E2482-00-00

Unavailable

22

SCREW, M6X1.0X16

8JP-RA256-00-00

Unavailable

23

CLAMP, 3

8JP-RAB05-00-00

Unavailable

24

NUT, CLIP M6

8JP-RA354-00-00

Unavailable

25

HOSE 5

8JP-E244H-00-00

Unavailable

26

DAMPER, RADIATOR

8JP-E2465-00-00

Unavailable

27

RADIATOR COVER ASS

8JP-E240J-01-00

Unavailable

28

PLATE,WEAR

8JP-E2431-00-00

Unavailable

29

RADIATOR COMP

8JP-E2461-00-00

Unavailable

30

SCREW, M5X0.8X12

8JP-RA241-00-00

Unavailable

31

COVER, RADIATOR

8JP-E2467-00-00

Unavailable

32

BLOWER ASSY

8JP-E2405-00-00

Unavailable

33

GROMMET

8JP-E5365-00-00

Unavailable

34

STAY, RADIATOR

8JP-E2464-00-00

Unavailable

35

SCREW, M6X1.0X20

8JP-RA261-00-00

Unavailable

36

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

37

SCREW, M6X1.0X12

8JP-RA254-00-00

Unavailable

38

TANK, RESERVE

8JP-E249B-00-00

Unavailable

39

ELBOW

8JP-F1828-00-00

Unavailable

40

GROMMET

8JP-E5367-00-00

Unavailable

41

VALVE, CHECK 1

8JP-F4362-00-00

Unavailable

42

GROMMET

8JP-E5366-00-00

Unavailable

43

CAP, RECOVERY TANK

8JP-F1876-00-00

Unavailable

44

BRACKET 1

8JP-E244E-00-00

Unavailable

45

BOLT, FLANGE M5X0.8X12

8JP-RA177-00-00

Unavailable

46

HOSE, 13 (25 FEET)

8JM-RA902-10-00

Unavailable

47

CLAMP, 11

8JP-RAB13-00-00

Unavailable

48

CLAMP, 6

8JP-RAB08-00-00

Unavailable

49

. HOSE, 6 (25 FEET)

8JP-RA910-00-00

Unavailable

50

HOSE, 4

8JP-E244G-00-00

Unavailable

51

HOSE 2

8JP-E2577-00-00

Unavailable

52

CLAMP, 12

8JP-RAB14-00-00

Unavailable

53

HOSE 1

8JP-E2576-00-00

Unavailable
