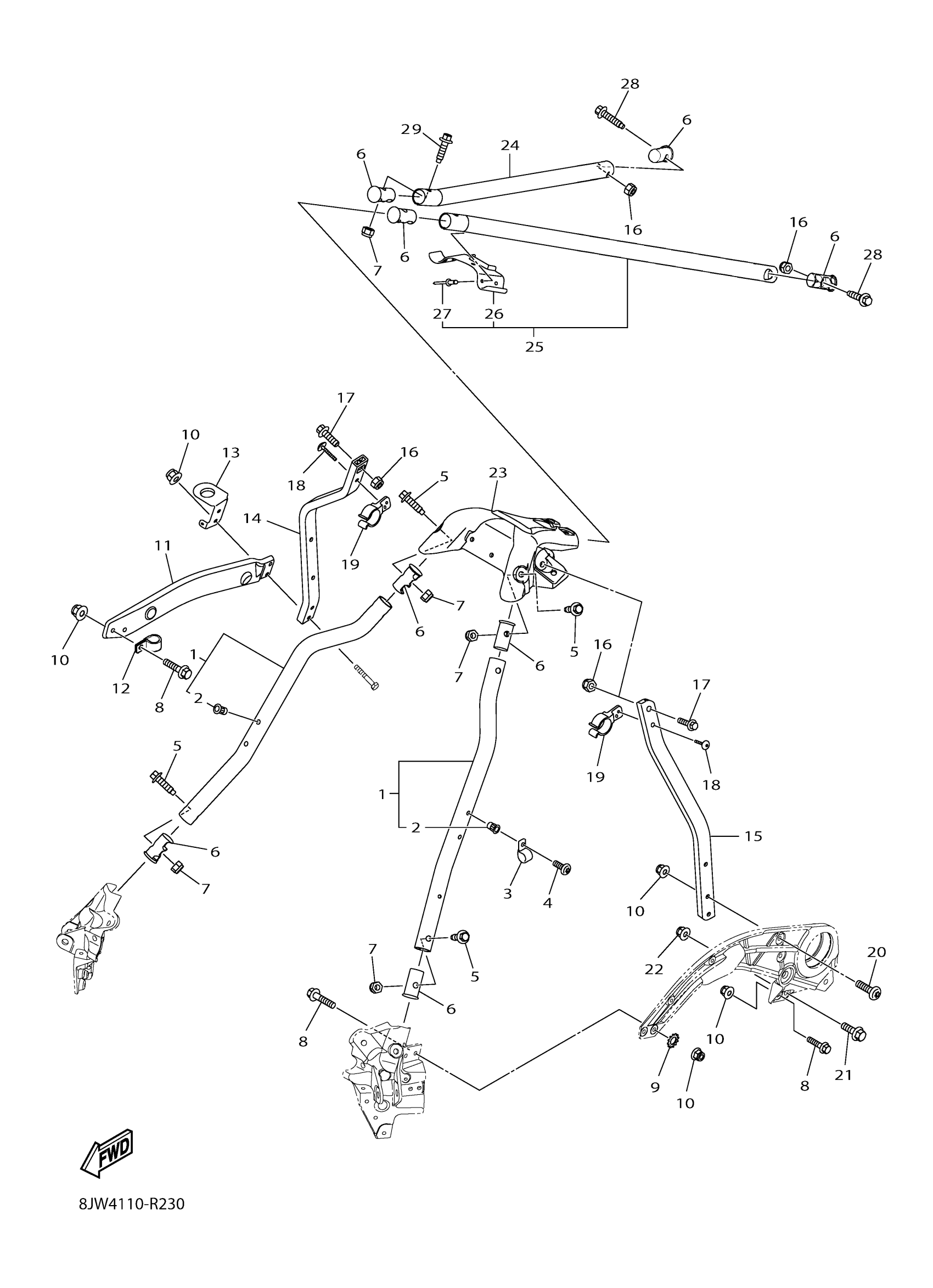

Yamaha SR10LDGR (SRVIPER L TX DX) 8JX30 2016 STEERING GATE Diagram

#

Description
Price

1

PIPE, CROSS 6

8JP-F119A-10-00

Unavailable

2

. NUT, HEXAGON

8JP-RA331-00-00

Unavailable

3

CLAMP, 5

8JP-RAB07-00-00

Unavailable

4

SCREW, 11

8JP-RA2A0-00-00

Unavailable

5

SCREW, 8

8JP-RA297-00-00

$3.08

6

CAP, MAIN PIPE

8JP-F111A-10-00

$3.98

7

NUT, HEX. LOCKING

8JP-RA371-00-00

$1.16

8

BOLT, FLG. M6X1.0X

8JP-RA182-00-00

$0.75

9

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

$0.27

10

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

11

GUSSET

8JP-F1113-10-00

Unavailable

12

CLAMP, 3

8JP-RAB05-00-00

Unavailable

13

BRACKET 5

8JP-F112K-00-00

$28.99

14

MEMBER, SIDE 1

8JP-F111J-00-00

$154.99

15

MEMBER, SIDE 2

8JP-F111K-00-00

Unavailable

16

NUT, HEX. LOCKING

8JP-RA372-00-00

Unavailable

17

BOLT, FLG. M8X1.25

8JP-RA185-00-00

Unavailable

18

SCREW, 10-12X1.00

8KC-RA288-00-00

Unavailable

19

CLIP

8JP-F11C2-00-00

Unavailable

20

SCREW, M6X1.0X30

8JP-RA266-00-00

Unavailable

21

BOLT, FLANGE M8-1.25X25

8JM-RA102-00-00

Unavailable

22

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

Unavailable

23

GATE, STEERING

8JP-F3871-10-00

Unavailable

24

PIPE, CROSS, 7

8JP-F119E-10-00

Unavailable

25

PIPE CROSS 8

8JP-F119F-10-00

Unavailable

26

. SUPPORT, SEAT

8JP-F114H-00-00

Unavailable

27

RIVET, 5

8JP-RA514-10-00

Unavailable

28

BOLT, FLG. M8X1.25

8JP-RA187-00-00

Unavailable

29

BOLT, FLG. M10X1.2

8JP-RA197-00-00

Unavailable
