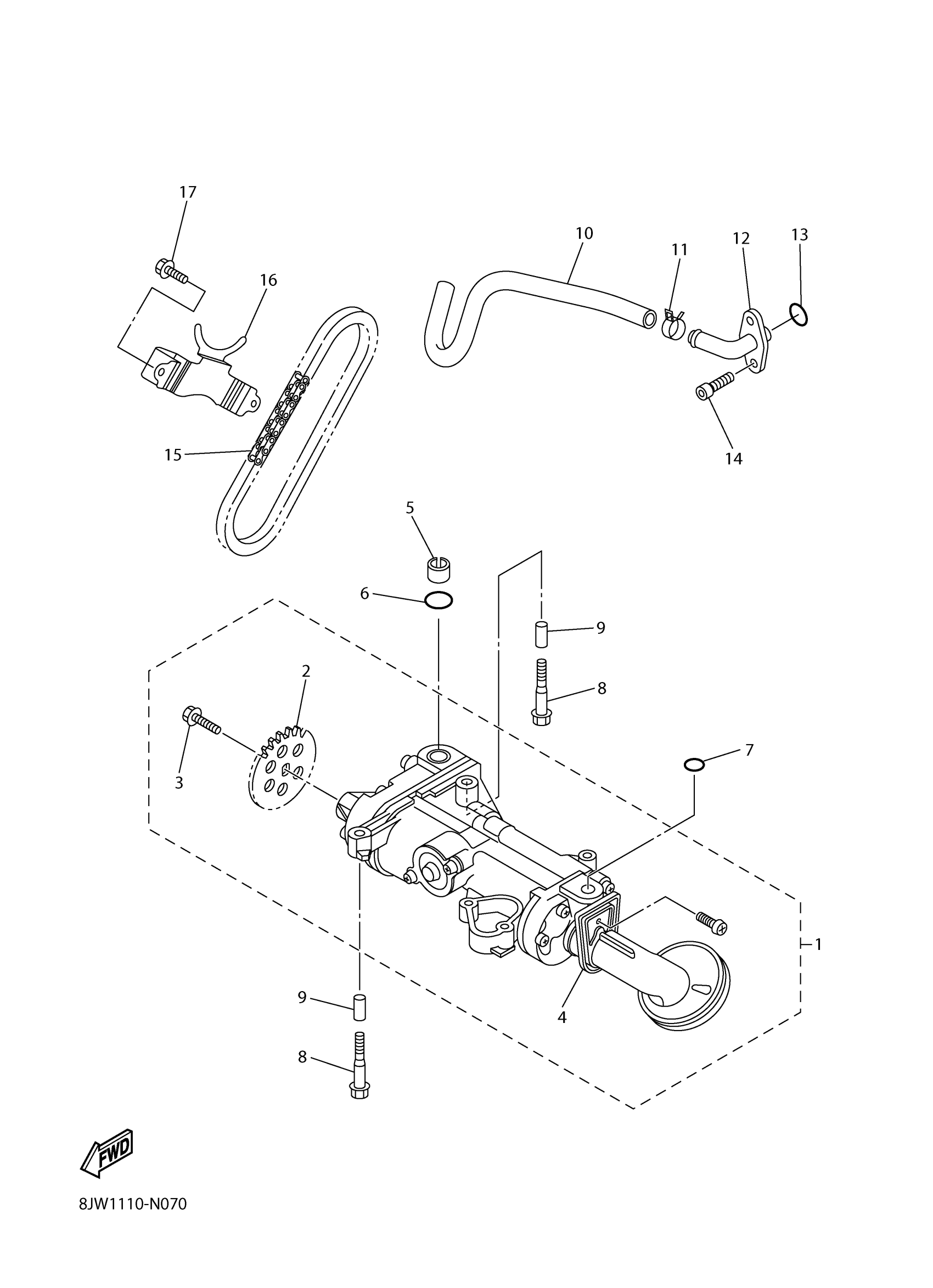

Yamaha SR10LDFR (SRVIPER_L TX DX) 8JX20 2015 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8GL-13300-00-00

$464.55

2

SPROCKET, DRIVEN

4XV-13355-00-00

Unavailable

3

BOLT, FLANGE

90105-06066-00

$5.87

4

SPACER, STRAINER

8ES-13427-00-00

$14.33

5

PIPE

8ES-13284-00-00

$3.26

6

O-RING (1L9)

93210-18322-00

$4.24

7

O-RING (26H)

93210-14579-00

$5.05

8

BOLT, FLANGE

95817-06040-00

$4.24

9

PIN, DOWEL(8AH)

91808-22019-00

$6.39

10

HOSE, OIL 1

8GL-13464-00-00

Unavailable

11

CLIP(34X)

90467-22097-00

$6.65

12

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

$38.47

13

O-RING (26H)

93210-16629-00

$4.65

14

BOLT(3MA)

91312-06016-00

$4.57

15

CHAIN

94580-25064-00

$9.25

16

HOLDER

8ES-13898-01-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable
