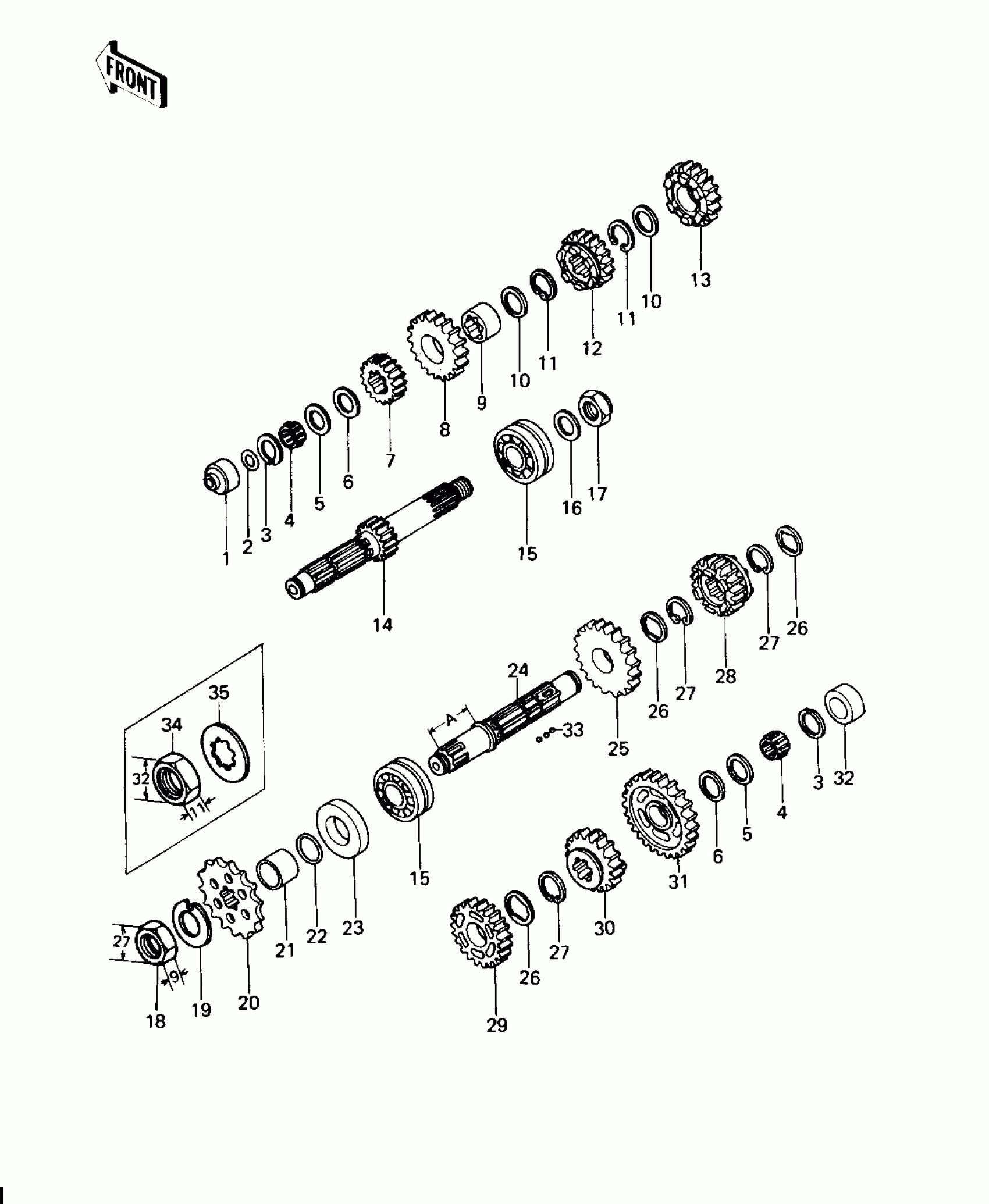

Kawasaki SR TRANSMISSION Diagram

#

Description
Price

1

BUSHING,DRIVE SHAFT

92028-179

Unavailable

2

O RING,7MM

670B1507

$1.28

3

RING-SNAP,20MM

92033-015

$4.26

4

BEARING-NEEDLE,VS20/14A

92046-1030

$25.43

5

WASHER,20.5X30X1,STEEL

92022-112

Unavailable

5

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

5

WASHER,20.3X30X0.7,STEEL

92022-1026

Unavailable

6

WASHER THRUST

92022-113

Unavailable

7

GEAR,INPUT 2ND,19T

13130-041

Unavailable

8

TOP GEAR,DRIVE SHAFT

13129-1045

Unavailable

9

BUSHING,INPUT TOP GEAR

92028-1007

$29.67

9

BUSHING,INPUT TOP GEAR

92028-1007

$29.67

10

WASHER,25.3X30X1

92022-161

$10.65

11

RING-SNAP,24MM

92033-026

$8.79

12

3RD GEAR,DRIVE SHAFT

13129-1032

Unavailable

13

4TH GEAR,DRIVE SHAFT

13129-1044

Unavailable

14

SHAFT,DRIVE

13127-051

Unavailable

15

BEARING-BALL,83993SH2-CS

92045-035

$73.57

16

WASHER

92125-002

Unavailable

17

NUT,20MM

92015-1555

$13.08

18

NUT,20MM

92016-028

$9.91

19

WASHER,LOCK,20MM

92024-044

$13.52

20

ENGINE SPROCKET,16T

13144-063

$87.88

20

SPROCKET-OUTPUT,17T(#530)

13144-1009

Unavailable

21

COLLAR,ENG SPROCKET

92027-288

$39.34

22

RING-O

92055-035

$5.00

23

SEAL-OIL,SC325210

92050-024

$8.17

24

SHAFT,OUTPUT

13128-5005

Unavailable

24

SHAFT,OUTPUT

13128-1012

Unavailable

25

GEAR,OUTPUT 2ND,31T

13129-1047

Unavailable

26

WASHER,TOOTHED,30.5X38X1

92024-069

$6.15

27

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

28

TOP GEAR,OUTPUT SHAFT

13129-1033

Unavailable

29

GEAR,OUTPUT 3RD,28T

13129-1048

Unavailable

30

GEAR,OUTPUT 4TH,26T

13129-1049

Unavailable

31

GEAR,OUTPUT LOW,35T

13129-1046

Unavailable

32

BUSHING,26X34X16.6

92028-180

$28.82

33

BALL-STEEL,5/32

600A0500

$0.81

34

NUT,20MM

92015-1254

$14.90

35

WASHER

92200-1065

$6.63
