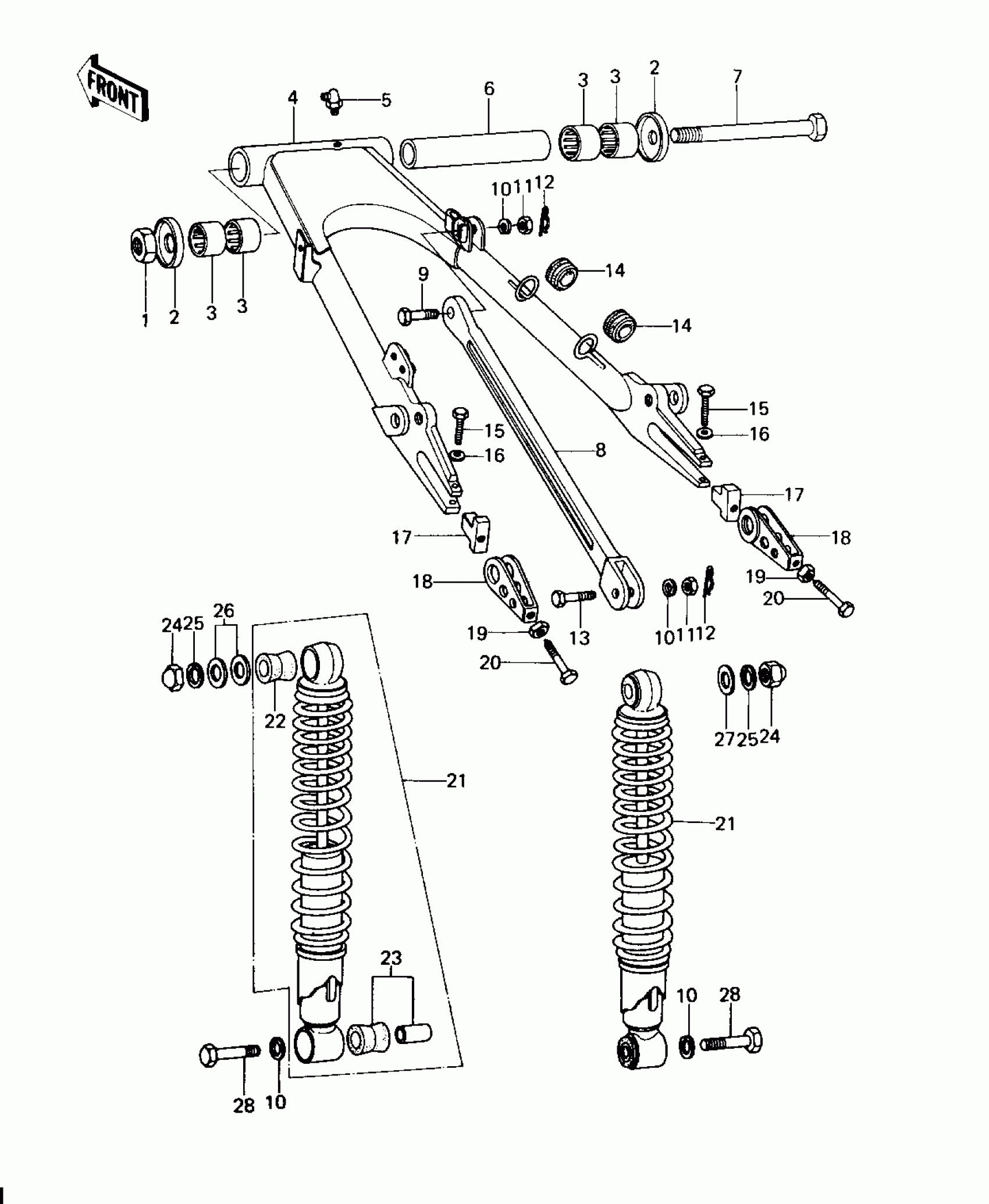

Kawasaki SR SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
1
NUT-SELF LOCKING
92019-012
$25.70
2
CAP,SWING ARM
33035-009
Unavailable
3
BEARING-NEEDLE,HK2216
92046-1115
$20.02
4
ARM-COMP-SWING
33001-1081
$286.03
5
GREASE NIPPLE
92005-002
Unavailable
6
SLEEVE,SWING ARM
42036-1012
Unavailable
7
SHAFT,SWING ARM
33032-050
Unavailable
8
TORQUE LINK,REAR HUB
43007-049
$52.17
9
BOLT,HEX HEAD,10X39
92003-218
Unavailable
10
WASHER SPRING 10MM
461F1000
$0.67
11
NUT-HEX-FINE,10MM
314B1000
$0.67
12
PIN-SNAP,8MM
554A0800
$1.26
13
BOLT,10X47
92001-1145
Unavailable
14
GROMMET,HOSE CLAMP
43064-007
$5.52
15*
BOLT,FLANGED,8X35
92001-1577
Unavailable
16*
WASHER SPRING 8MM
461F0800
$0.40
17*
STOPPER,CHAIN ADJUST
33044-002
Unavailable
18
ADJUSTER,CHAIN
33040-056
Unavailable
19
NUT 8MM
312B0800
$0.58
20
BOLT,8X50
92001-1399
$9.48
21
SHOCK ABSBR RR
45014-1009
$473.04
22
BUSHING,SHOCK ABSORBER
45017-020
Unavailable
23
DAMPER,SHOCKABSORBER,LWR
45017-019
$19.66
24
NUT,CAP,12MM
92020-014
$9.45
25
WASHER-SPRING,12MM
461F1200
$0.96
26
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
27
WASHER,PLAIN,12 X 22
92022-1057
Unavailable
28
BOLT HEX HEAD 10X35
113N1035
$9.14
