Description

Price

1

COVER,SIDE,L.H.C.RED

36001-1010-A5

Unavailable

2

GROMMET

92071-056

$4.26

3

COVER,SIDE,R.H,P.RED

36001-1056-A5

Unavailable

4

MARK,SIDE COVER L.H.

56018-1019

Unavailable

5

MARK,SIDE COVER,R.H.

56018-1022

Unavailable

6

NUT,PUSH,3MM

92018-005

$2.76

6

NUT,PUSH,3MM

92018-005

$2.76

7

CASE,CHAIN

36014-1039

Unavailable

8

BOLT-UPSET,6X16

112G0616

$1.10

9

WASHER SPRING 6MM

461F0600

$0.69

10

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

$0.72

11

COVER,SIDE,L.H,M.BLUE

36001-1055-8E

Unavailable

11

COVER,SIDE L.H,P.RED

36001-1055-A5

$115.20

12

COVER,SIDE,R.H,M.BLUE

36001-1056-8E

Unavailable

12

COVER,SIDE,R.H,P.RED

36001-1056-A5

Unavailable

13

MARK,SIDE COVER

56018-1028

Unavailable

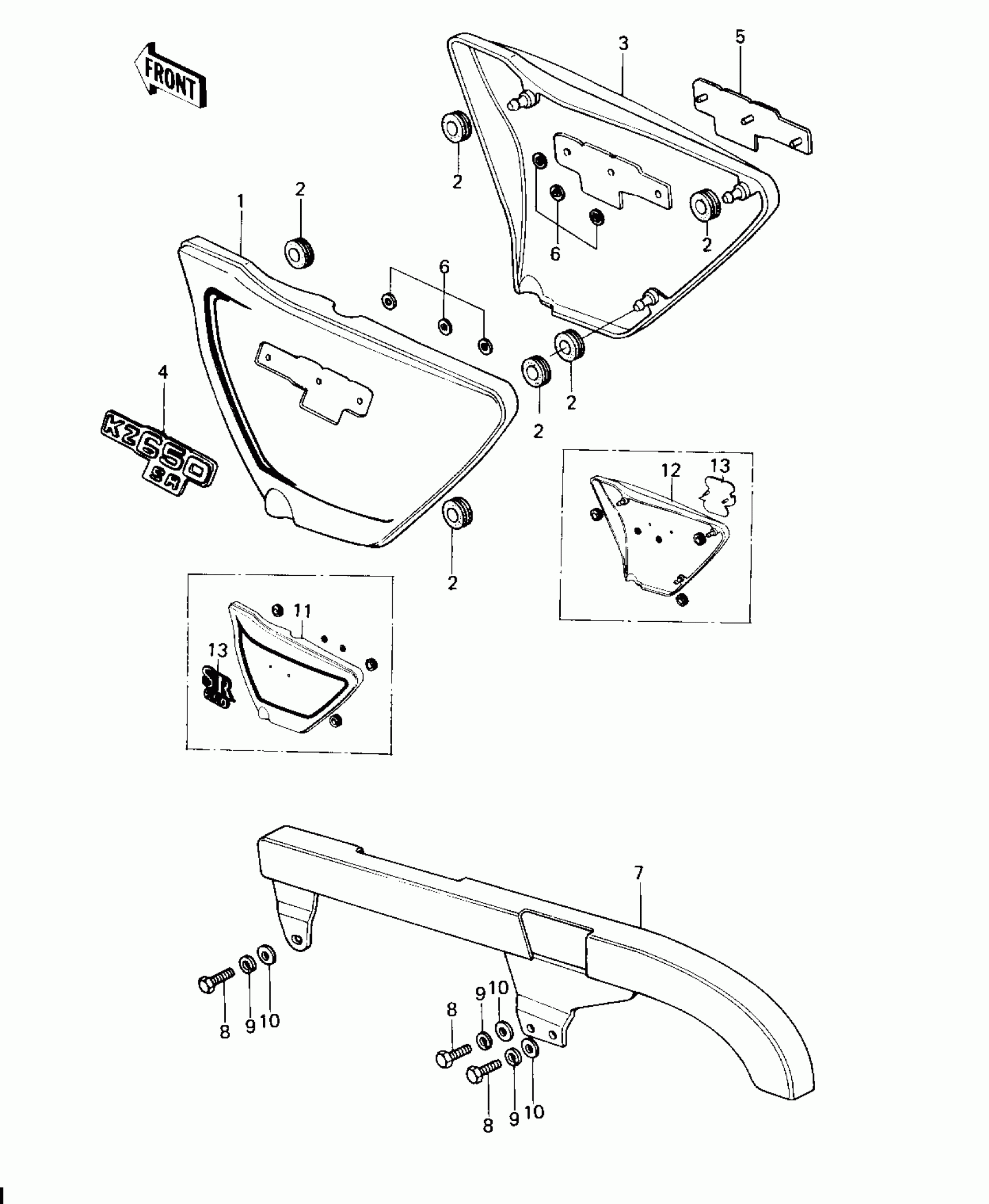

Kawasaki SR SIDE COVERS/CHAIN COVER Diagram

COVER,SIDE,L.H.C.RED

GROMMET

COVER,SIDE,R.H,P.RED

MARK,SIDE COVER L.H.

MARK,SIDE COVER,R.H.

NUT,PUSH,3MM

NUT,PUSH,3MM

CASE,CHAIN

BOLT-UPSET,6X16

WASHER SPRING 6MM

WASHER-PLAIN-SMALL,6MM,BLACK

COVER,SIDE,L.H,M.BLUE

COVER,SIDE L.H,P.RED

COVER,SIDE,R.H,M.BLUE

COVER,SIDE,R.H,P.RED

MARK,SIDE COVER
