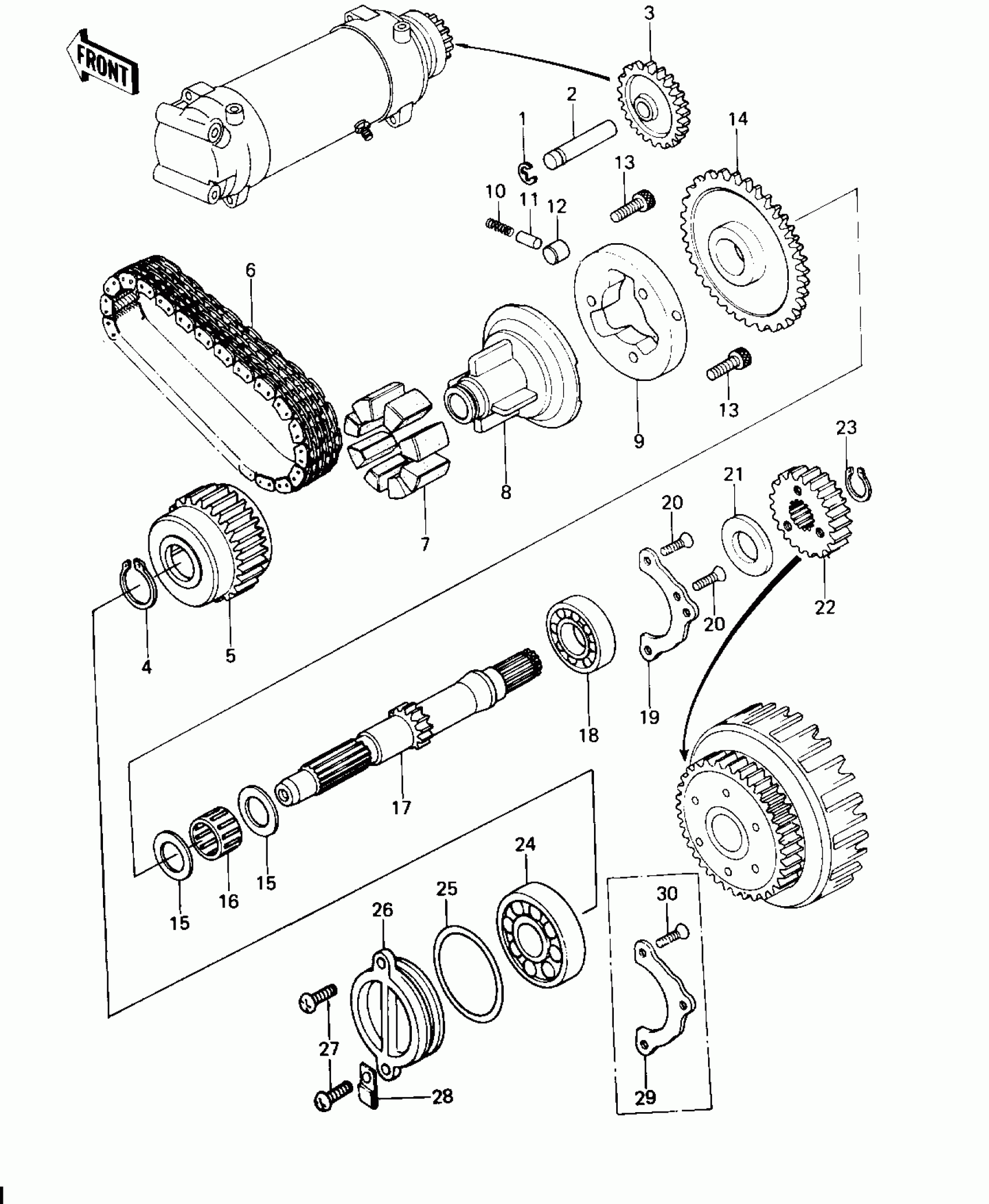

Kawasaki SR SECONDARY SHAFT/STARTER CLUTCH Diagram
#
Description
Price
1
CIRCLIP 12MM
482K0200
$1.25
2
SHAFT,IDLE GEAR
21143-003
$14.64
3
GEAR-SPUR,IDLE,29T
21167-004
$101.58
4
CIRCLIP-TYPE-C,28MM
480J2800
$4.70
5
COUPLING,OUTER,SECONDARY SHAFT
13252-001
$276.49
6
CHAIN,63-139X52L(TUBAKIMOTO)
13122-007
$388.56
7
DAMPER RUBBER
13098-029
Unavailable
8
COUPLING,INNER,SECONDARY SHAFT
13253-001
Unavailable
9
CLUTCH-ASSY-ONEWAY
13193-1012
Unavailable
10
SPRING
92081-110
$4.76
11
PIN
92043-087
$12.76
12
ROLLER,15X13
92122-004
$11.07
13
BOLT-SOCKET,8X12
120P0812
$4.24
14
SPROCKET,STARTER,58T
12046-1032
Unavailable
15
SPACER,STARTER CLUTC
92026-117
Unavailable
16
BEARING-NEEDLE,K253017
92046-056
$23.42
17
SHAFT,SECONDARY
13127-054
Unavailable
18
BEARING-BALL,#6305C3
601B6305
$25.78
19
PLATE-POSITION,SECONDARY SHAFT
14014-1007
$12.05
20
SCREW-CSK-CROS,6X20
221B0620
$2.40
21
COLLAR,23X46X4.5
92027-263
$6.15
22
GEAR,SECONDARY SHAFT,29T
13121-037
Unavailable
23
CIRCLIP-TYPE-C,22MM
480J2200
$5.00
24
BEARING BALL #6304
601B6304
$36.85
25
O RING,46MM
670B3046
$5.96
26
PLUG,SECONDARY SHAFT,52X19
92066-1019
$19.85
27
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
28
CLAMP,WIRING HARNESS
21126-008
$4.73
29
PLATE-POSITION,SECONDARY SHAFT
14014-1007
$12.05
30
SCREW-CSK-CROS,6X20
221B0620
$2.40
