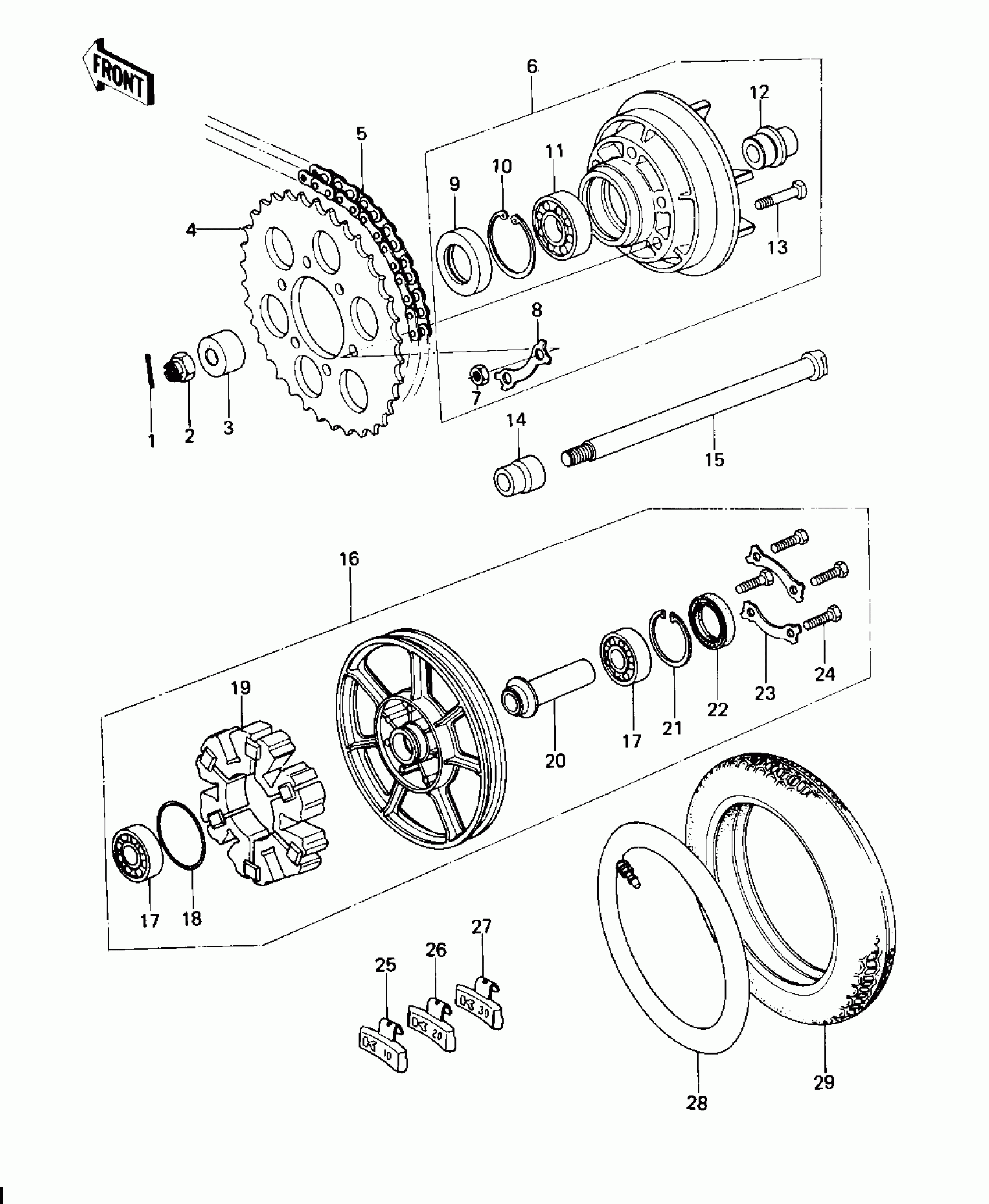

Kawasaki SR REAR WHEEL/TIRE/HUB/CHAIN Diagram
#
Description
Price
1
PIN-COTTER,4.0X35
550D4035
$2.17
2
NUT,16MM
92015-055
$11.50
3
COLLAR,REAR AXLE,22M
92027-1023
Unavailable
4
SPROCKET-HUB,40T,BLAC
42041-1100
$117.22
4
REAR SPROCKET,4/T
42041-1024
$109.40
5
CHAIN,DRIVE,EK50MV-OX102L
92057-1232
Unavailable
6
COUPLING ASSY,R.HUB
42033-1004
$163.76
7
NUT,10MM
42045-005
$7.98
8
PLUG
92068-007
$1.54
9
SEAL-OIL,AJN40627
92050-027
$20.96
10
RING-SNAP,62MM
92033-1044
$11.29
11
BALL BEARING,#6206
601B6206
$22.50
12
SLEEVE,REAR HUB
42036-1013
$45.33
13
BOLT-REAR SPROCKET
92003-087
Unavailable
14
COLLAR,FRONT AXLE
41069-032
$26.55
15
AXLE,RR
41068-1086
$73.40
16
SOLID WHEEL ASSY,REAR
41073-1011
$484.68
17
BEARING-BALL,#6303ZZC3
601B6303ZZ
$40.38
18
O RING,65MM
671B2565
$8.86
19
DAMPER,RR HUB SHOCK,"1000"
42014-033
$111.86
20
COLLAR,REAR HUB BRG.
92027-1047
Unavailable
21
RING-SNAP,47MM
92033-1042
$4.22
22
SEAL-OIL,FORK OUTER
92049-1319
$20.80
23
WASHER,LOCK
92088-023
$11.60
24
BOLT
92001-160
Unavailable
25
BALANCER-WHEEL,10G
41075-1011
Unavailable
26
BALANCER-WHEEL,20G
41075-1012
Unavailable
27
BALANCER-WHEEL,30G
41075-1013
Unavailable
28
TUBE 510-16
41022-1003
$23.61
29
TIRE 510-16 K87 R
41002-1020
$203.55
